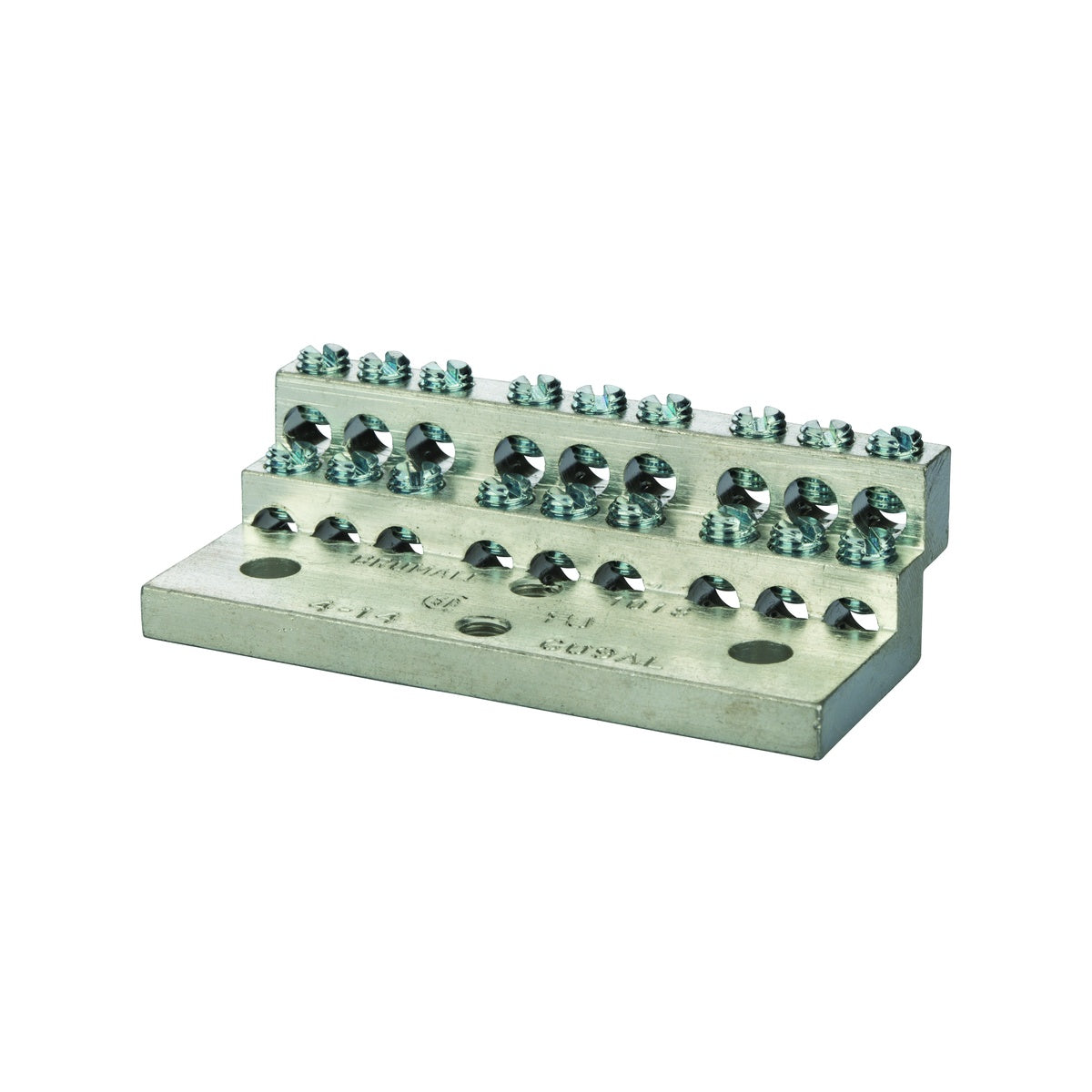

18 Crct Stked 225A Stacked Neutral Bar

This 18 circuit stacked neutral bar is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and switchgear suppliers. It supports conductor sizes from 4 to 14 AWG and is constructed from high-strength 6061T-6 aluminum alloy, ensuring durability and reliable performance in lighting solutions and wire and cable systems.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 1018
• Application: Wire Termination
• Conductor Size: (18) 4-14 AWG Circuits
• Conductor Material: Aluminum
• Material: 6061T-6 Aluminum Alloy
• Dimensions: 3.257 in (Length) x 0.875 in (Height) x 1.5 in (Width)
• Product Weight: 0.1760 lbs
• Electrical Rating: 225A, 600 VAC
• Country of Origin: United States
• Made in USA: Yes

Features

• Stacked wire holes minimize width for a compact design
• One-piece construction for superior mechanical performance
• High strength 6061T-6 aluminum alloy construction
• Supports 18 circuits with wire sizes from 4 to 14 AWG

Downloads & Links

• Spec Sheet
