18 Crct Stacked Neutral
SKU: #303392
Part: #1018M
UPC: 662381008053
18 Crct Stacked Neutral
SKU: #303392
Part: #1018M
UPC: 662381008053
Next day delivery
Description

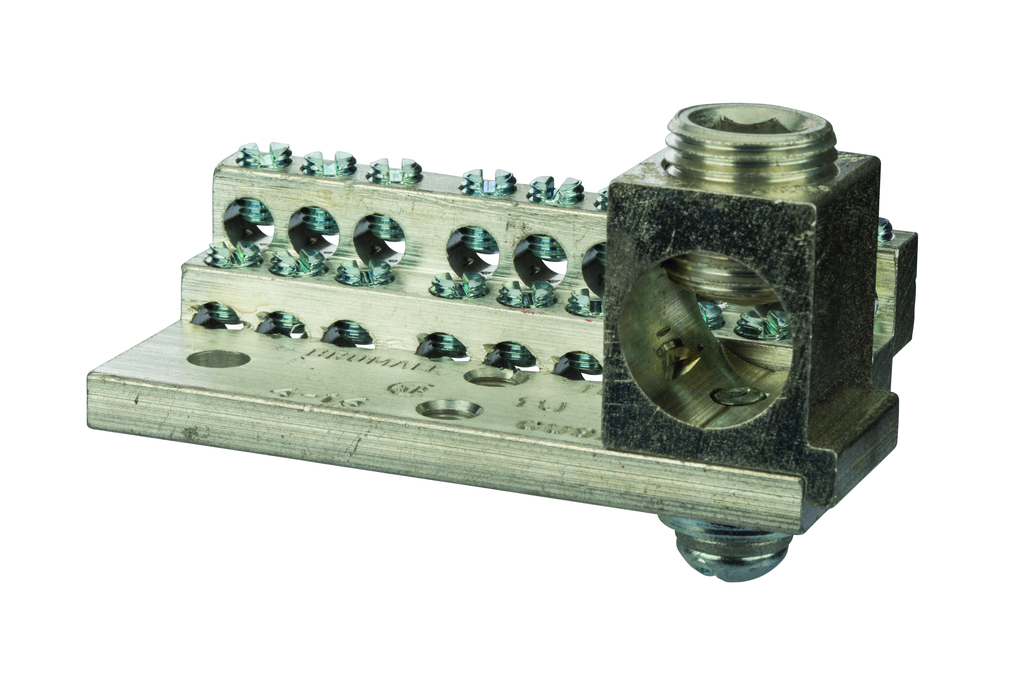

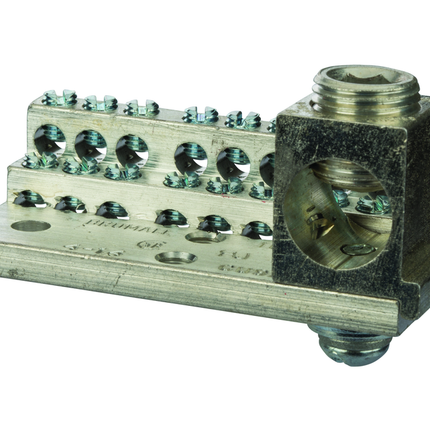

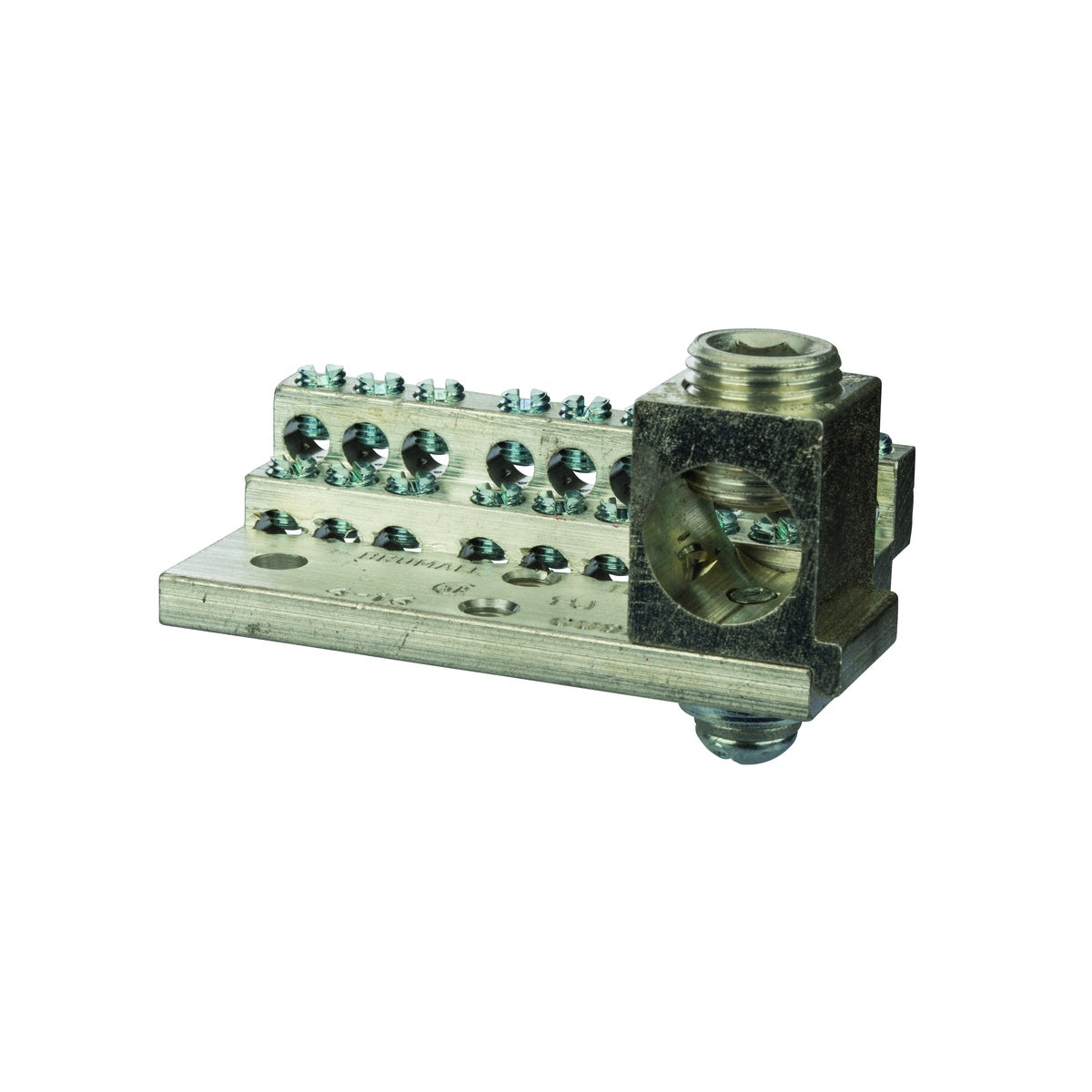

18 Crct Stacked Neutral Bar - NSI 1018M 225A Stacked Neutral Bar
The 18 Circuit Stacked Neutral Bar (NSI 1018M) is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and switchgear suppliers. It supports 225A current capacity with 18 circuits accommodating 4-14 AWG wire sizes and a main lug sized for 350 MCM to 6 AWG conductors. Constructed from high-strength 6061T-6 aluminum alloy, this neutral bar is suitable for lighting solutions and wire and cable installations requiring reliable neutral connections.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 1018M
- Application: Wire Termination
- Conductor Size: (18) 4-14 AWG Circuits, (1) 350 MCM - 6 AWG Main Lug
- Conductor Material: Aluminum
- Material: 6061T-6 Aluminum Alloy
- Dimensions: 3.257 in (Length) x 1.375 in (Height) x 1.5 in (Width)
- Product Weight: 0.25 lbs
- Made in USA: Yes
- Country of Origin: United States
Features
- Compact stacked design minimizes width by stacking wire holes
- One-piece construction for superior mechanical performance
- Supports 225A at 600 VAC
- Accommodates 18 circuits with 4-14 AWG wires and a 350 MCM to 6 AWG main lug
- High strength, corrosion-resistant 6061T-6 aluminum alloy construction
