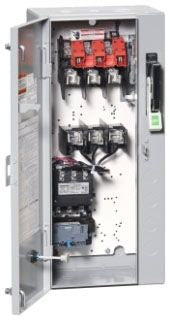

17FUF92BF13M29 Combination Starter - Siemens Heavy Duty Electrical Control

The Siemens 17FUF92BF13M29 is a Combination Starter designed for heavy duty applications requiring reliable across-the-line motor starting. It is suitable for use by electrical distributors and switchgear suppliers in industrial and commercial environments. This starter supports three-phase, 3-pole motor control and is compatible with various NEMA enclosure types, providing rugged protection and durability for motor control circuits.

Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 17FUF92BF13M29
• Product Weight: 40 lbs
• Enclosure Type: NEMA 1 (Standard Width, 3-Phase, 3-Pole)
• Overload Amp Range: 13‚Äì52 A
• Max Horsepower: 15 HP at 230V, 25 HP at 460V
• NEMA Size: 2
• Half Size: 1¬æ
• Catalog Number (NEMA 1 Enclosure): 17FUF92B*
• Coil Voltage Code: F (120V @ 60Hz or 110V @ 50Hz)

Features

• Combination Starter with solid state overload protection
• Designed for heavy duty across-the-line motor starting
• Standard width enclosure suitable for industrial environments
• Rugged industrial design meeting NEMA and UL standards
• Dual voltage/frequency coil compatible with 50/60 Hz operation
• Gravity dropout assisted by stainless steel springs for reliable contact opening
• 45-degree wedge action contacts for reduced tracking and extended contact life
• Self-rising pressure-type control terminals for secure wiring
• Molded coil sealed in epoxy for moisture resistance and durability
• Field modification kits available for auxiliary contacts, pilot lights, and other accessories
