Features

• The 170 Series Mortise Type Door Openers are Long Service Devices, Providing the Security and Convenience of Remote Control Door-Lock Operation
• These Units Flush Mount in Place of the Regular Door Strike Plate
• With the Non-Reverse Acting Units, the Door Remains Locked Until the Opener is Electrically Actuated by a Remote Contact Device
• For Reverse Acting Units, the Door Remains Unlocked
• When Energized Through a Timer or Manual Switch, the Unit Keeps the Door Locked

Additional Information

• Application Apartment, Bank, Control System, Door Interlocking, Industrial Building, Office, School

Specifications

• Type: Mortise Type Electric Door Opener
• Voltage Rating: 8 to 16 VAC, 4 to 6 VDC
• Current Rating: 1.3 to 2.7 Ampere
• Transformer Type: Model 88-50/598
• Face Plate: Painted Brass
• Mounting: Flush

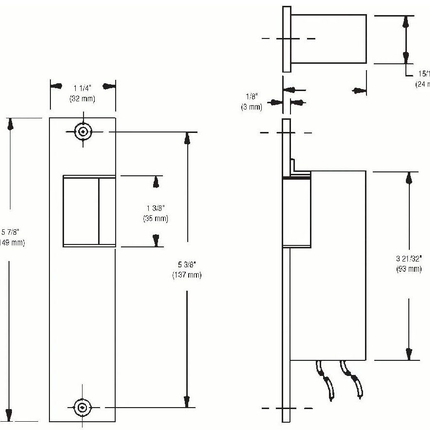

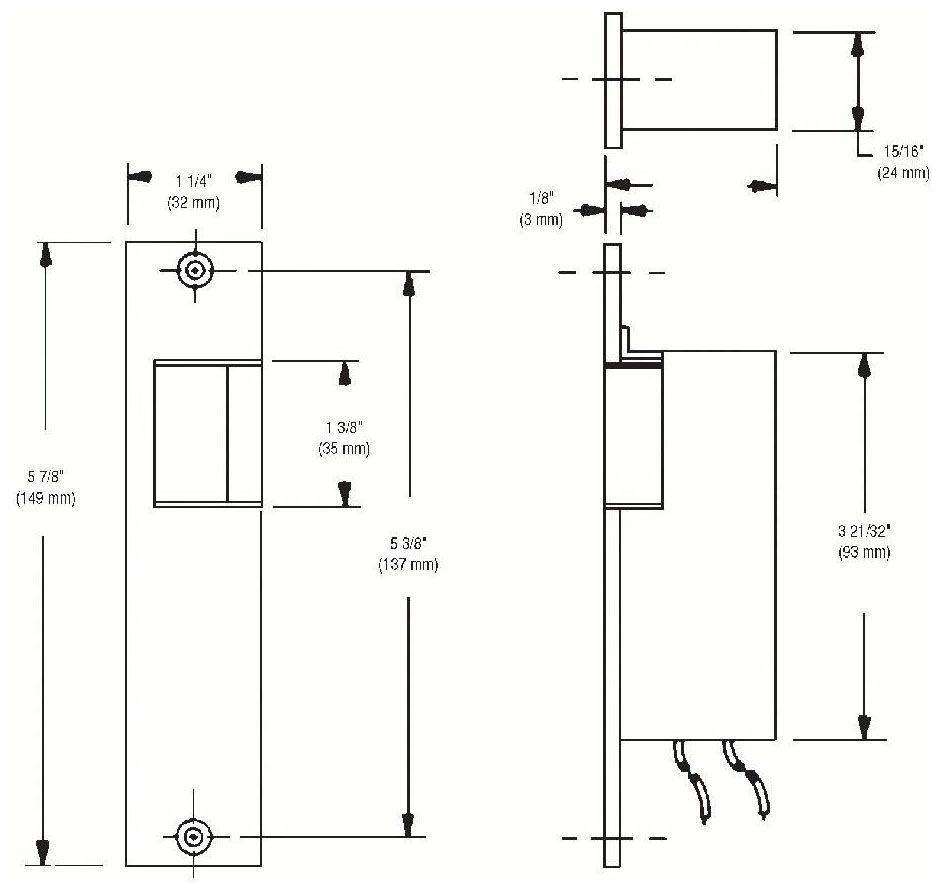

• Size: 1-9/16 Inch W x 15/16 Inch D x 5-7/8 Inch H
• Used On: Right/Left Hand Door
• Series/Model: 177
