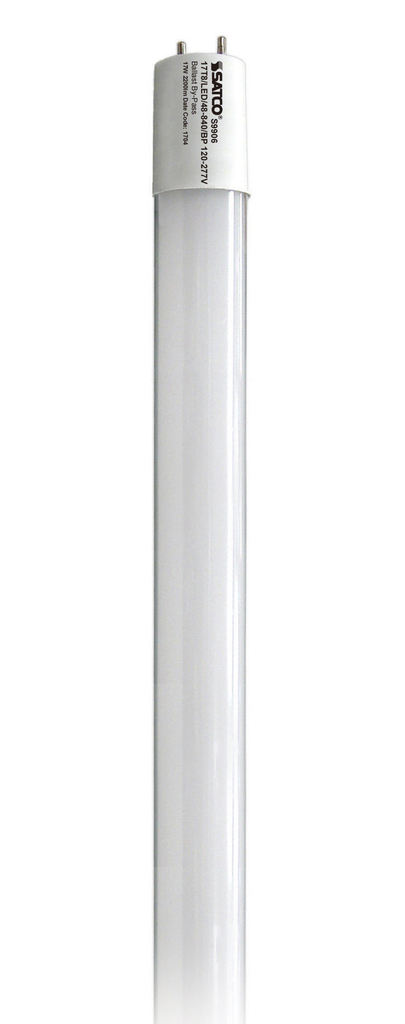

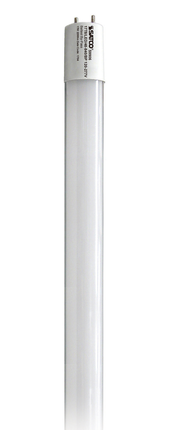

17 Watt T8 LED Tube Light – Energy-Efficient Lighting Solution

This 17 Watt T8 LED tube light is designed for linear lighting applications, providing 2200 lumens of cool white light at 4000K color temperature. It features a medium bi-pin base and operates on a Type B ballast bypass system, making it suitable for electrical distributors and lighting solutions requiring direct wiring without a ballast. The product is ideal for commercial and industrial environments, compatible with wire and cable installations, and supplied by a reputable switchgear supplier.

Specifications

• Manufacturer Part #: S9906
• Wattage: 17W
• Voltage Range: 120V-277V
• Fluorescent Equivalent: 32W
• Base Type: Medium Bi Pin (ANSI Base G13)
• Length: 48 In.
• Finish: Frosted Lens
• Color Temperature: 4000 Kelvin (Cool White)
• Lumens: 2200 lumens
• Beam Spread: 210°
• CRI: 82
• Dimmable: No
• Average Rated Life: 50,000 hours
• Operating Temperature: -20°C to +45°C
• Power Factor: 0.9
• Operating Frequency: 50/60 Hz
• Weight: 0.44 lb.
• Housing Color: White
• Technology: LED
• Lamp Type: Linear
• Safety Listing: cULus Classified
• Location Rating: Damp
• DLC Approved: Yes (DLC ID PC36S179)
• RoHS Compliant: Yes
• FCC Compliant: Yes
• NSF Approved: Yes

Features

• Type B Ballast Bypass for direct wiring and energy savings
• Frosted lens finish for uniform light distribution
• Long life LED technology reduces maintenance and replacement costs
• Non-dimmable design suitable for consistent lighting applications
• Wide voltage compatibility (120V-277V) for flexible installation
• Certified for damp locations, expanding installation options
• Energy-efficient alternative to traditional 32W fluorescent tubes
• 5 Year Limited Warranty for reliable performance

Downloads & Links

• Spec Sheet
