17.92 Watt miniature; T5; 1000 Average rated hours; Mini Wedge base; 12.8 Volt
SKU: #262091
Part: #S6945
UPC: 045923069451
17.92 Watt miniature; T5; 1000 Average rated hours; Mini Wedge base; 12.8 Volt
SKU: #262091
Part: #S6945
UPC: 045923069451
Description

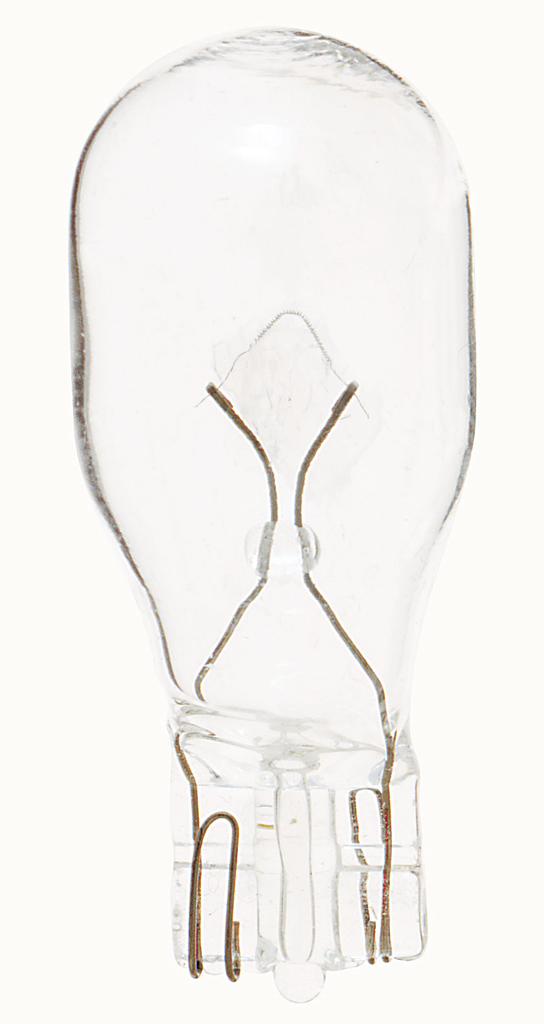

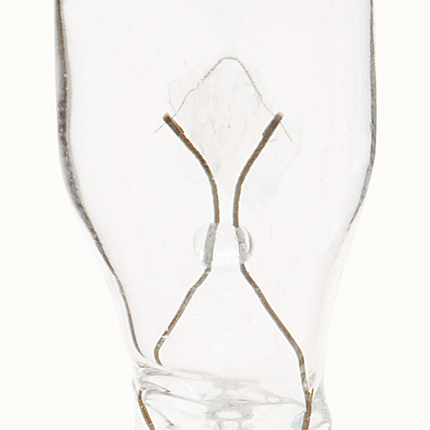

17.92 Watt miniature T5 bulb - Satco lighting solutions
This 17.92 watt miniature incandescent bulb with a T5 shape is designed for precise lighting applications. Featuring a mini wedge base and operating at 12.8 volts, it is suitable for use in electrical distribution and lighting solutions requiring compact, reliable illumination. The clear finish and 360-degree beam spread provide uniform light output. This product is ideal for wire and cable assemblies or as a component in switchgear supplied by electrical distributors.
Specifications
- Manufacturer: Satco
- Manufacturer Part #: S6945
- Wattage: 17.92 W
- Voltage: 12.8 V
- Amperage: 1.4 amperes
- Shape: T5
- Base: Mini Wedge
- Beam Spread: 360°
- Finish: Clear
- Lens Color: Clear
- Average Rated Life: 1000 hours
- Technology: Incandescent
- Lamp Type: Miniature
- Maximum Overall Length (MOL): 1.5 inches
- Maximum Overall Diameter (MOD): 0.63 inches
- RoHS Compliant: Yes
- California Status: Lawful for sale
- Dimmable: No
Features
- Miniature design suitable for compact lighting fixtures
- Clear finish and lens for optimal light transmission
- 360-degree beam spread for uniform illumination
- Reliable incandescent technology for consistent performance
- RoHS compliant, meeting environmental safety standards
- Limited average rated hour warranty ensuring quality assurance
