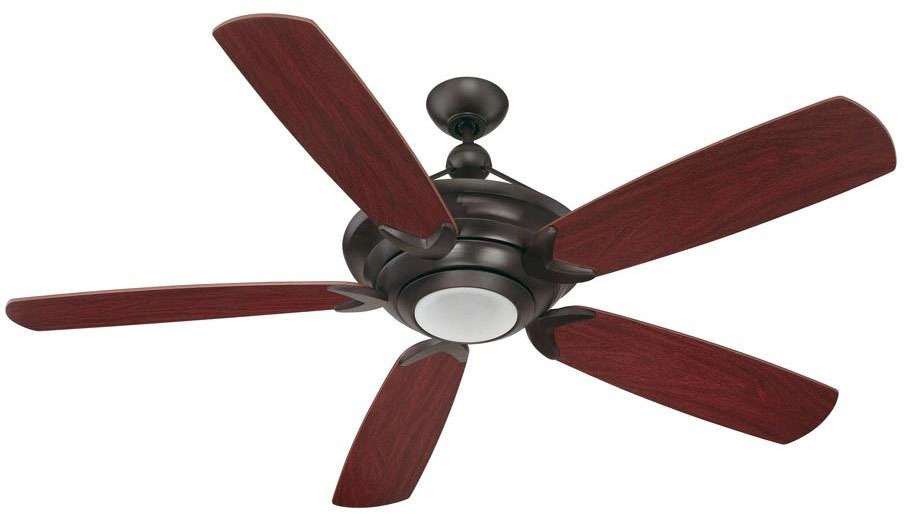

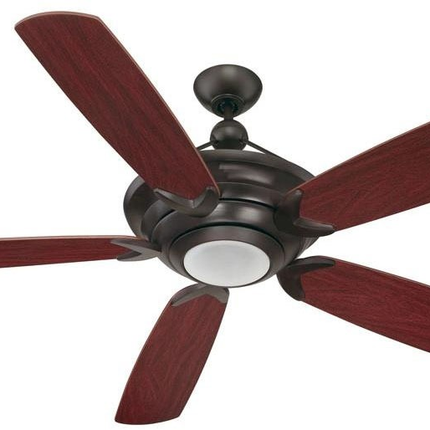

168167 Ceiling Fan - Indoor Lighting Solutions

The 168167 Ceiling Fan by Craftmade is designed for indoor applications, offering efficient air circulation combined with integrated lighting. It features a 60-inch blade sweep with reversible custom blades finished in oiled bronze and mahogany, suitable for residential or commercial environments. This ceiling fan is ideal for electrical distributors and lighting solutions providers seeking reliable, UL-certified products that enhance indoor comfort and aesthetics.

Specifications

• Model Number: VS600B5
• Blade Sweep: 60"
• Number of Blades: 5
• Blade Pitch: 13.5°
• Motor Size: 188 mm x 25 mm
• Power Rating: 74 Watts (73 Watts at high speed per spec sheet)
• Current Rating: 0.62 Amp
• Voltage Rating: 120 Volt
• Speed Rating (RPM): 64/92/120 (Low/Medium/High)
• Air Flow Rating: 5,328 CFM
• Air Flow Efficiency: 73 CFM/Watt
• Product Weight: 37.59 lbs
• Shipping Weight: 37.59 lbs
• Blade Length: 60"
• Number of Speeds: 3 (Low/Medium/High)
• Motor Type: AC
• Blade Material Finish: Oiled Bronze with reversible mahogany finish
• Includes 4.5" Downrod
• UL Certified for Canada and US

Features

• Heavy-duty, 3-speed reversible motor
• Reversible custom blades included
• Integrated indirect uplight (6x 15W candelabra bulbs) and integrated downlight (1x 75W JD halogen bulb)
• Includes both remote and wall controls for convenient operation
• Patented tripod mounting system designed for ceilings with minimum height of 9 feet
• Optional blank light lens cover included
• Lifetime limited warranty
