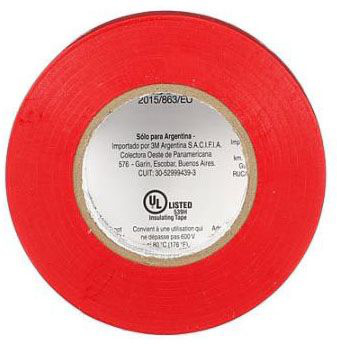

165PR4A Electrical Tape - 3M Temflex Vinyl Electrical Tape 165

3M Temflex Vinyl Electrical Tape 165 is a multi-purpose, general use grade electrical insulating tape designed for applications involving wire and cable insulation, harnessing, bundling, and marking. Manufactured with a PVC backing and a solvent-free rubber-based adhesive, this tape offers flame retardant and cold resistance properties suitable for industrial, commercial, and residential environments. It complies with UL510, CSA C22.2 No.197, and IEC 60454-3-1 standards, making it a reliable choice for electrical distributors, lighting solutions, and switchgear suppliers requiring quality vinyl electrical tape with minimal bulk and moisture resistance.

Specifications

• Material: PVC (Polyvinyl Chloride)
• Width: 3/4 Inch
• Length: 60 Foot
• Color: Purple
• Thickness: 6 mils ¬± 0.6 mil (0.152 ¬± 0.015 mm)
• Adhesive: Rubber-based
• Voltage Rating: Up to 600V (UL) / 1000V (CSA)
• Temperature Rating: -10¬∞C to 80¬∞C (UL), -7¬∞C to 90¬∞C (CSA)
• Tensile Strength: Minimum 2200 psi (13.2 lb/in)
• Elongation: Minimum 200%
• Flame Retardant and Cold Resistant (UL510 Pass)
• UL Listed: UL 510 Standard ‚ÄúInsulating Tape‚Äù
• CSA Certified: CSA-C22.2 No.197
• IEC Classification: IEC 60454-3-1 Type 5
• Product Weight: 0.0800 lbs

Features

• Nominal 6-mil thick vinyl electrical tape with elastic backing for conformability
• Resistant to moisture and varying weather conditions for indoor and weather-protected outdoor use
• 100% solvent-free manufacturing process with no volatile organic compounds (VOCs)
• Provides mechanical protection with minimum bulk for wire pulling, fishing, and cable harnessing
• Suitable for marking safety areas, phase coding, and cable jacket repair
• Compatible with rubber splicing and mastic tapes for LV/MV/HV joints and splices
• Available in 10 colors to support diverse electrical applications
• Five-year shelf life when stored in controlled humidity conditions
