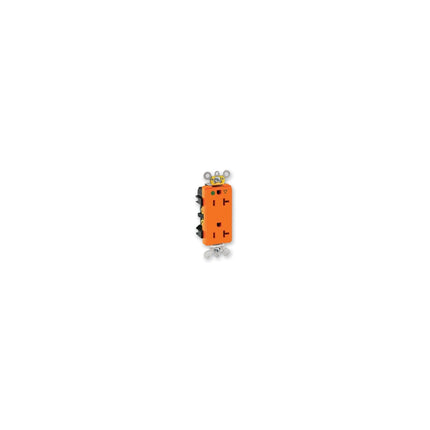

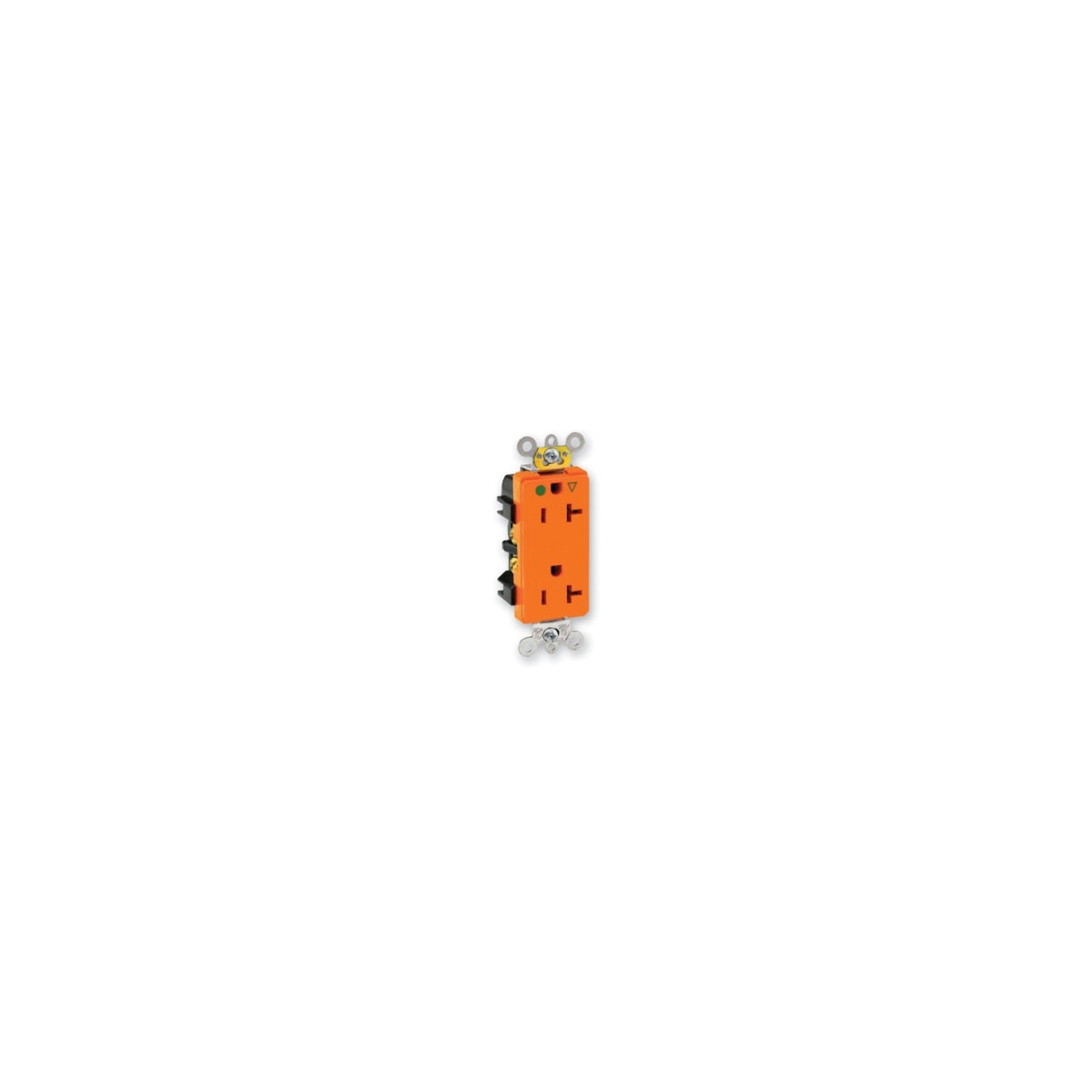

16362-IG, 20 Amp Hospital Grade Receptacle

The Leviton 16362-IG is a 20 amp hospital grade receptacle designed for high-abuse tolerance environments such as healthcare facilities, manufacturing plants, and schools. This electrical component is suitable for use by electrical distributors and switchgear suppliers requiring reliable and safe wiring solutions with isolated grounding capabilities.

Specifications

• Amperage: 20 amperes
• NEMA: 5-20R
• Material: Nylon
• Color: Orange
• Grade: Hospital
• Grounding: Isolated Ground
• Number of Poles: 2
• Number of Wires: 3
• At Rated Voltage: 1 horse power
• Dielectric: 2000 volts
• Operating Temperature: -40 To 60 degrees celsius
• Flammability Class: Rated V-2 Per UL94
• ANSI Base: C-73
• Product Weight: 0.2490 lbs

Features

• Undergoes stringent UL testing for continuous, safe operation
• High-abuse tolerance suitable for demanding applications
• Isolated ground to reduce electrical noise and improve safety
• Durable nylon construction for enhanced durability
• Bright orange color for easy identification in electrical installations
