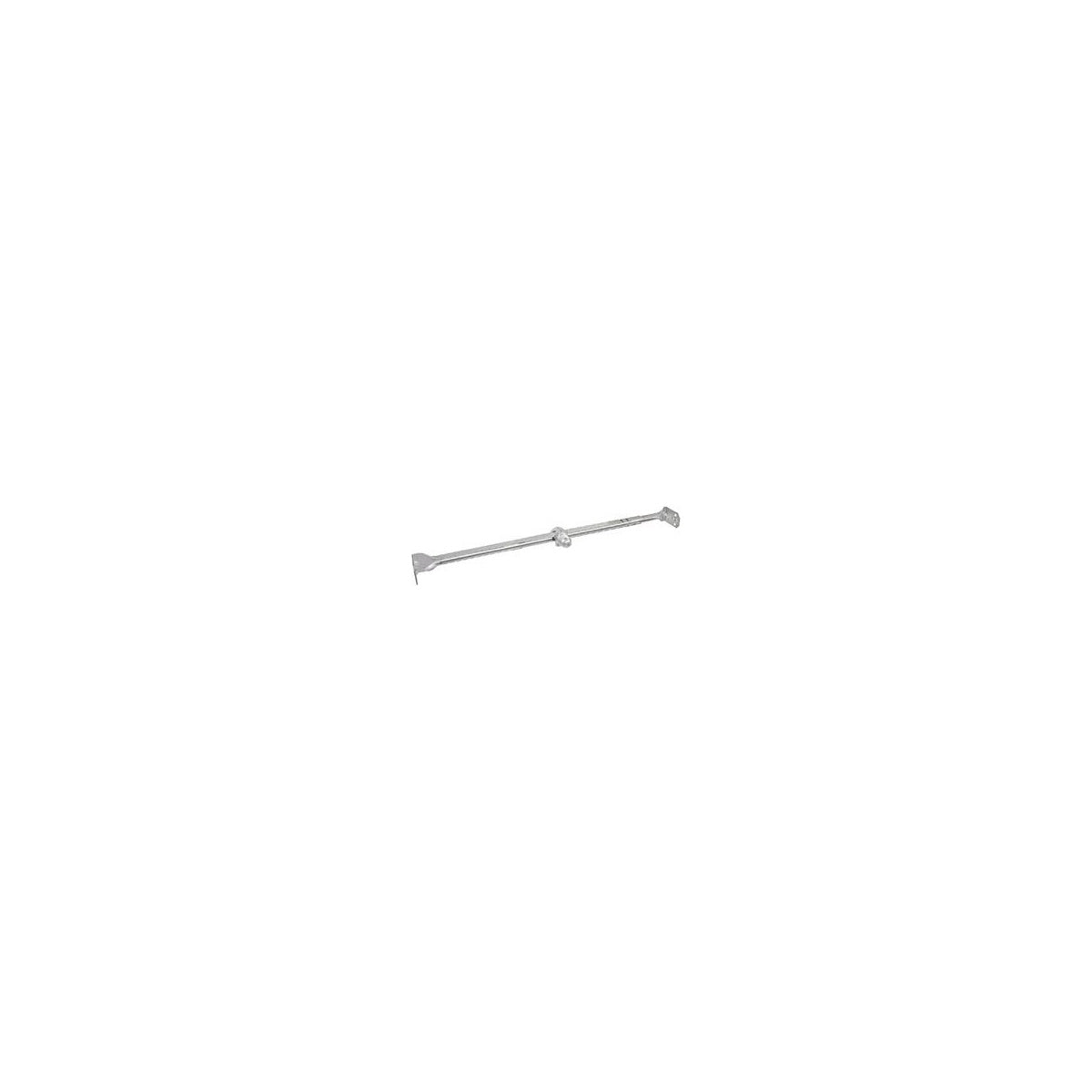

16-24IN Adj Box Bar Hngr Adjustable Bar Hanger

The 16-24IN Adjustable Box Bar Hanger by Southwire is designed for securely mounting electrical boxes between ceiling joists or wall studs. This galvanized steel bar hanger supports efficient installation in residential or commercial electrical wiring applications, making it suitable for electrical distributors and lighting solutions providers requiring reliable mounting hardware.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: BHA1
• Material: Galvanized steel
• Adjustable Length: 16" to 24"
• Maximum Recommended Static Fixture Support: 50 lbs. on 16" centers
• Dimensions (L x W x H): 45.12 in x 45.12 in x 40.12 in
• Product Weight: 1.12 lbs
• UPC: 785592983497
• Certification: UL Listed

Features

• Box clip installs in 1/2" knockouts located on the bottom of boxes
• Design allows electrical boxes to be installed anywhere along the length of the bar
• Includes box lock clip and threaded stud for secure mounting
• Adjustable length accommodates varying joist or stud spacing
• Not designed or intended for ceiling fan support

Downloads & Links

• Spec Sheet
