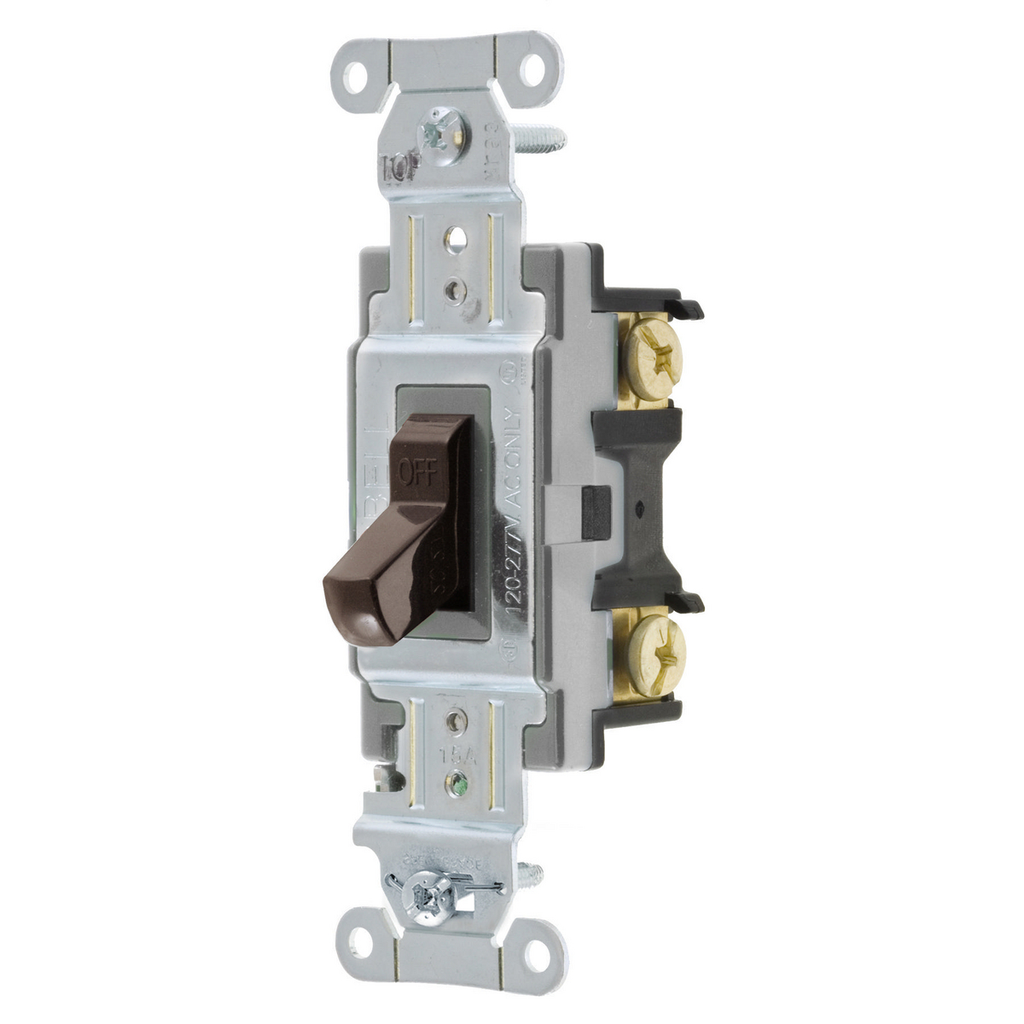

15A Single Pole Toggle Switch, 120/277V, Brown – Commercial Grade Toggle Switch

This 15A Single Pole Toggle Switch is designed for commercial applications, providing reliable switching for lighting and electrical circuits. Manufactured by Hubbell Wiring Device-Kellems, it is suitable for indoor dry environments and is side wired for secure connections. Ideal for electrical distributors and lighting solutions providers, this switch meets industry standards for performance and durability.

Specifications

• Application: Commercial Spec Grade
• Current Rating: 15 A
• Voltage Rating: 120-277 VAC
• Number of Poles: Single Pole
• Connection: Side Wired Only
• Material: Nylon
• Mounting: Screw Mount
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Operating Temperature: Maximum continuous 75°C, minimum -40°C without impact
• Width: 1.90 in
• Product Weight: 0.15 lb
• Color: Brown
• Contact Configuration: Two Position
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Manufacturer Part #: CS115

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse-resistant nylon toggle for durability
• Steel, zinc-plated bridge provides corrosion resistance
• Auto grounding mounting for safety
• UL Listed and RoHS compliant
• Terminal accommodations for #14 AWG to #10 AWG solid and stranded copper wire
