15A Receptacle/Outlet by Leviton – Electrical Distributor Lighting Solutions

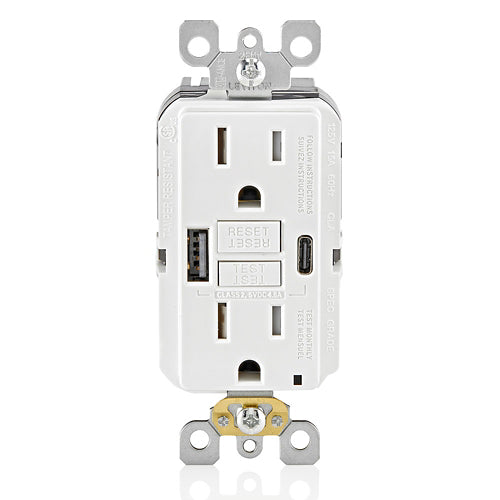

The Leviton 15A Receptacle/Outlet (Manufacturer Part # GUAC1-W) is a tamper-resistant, self-test GFCI combination USB in-wall charger designed for residential and commercial applications. It provides reliable ground-fault protection while integrating USB charging ports to support a variety of USB-powered devices. This device is suitable for electrical distributors and lighting solutions providers requiring a compact, code-compliant outlet with advanced safety features and USB charging capability.

Specifications

• Rating: 15A-125VAC, 60Hz
• USB Port Power: 24W (4.8A total)
• Receptacle Type: Tamper-resistant GFCI with leads
• Manufacturer Part Number: GUAC1-W
• Product Weight: 1.0000 lb
• UPC: 078477996089

Features

• Self-Test GFCI with patented Reset Lockout to prevent reset if device is damaged or miswired
• Two high-powered USB charging ports with 24W total power output
• Smart chip optimizes charging requirements of individual devices
• Built-in overcurrent protection and internal thermo regulator to prevent damage and overheating
• USB ports tested to withstand over 10,000 insertions
• Compatible with USB 3.1, 3.0, 2.0, and 1.1 devices; no data transfer capability
• Tamper-resistant receptacles for enhanced safety
• Impact-resistant thermoplastic cover and body with silver alloy contacts
• Status Indicator Light for power and protection status, including line/load reversal indication
• Meets NEC requirements for use with While-In-Use Outdoor Covers
• Installation requires copper or copper-clad wire; not for aluminum wiring
• Limited Two-Year Product Warranty
