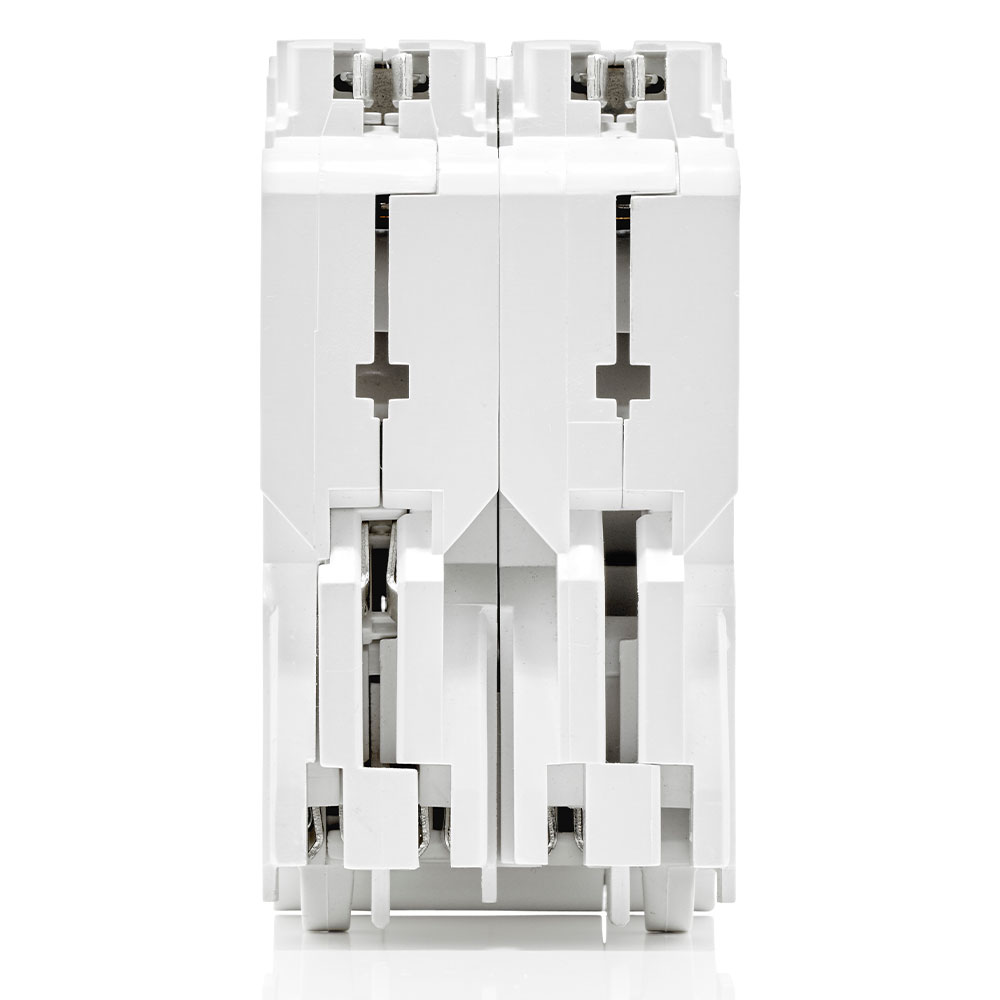

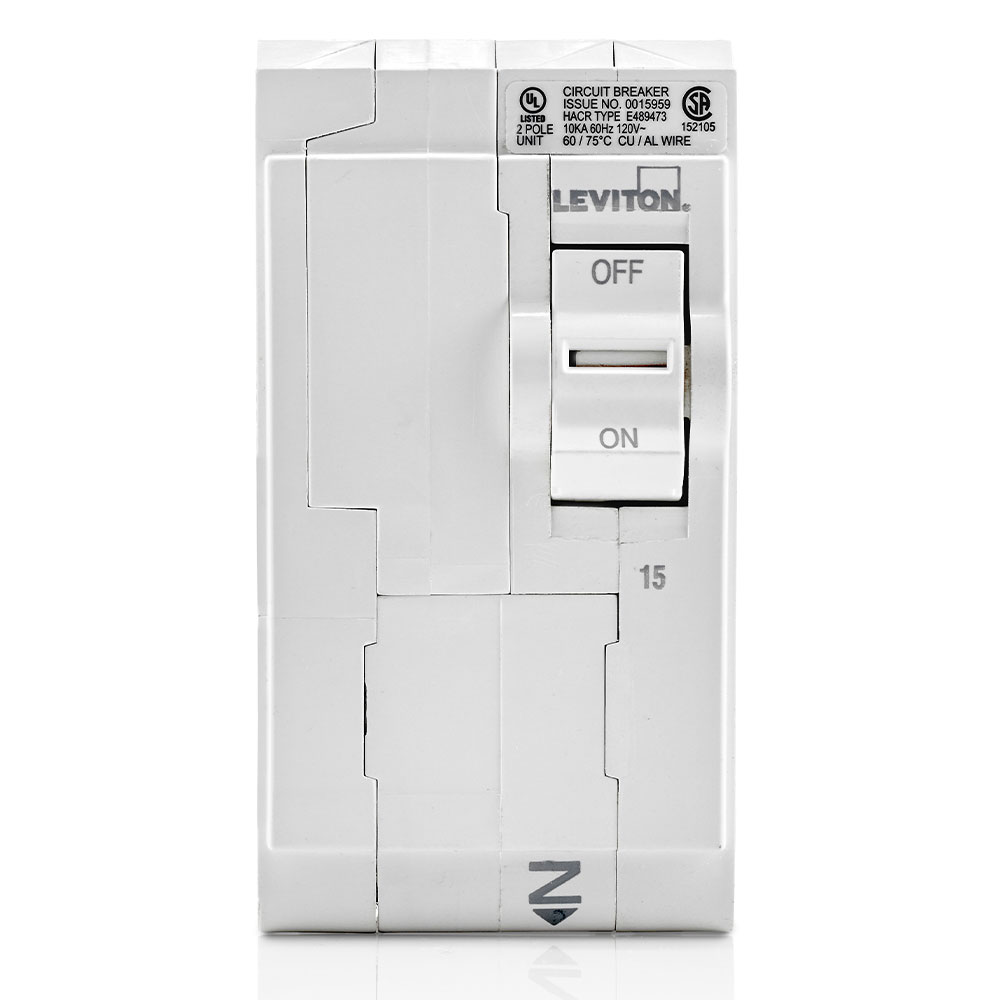

15A 2-Pole Standard Hydraulic Magnetic Branch Circuit Breaker
SKU: #32198
Part: #LB215
UPC: 078477856529
15A 2-Pole Standard Hydraulic Magnetic Branch Circuit Breaker
SKU: #32198
Part: #LB215
UPC: 078477856529
Next day delivery
Description
15A 2-Pole Standard Hydraulic Magnetic Branch Circuit Breaker – Electrical Distributor
The 15A 2-Pole Standard Hydraulic Magnetic Branch Circuit Breaker by Leviton is designed for reliable protection in both 120/208V and 120/240V applications. This circuit breaker features hydraulic magnetic trip technology, offering precise trips based on current even in extreme temperatures ranging from -40°C to 85°C (-40°F to 185°F). Ideal for harsh climates, it supports quick plug-on installation, enhancing efficiency for electrical distributors, lighting solutions, wire and cable setups, and switchgear suppliers.
- Manufacturer: Leviton
- Manufacturer Part Number: LB215
- Amperage: 15 amperes
- Number of Poles: 2
- Voltage Compatibility: 120/208V and 120/240V
- Breaker Technology: Hydraulic Magnetic
- Short Circuit Current Rating: 10 KA, Series Rated 22KA with Leviton Main Breaker
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Dimensions: 3.9" H x 2.0" W x 3.1" D
- Weight: 0.85 lbs (Double Pole)
- Wiring: All plug-on installation up to 60A
- Standards & Certifications: CSA-C22.2 No. 5-02, EMC Compatible, FCC, RoHS, UL 489 HACR rated, UL 943 (GFCI) and UL 1699 (AFCI) where applicable
- Country of Origin: China
Specifications
- Hydraulic Magnetic trip technology for precise current-based trips without re-rating in extreme temperatures
- All plug-on design allows wiring the entire panel at rough-in without circuit breakers present, speeding installation
- Intuitive diagnostics with line-side powered LEDs that stay lit after tripping to identify fault type
- Color indicators in rocker handles display operational status at a glance (ON/OFF/Tripped)
- Supports both 120/208V and 120/240V applications
- Compatible with Leviton Load Center systems and supports standard, AFCI, GFCI, AFCI/GFCI, and GFPE breaker types
- 10-Year Limited Warranty (2 years for electronic components)
