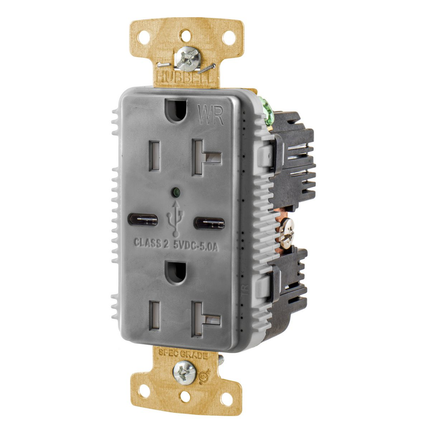

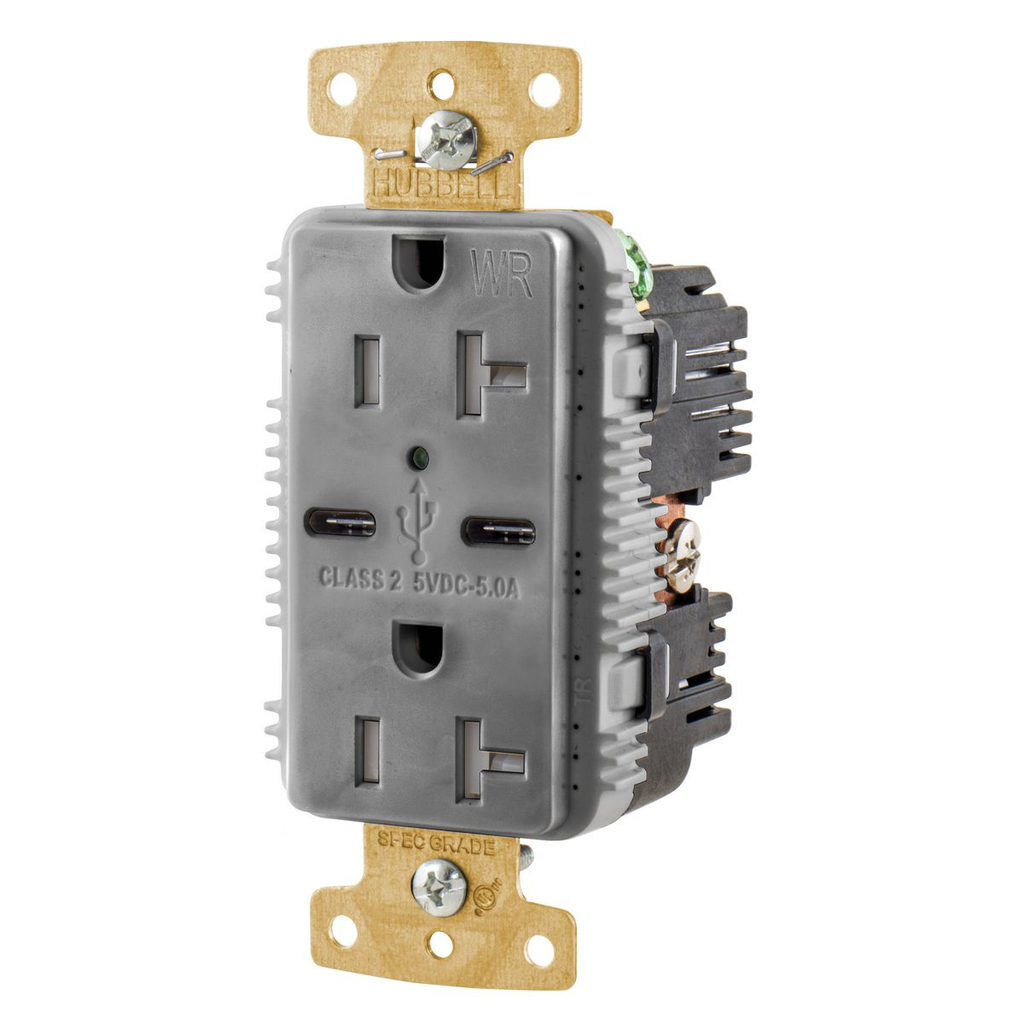

15A/125V Tamper Resistant/Weather Resistant Duplex Receptacle & Type C USB Port, Gray – USB Charger Receptacle

This Hubbell 15A/125V tamper resistant and weather resistant duplex receptacle features integrated Type C USB ports, designed for commercial and residential electrical distributors seeking reliable power and charging solutions. Ideal for applications requiring both electrical outlets and USB charging capabilities, this device supports a 20 amp circuit and is suitable for outdoor use when installed with proper enclosures. It combines safety, durability, and convenience in one compact unit, meeting NEC 406.9 requirements for weather resistance.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: USB20C5GYWR
• Electrical Rating: 15A/125V AC, 20 amperes circuit rated
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Color: Gray
• Width: 2.1 in
• Product Weight: 4.0 lbs
• Country of Origin: China
• UPC: 883778309397

Features

• Weather and tamper resistant commercial grade construction
• Two Type C USB ports with 5 Amp, 5 Volt high-power output
• USB ports rated for 10,000 charge-cable insertion cycles
• Green LED indicator for power status
• Brass triple-wipe contacts and stainless steel terminal screws for durability
• Auto-ground staple and mounting strap constructed of stainless steel and brass
• Certified to UL498 and UL1310 standards
• Complies with USB Battery Charging Specification BC1.2
• Meets NEC Section 406.9 making it suitable for outdoor use with proper enclosure
• Operating temperature range: -40°C to 75°C continuous
• Flammability rating UL 94V-2
