15A/125V Tamper Resistant/Weather Resistant Duplex Receptacle & Type C USB Port, Black - USB Charging Power Outlet

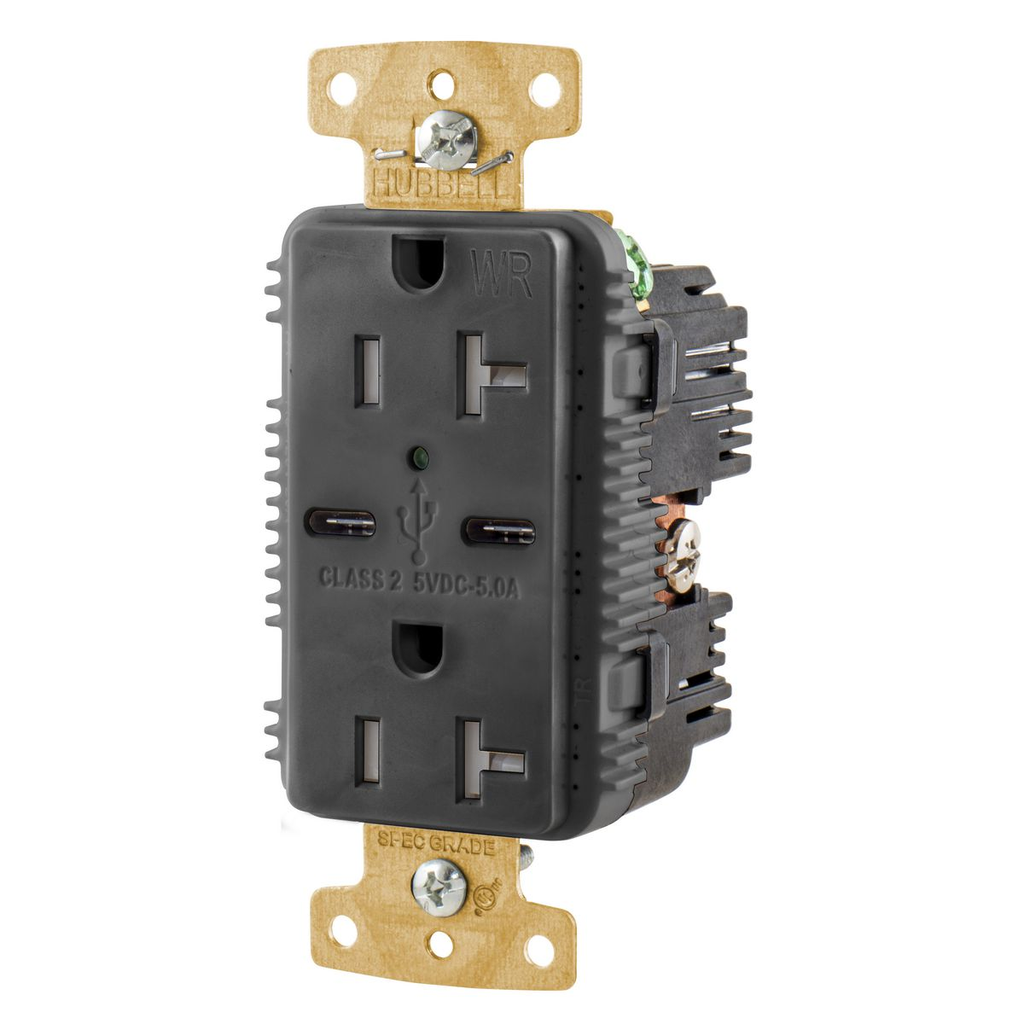

This Hubbell USB20C5BKWR duplex receptacle integrates tamper resistant and weather resistant features with two Type C USB ports, designed for USB charging and power applications. It is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable connectivity and switchgear supplier-grade durability. The device supports 15 or 20 amp, 125V AC electrical ratings and complies with NEC outdoor use requirements when installed with appropriate protection.

Specifications

• Application: USB Charging/Power
• Amperage Rating: 20 A
• Current: 20 amperes
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Material: Composite
• Color: Black
• Width: 2.2 in
• Mounting: Screw Mount
• Connection: Terminal Screws
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: China
• Manufacturer Part #: USB20C5BKWR

Features

• Weather and Tamper Resistant Commercial Grade
• Two Type C USB Ports with 5 Amp, 5 Volt High Power Output
• USB Ports Rated for 10,000 Charge-Cable Insertion Cycles
• Heavy Duty Specification Grade Construction
• Green LED Indicator
• Brass Triple-Wipe Contacts and Stainless Steel Terminal Screws
• Certified to UL498 and UL1310 Standards
• Complies with USB Battery Charging Specification BC1.2
• Compatible with USB 1.1, 2.0, and 3.0 Devices, Including Apple Products
• Meets NEC Section 406.9 for Outdoor Use with Proper Enclosure

Downloads & Links

• Spec Sheet
• Warranty Document Asset Reference
• USB20C5BKWR AutoCAD Drawing
• Sales Drawing Asset Reference
• Installation Manuals Asset Reference
• Catalog Full Asset Reference
