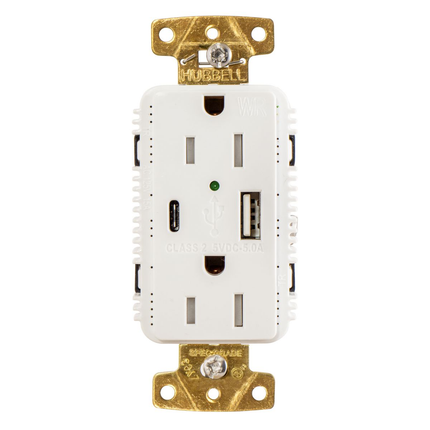

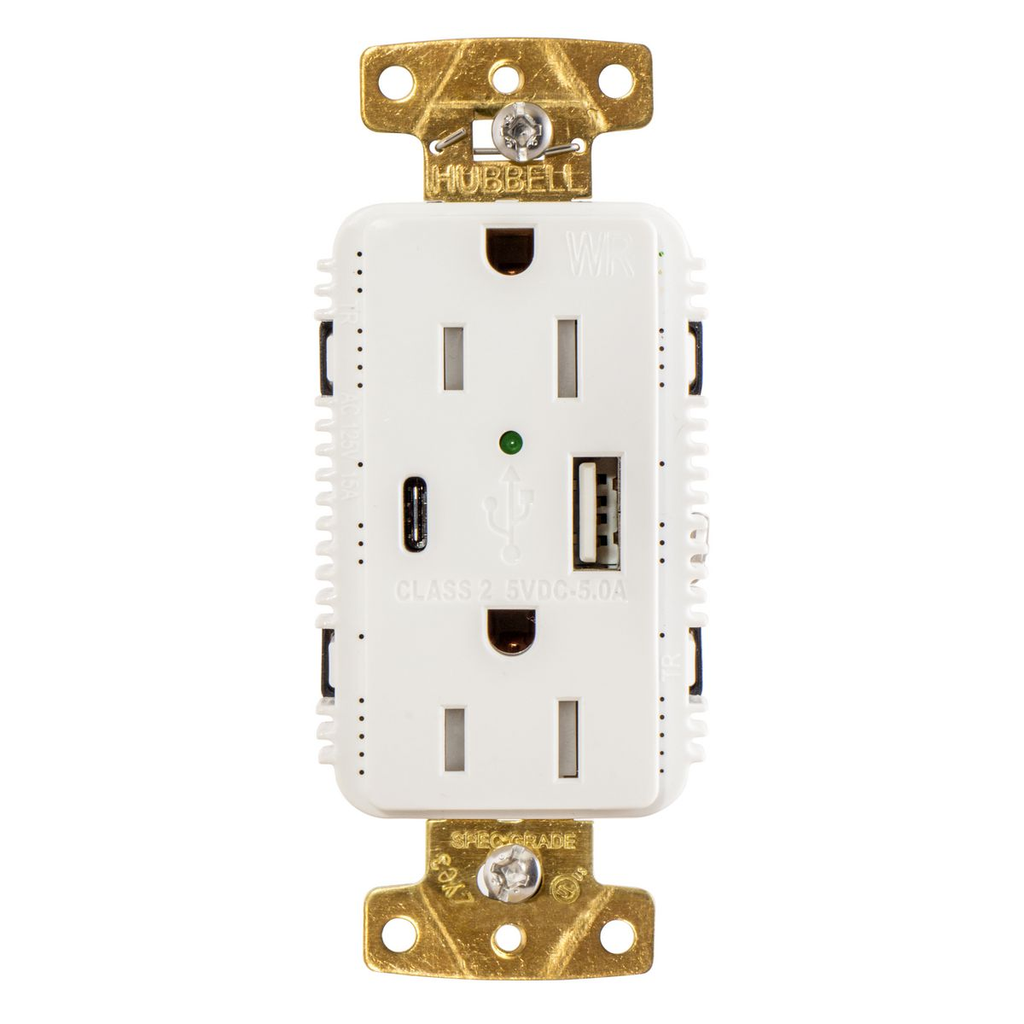

15A/125V Tamper Resistant/Weather Resistant Duplex Receptacle & Type A & C USB Ports, White USB Charging Receptacle

This Hubbell USB15AC5WWR receptacle combines a 15A/125V tamper-resistant and weather-resistant duplex electrical outlet with high-power USB Type A and Type C charging ports. Designed for indoor dry environments unless protected by additional means, it is suitable for residential and commercial applications requiring reliable power and USB charging integration. This device supports USB charging/power applications and is ideal for electrical distributors and lighting solutions providers seeking versatile wire and cable connectivity options.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: USB15AC5WWR
• Application: USB Charging/Power
• Current Rating: 15 amperes
• Amperage Rating: 15.0 A
• Voltage Rating: 125V
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Connection Type: Terminal Screws
• Mounting: Screw Mount
• Material: Composite
• Color: White
• Width: 2.2 in
• Product Weight: 3.95 lbs
• Dielectric Strength: Withstands 1,500V minimum
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• USB Ports: Combination of Type A and Type C, high power 5 Amp, 5 Volt USB output
• USB Port Durability: Stainless steel ports rated for 10,000 charge-cable insertion cycles
• Compliance: cULus Listed to UL498, UL1310; Complies with USB BC1.2 battery charging specification; Meets NEC Section 406.9 for outdoor use

Features

• Weather and tamper resistant commercial grade receptacle
• Combination USB ports: one Type A and one Type C for versatile device charging
• High power USB output (5 Amp, 5 Volt) supports fast charging
• Heavy duty spec grade construction for durability and reliability
• Brass triple-wipe contacts and stainless steel terminal screws for secure connections
• Green LED indicator for power status
• Auto-ground staple for enhanced safety

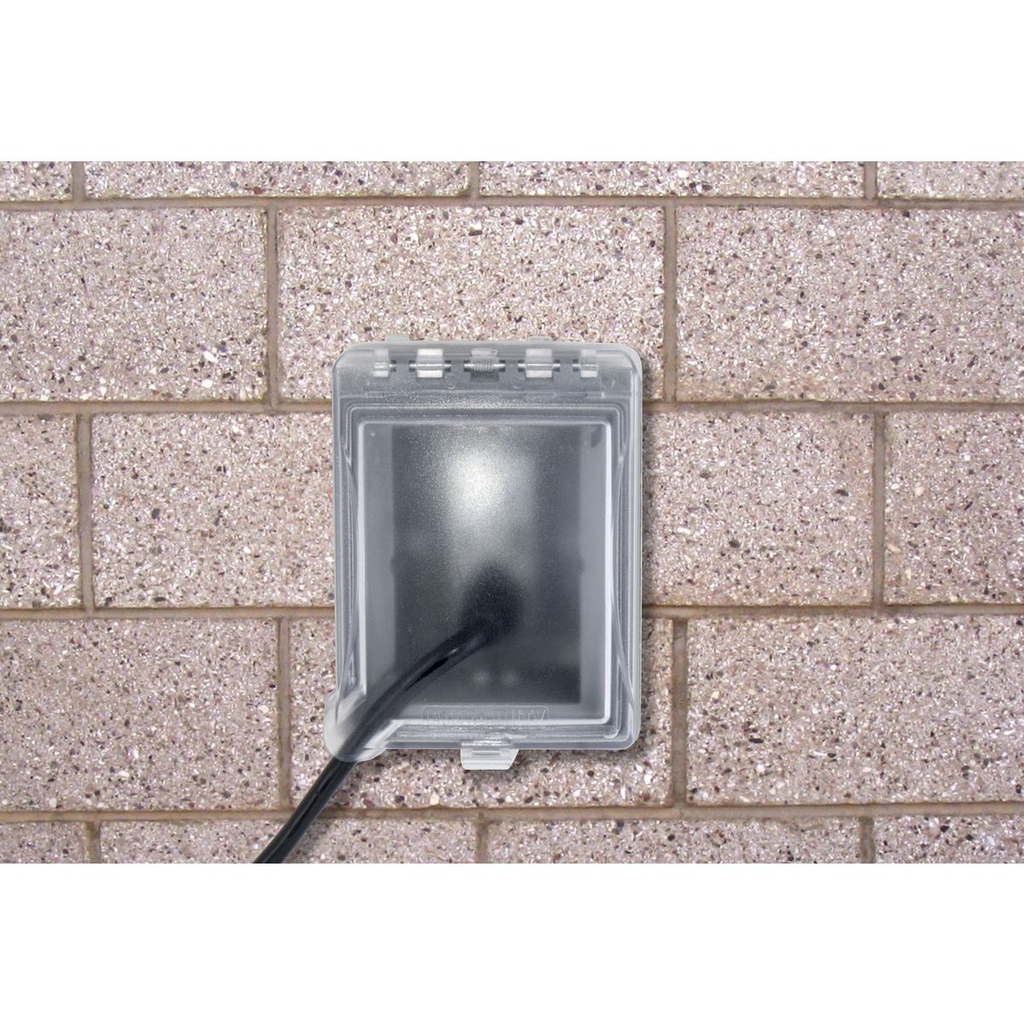

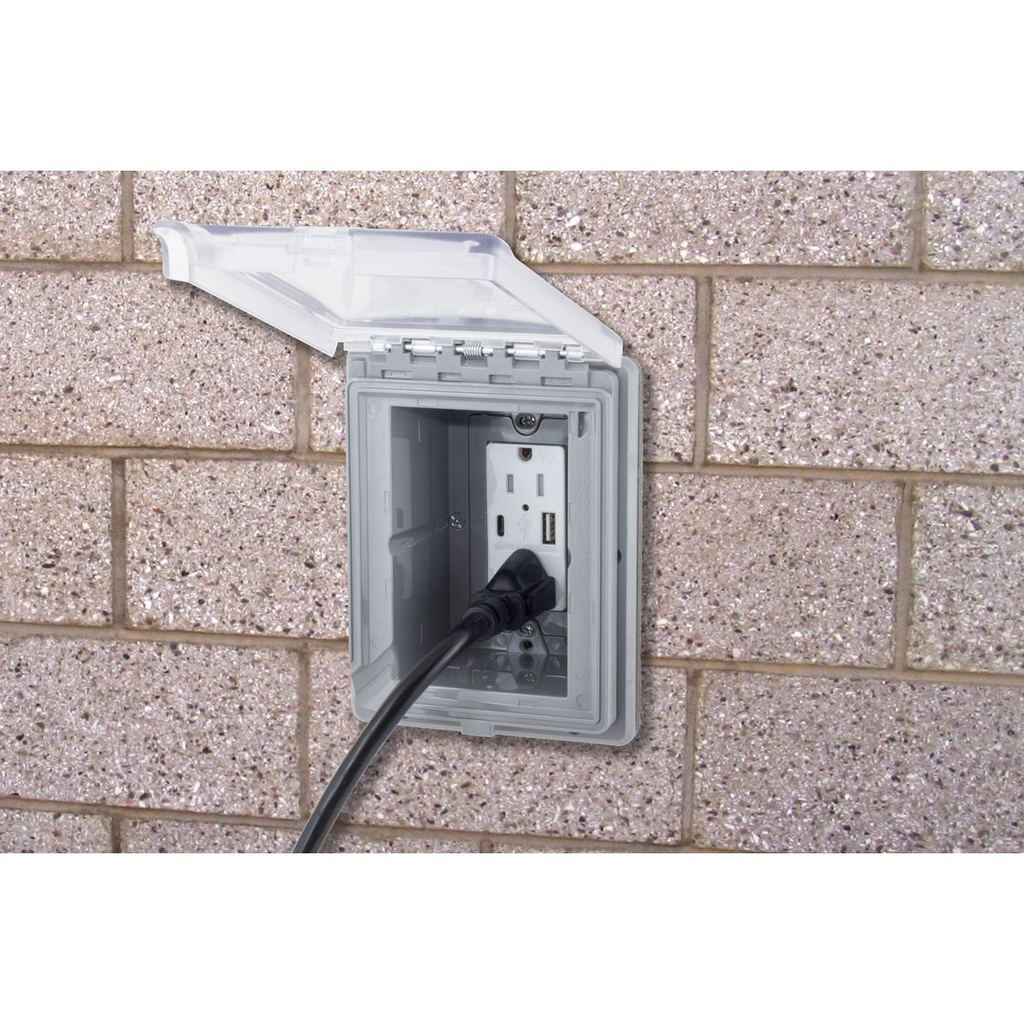

• Suitable for outdoor use when installed with a 3R extra duty protected enclosure
