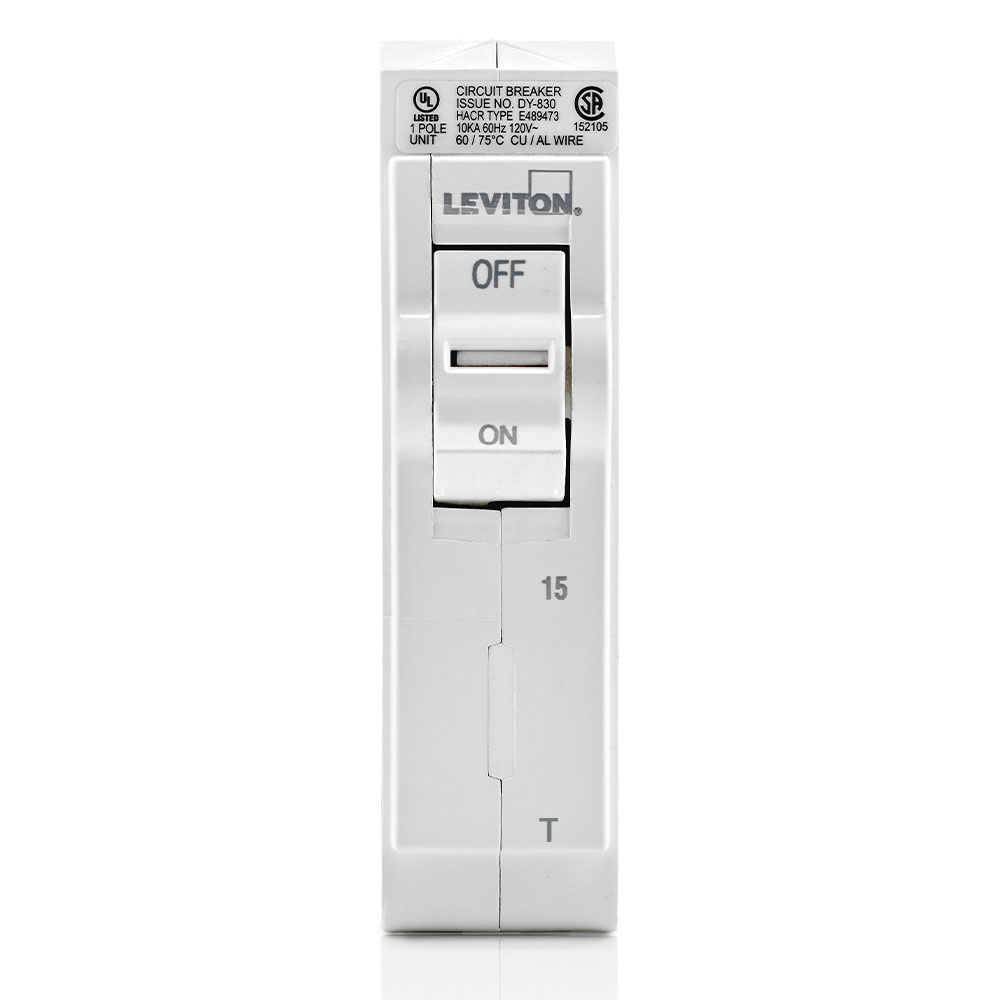

Features

• EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
• INTUITIVE – Color indicators in the handle show operational status at-a-glance
• COMFORTABLE – Rocker-style switches require less activation force than traditional circuit breakers *Designed for Leviton Load Centers only

Patents

• US10262826

Specifications

• Country of Origin: China
• RoHS Compliant: True

Electrical Specifications

• Amperage: 15 A
• Breaker Technology: Thermal Magnetic
• Pole: 1
• Short Circuit Current Rating: 10 KA
• Type: Standard
• Voltage: 120 VAC

Product Features

• Dimensions: 3.9" H x 1.0" W x 3.1" D
• Smart: No
• Warranty: Limited 10-Year Warranty (Mechanical), Limited 2-Year Warranty (Electronic)
• Weight: 0.42 lbs.
• Wiring: All Plug-on

Standards & Certifications

• EMC Compatibility: Yes
• FCC: Yes
• RoHS: Yes
• UL 489: Yes
