150W (M102) Metal Halide, F-CAN Ballast - Electrical Lighting Solutions

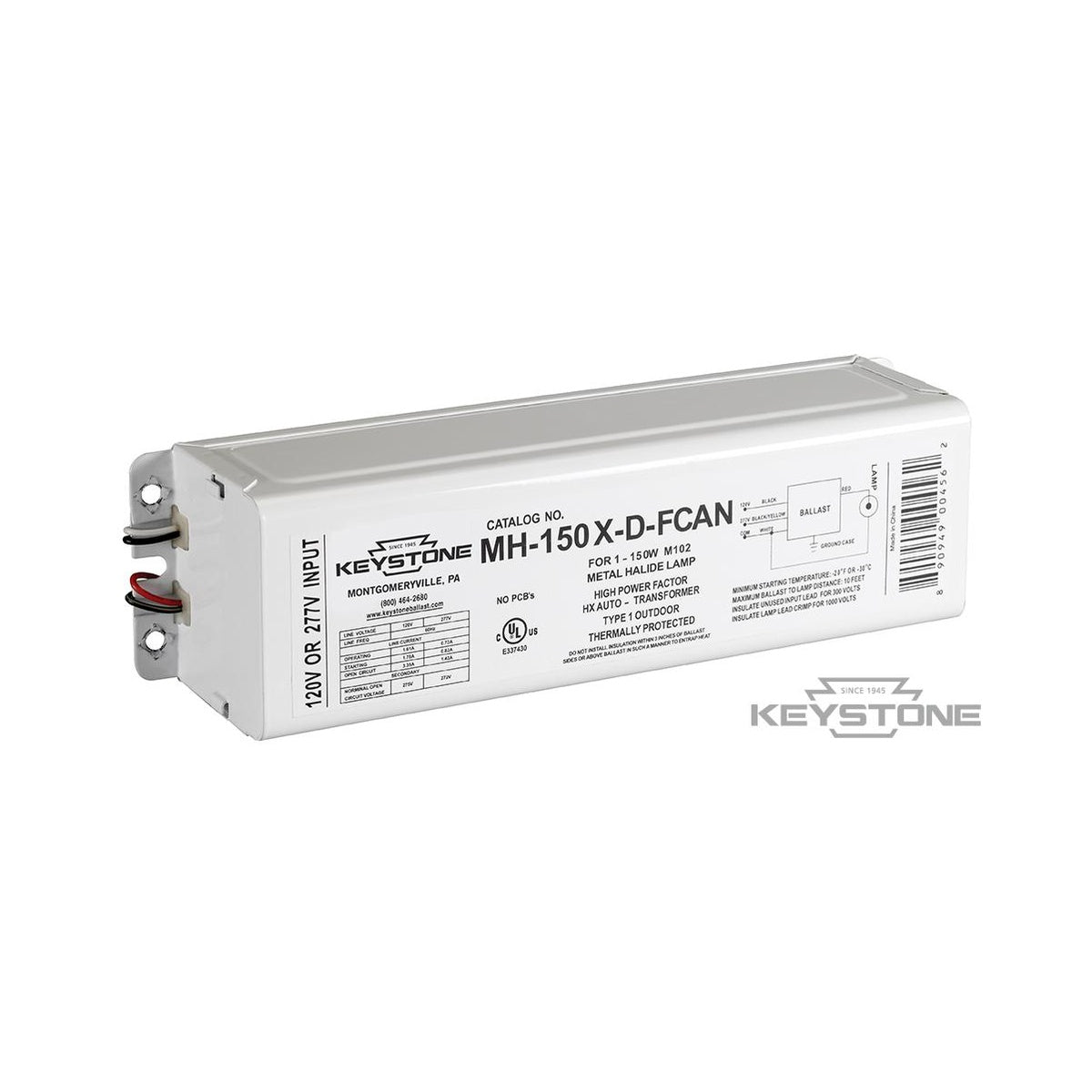

The Keystone 150W (M102) Metal Halide F-CAN ballast is designed for reliable operation of 150W metal halide lamps with dual voltage input of 120/277V. Suitable for electrical distributors and lighting solutions providers, this ballast supports high power factor and features a high reactance circuit type (HX-HPF) for consistent lamp performance. It is engineered for outdoor use with thermal protection and meets agency certifications RU and cRU, making it a dependable component in wire and cable installations and switchgear systems.

Specifications

• Manufacturer Part #: MH-150X-D-FCAN
• ANSI Designation: M102
• Input Voltage: Dual 120/277V
• Power Factor: High
• Frequency: 60 Hz
• Regulation: 5%
• Circuit Type: HX-HPF
• Capacitor Value: 16 MF
• Capacitor Voltage Rating: 280 V
• Capacitor Temperature Rating: 90ºC
• Insulation Class: 180ºC
• Winding Materials: Copper/Copper (Cu/Cu)
• Recommended Fuse: 10/4 A
• Maximum Distance to Lamp: 10 ft
• Minimum Starting Temperature: -30ºC
• UL Temperature Code: A
• Dimensions (L x W x H): 11.80" x 3.23" x 2.75"
• Mounting Length: 11.40"
• Lead Length: 12-14"
• Ballast Net Weight: 12.99 lbs
• Agency Certification: RU, cRU
• Warranty: 2 years

Features

• Dual voltage input supports 120V and 277V applications
• High power factor for energy-efficient operation
• Thermally protected for safe outdoor use
• High reactance circuit ensures stable lamp starting and operation
• Copper winding materials for durability and performance
• Complies with UL and cRU safety standards
• Compact fluorescent case style for easy installation

Downloads & Links

• Spec Sheet
