150G, IMC/Rigid/EMT Conduit Clamp Back
SKU: #312401
Part: #150G
UPC: 783126761900
150G, IMC/Rigid/EMT Conduit Clamp Back
SKU: #312401
Part: #150G
UPC: 783126761900
Description

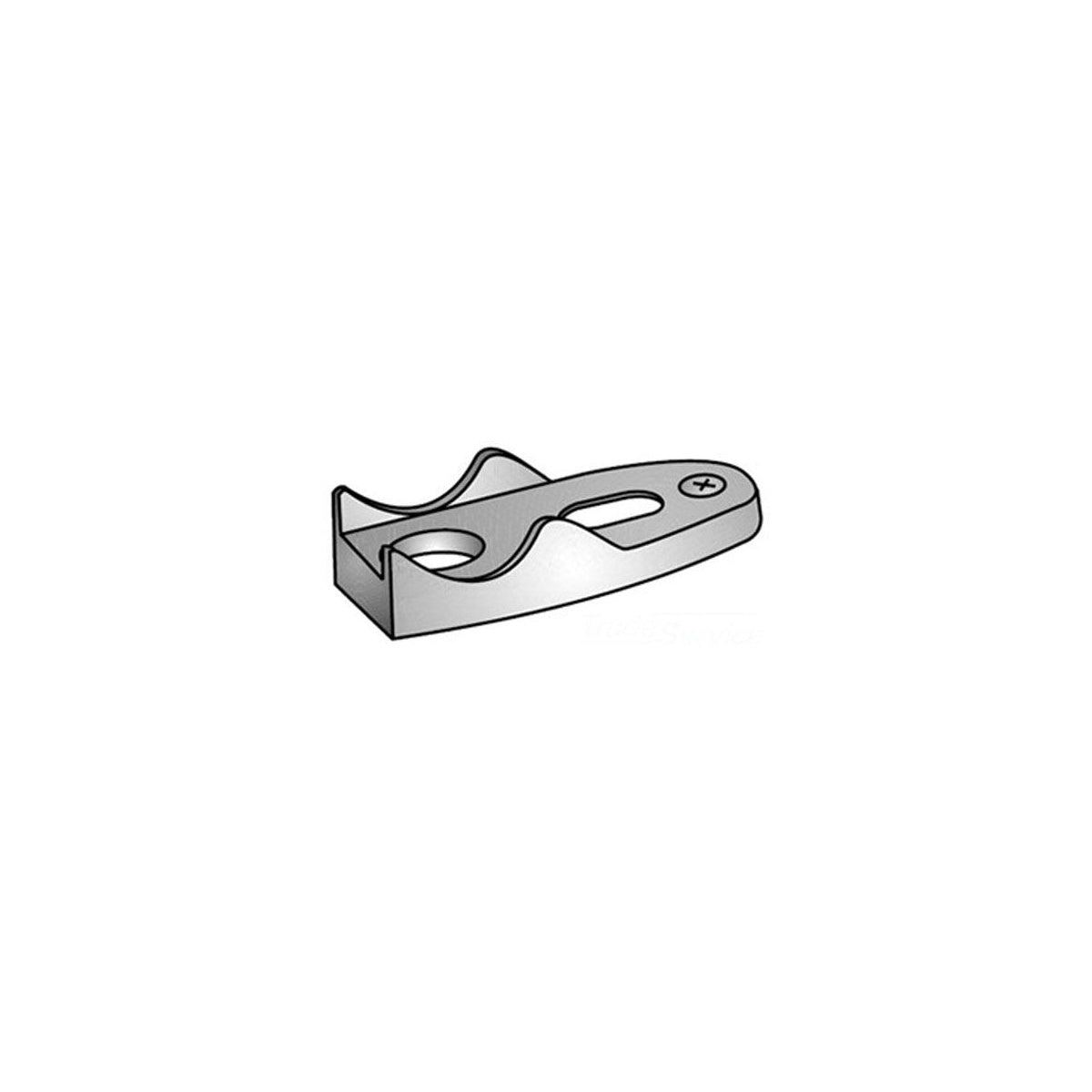

150G, IMC/Rigid/EMT Conduit Clamp Back for Electrical Distributor Applications
The 150G IMC/Rigid/EMT Conduit Clamp Back by Appleton is designed to provide secure spacing from mounting surfaces when used with malleable iron pipe straps. Suitable for rigid conduit, intermediate metal conduit (IMC), and electrical metallic tubing (EMT), this clamp back is an essential component for electrical distributors and switchgear suppliers requiring reliable conduit support in commercial and industrial lighting and wiring installations.
Specifications
- Application: For Rigid Conduit, IMC And EMT Conduit
- Material: Malleable Iron
- Finish: Hot Dip Galvanized
- Dimensions (L x W x H): 8.75 in x 3.44 in x 0.7 in
- Number of Holes: 1
- Product Weight: 2.0000 lbs
- Manufacturer: Appleton
- Manufacturer Part #: 150G
Features
- Provides spacing from mounting surface when used with malleable iron pipe straps
- Constructed from durable malleable iron for strength and longevity
- Hot dip galvanized finish for corrosion resistance in various environments
- Single-hole design for easy installation and secure fastening
- Compliant with CSA Standard C22.2 No. 18 and CSA Certified 009795 for safety and reliability
- Listed for ordinary locations by CEC, suitable for commercial and industrial conduit fittings
