Features

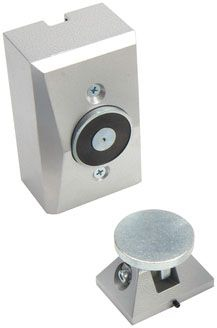

• The 1508 Series Electromagnetic Door Holder is a High Quality Device for Use with Single Doors
• The Electromagnet Assembly is Designed for Surface Wall Mounting
• Designed to be Used on Self-Closing, Swinging Doors to Automatically Isolate an Area When Activated by Fire Alarm, Smoke Detection or Sprinkler Systems
• The 1508 Series Door Holder is an Auxiliary Device Designed for Wall Mount Applications that Require Holding Single Doors

Additional Information

• Operating Temperature Rating 32 to 120 Deg F
• Application Hospital, School Exit Door, Office, Nursing Home and Public Building
• Includes Mounting Hardware

Specifications

• Type: Electromagnetic, 1-Door, 1-Gang
• Material: Powder Epoxy Aluminum Die-Cast Metal
• Voltage Rating: 24/120 Volt AC 60 Hertz, 24 Volt DC
• Current Rating: 0.015 Amp
• Holding Force: 25 Pound
• Mounting: Surface/Wall
• Size: 2-3/4 Inch Width x 7/32 Inch Depth x 4-1/2 Inch Height
• Approval: UL, CUL, FM
• Series/Model: 1508
