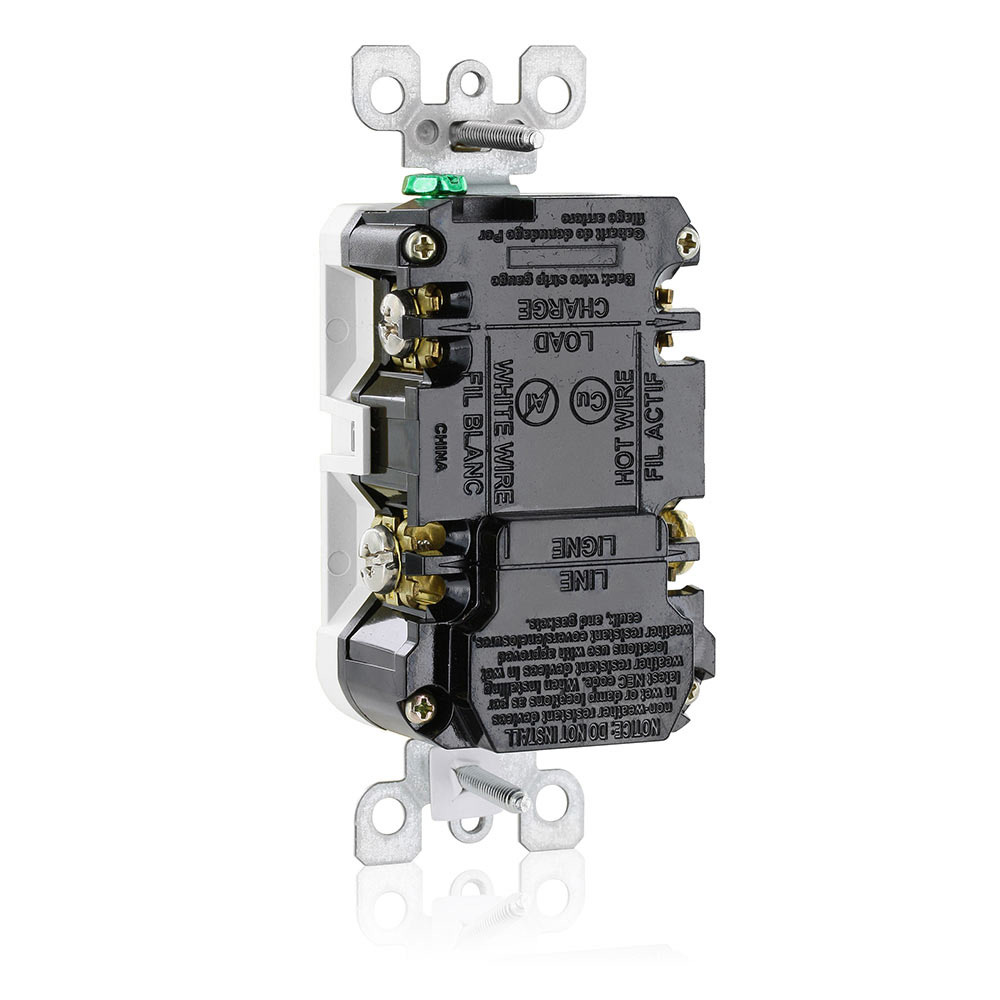

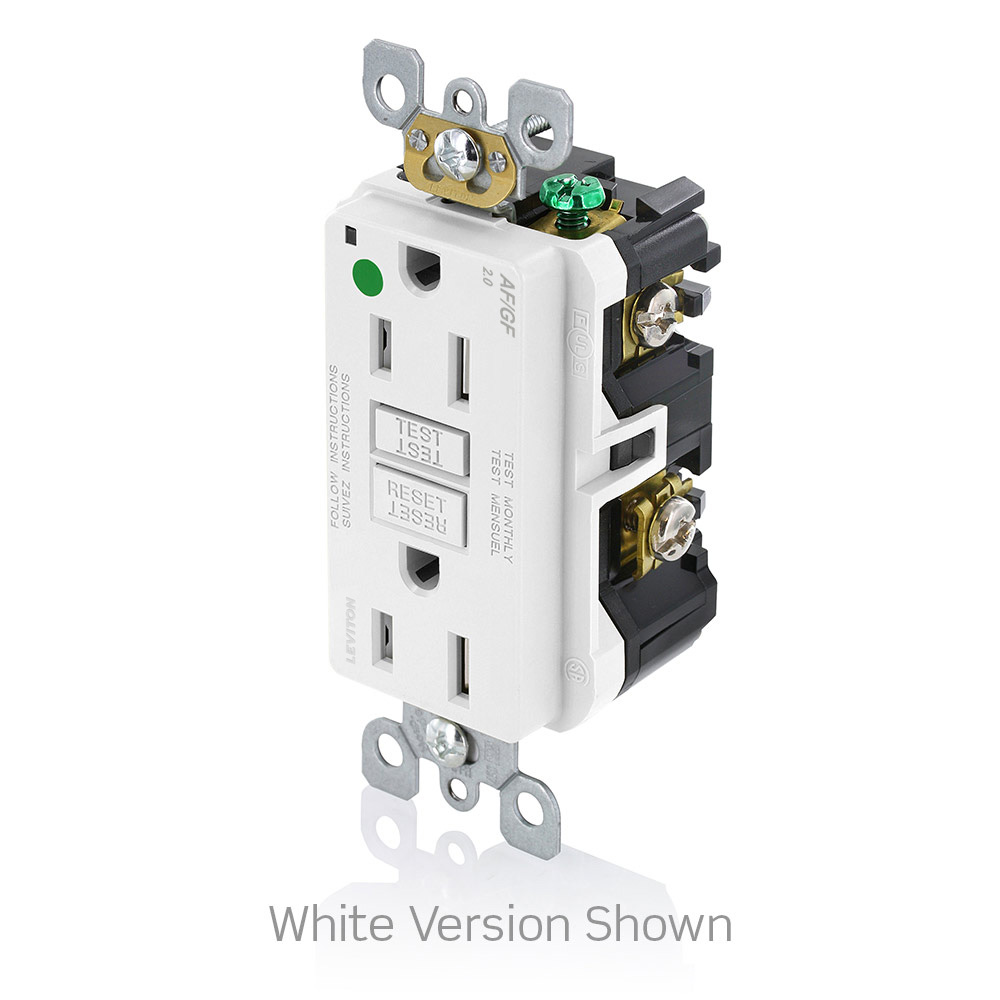

15 Amp SmartlockPro® AFCI/GFCI Receptacle/Outlet, Hospital Grade, Tamper-Resistant - Electrical Safety Outlet

This 15 Amp SmartlockPro® AFCI/GFCI receptacle/outlet by Leviton is a hospital-grade, tamper-resistant duplex receptacle designed for advanced electrical safety. It combines Arc-Fault Circuit Interrupter (AFCI) and Ground-Fault Circuit Interrupter (GFCI) protection to safeguard branch circuit wiring, cord sets, and connected power supplies against arc faults and ground faults. Ideal for use by electrical distributors and switchgear suppliers in healthcare and other critical environments, this device ensures compliance with electrical codes and enhances safety in wiring installations.

Specifications

• Amperage: 15 amperes
• Voltage: 125 Volt Feed-Through
• Device Type: Duplex Receptacle Outlet
• Body Material: Polycarbonate
• Face Material: Thermoplastic
• Color: White
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Horsepower Rating: 1 horse power
• Operating Temperature: -35 degrees Celsius
• Flammability Class: Rated V-2 Per UL 94
• Manufacturer: Leviton
• Country of Origin: China
• Manufacturer Part Number: AGTR1-HGW
• Product Weight: 0.3400 lbs

Features

• Integrated AFCI and Self-Test GFCI protection for enhanced electrical safety
• Hospital-grade construction suitable for critical healthcare environments
• Tamper-resistant design to prevent unauthorized or accidental insertion
• Self-testing functionality with status indicator light to verify proper operation
• Lockout feature prevents resetting if miswired or if internal test fails
• Compatible with copper or copper-clad wiring; not suitable for aluminum wiring
• Includes feed-through wiring capability for downstream receptacle protection
• Complies with national and local electrical codes for branch circuit AFCI/GFCI installation
• Simple installation as the first outlet in the branch circuit with clear wiring terminals

Downloads & Links

• product-cleaning-instructions
• PK-A3116-10-00-2G-W
• Straight Blade Receptacle Catalog Q-1101H
• HG AFCI-GFCI Receptacle PB Q-1230
