The 15 Amp Single-Pole Toggle Wall Switch provides reliable on/off control for standard 120 volt residential lighting and appliance circuits. It features a durable grounding design with a clean white finish that blends seamlessly into most interior decor schemes.

• Rating: 15 amp capacity for standard household electrical loads
• Design: Single-pole configuration with traditional toggle operation
• Safety: Built-in grounding for enhanced electrical protection
• Finish: Clean white color that coordinates with most decor
• Installation: Compatible with standard electrical boxes for easy wall mounting

Features

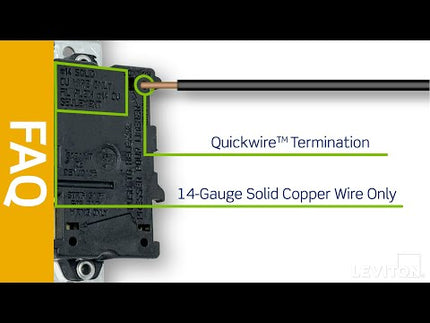

• Faster installation with combination of side wiring and Quickwire push-in wiring
• Quickwire accepts conductors up to #14 AWG.
• Side wire accepts conductors up to #12 AWG
• Large head triple-drive combination screws (Standard, Phillips, Robertson) for fast wiring installation
• Impact-resistant, durable thermoplastic toggle and frame
• Backed by a Limited Two-Year Warranty
• NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
• Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton’s traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.

Color Variations

• Brown

Specifications

• Country of Origin: Please Contact Customer Service
• RoHS Compliant: False

Product Features

• Actuator Material: Thermoplastic
• Amperage: 15 A
• Body Material: Thermoplastic
• Color: White
• Feature: Framed
• Grounding: Grounding
• HP Rating: 1/2HP-120V
• Max. Amperage: 12 Amp
• Pole: 1
• Standards and Certifications: UL/CSA
• Strap Material: Steel
• Termination: Quickwire Push-In & Side
• Torque Range: 14 – 18 in.-lbs
• Type: Toggle Switch
• Voltage: 120 VAC
• Warranty: 2-Year Limited
