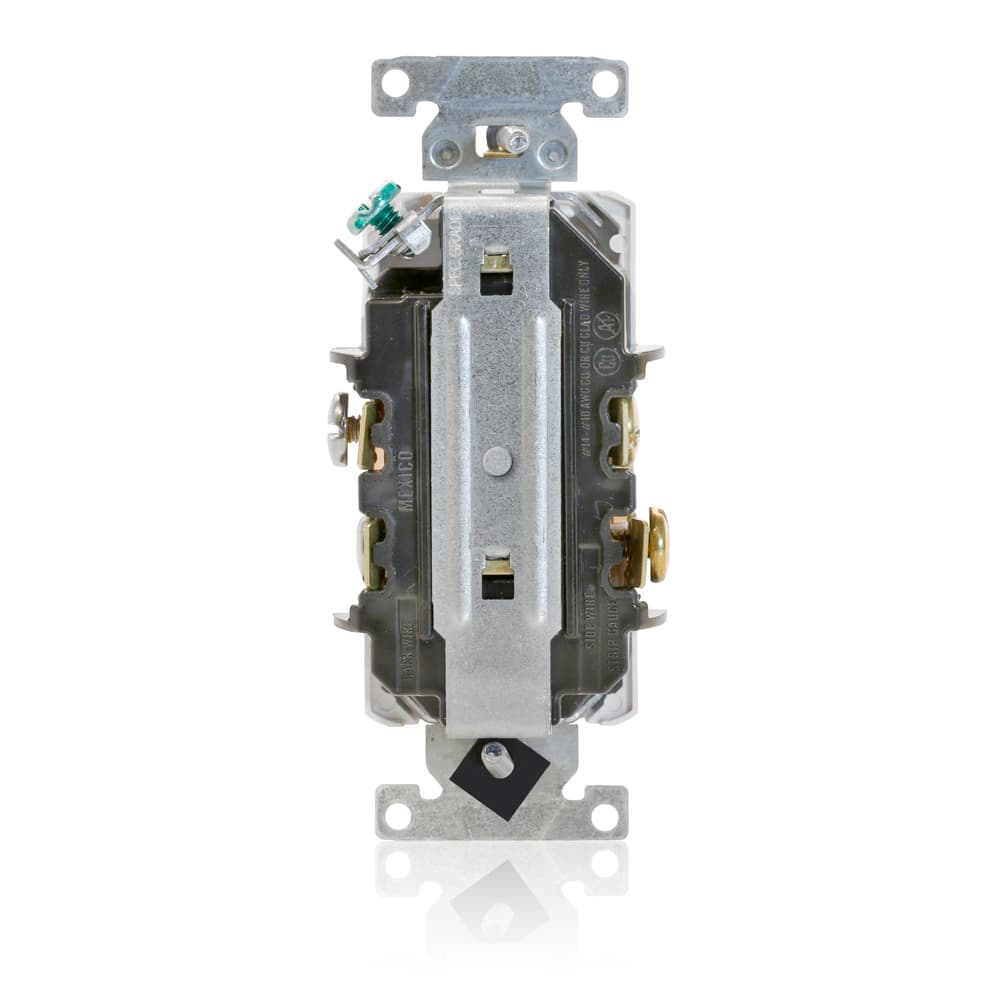

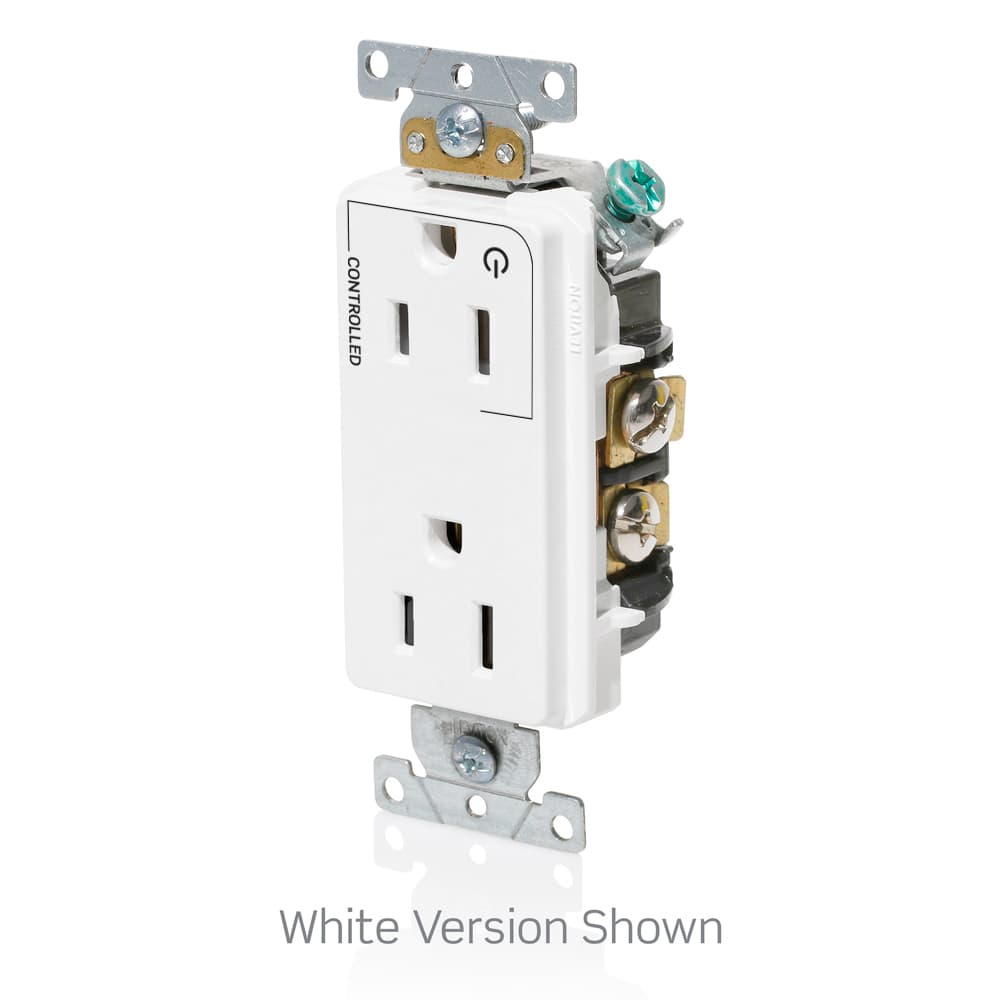

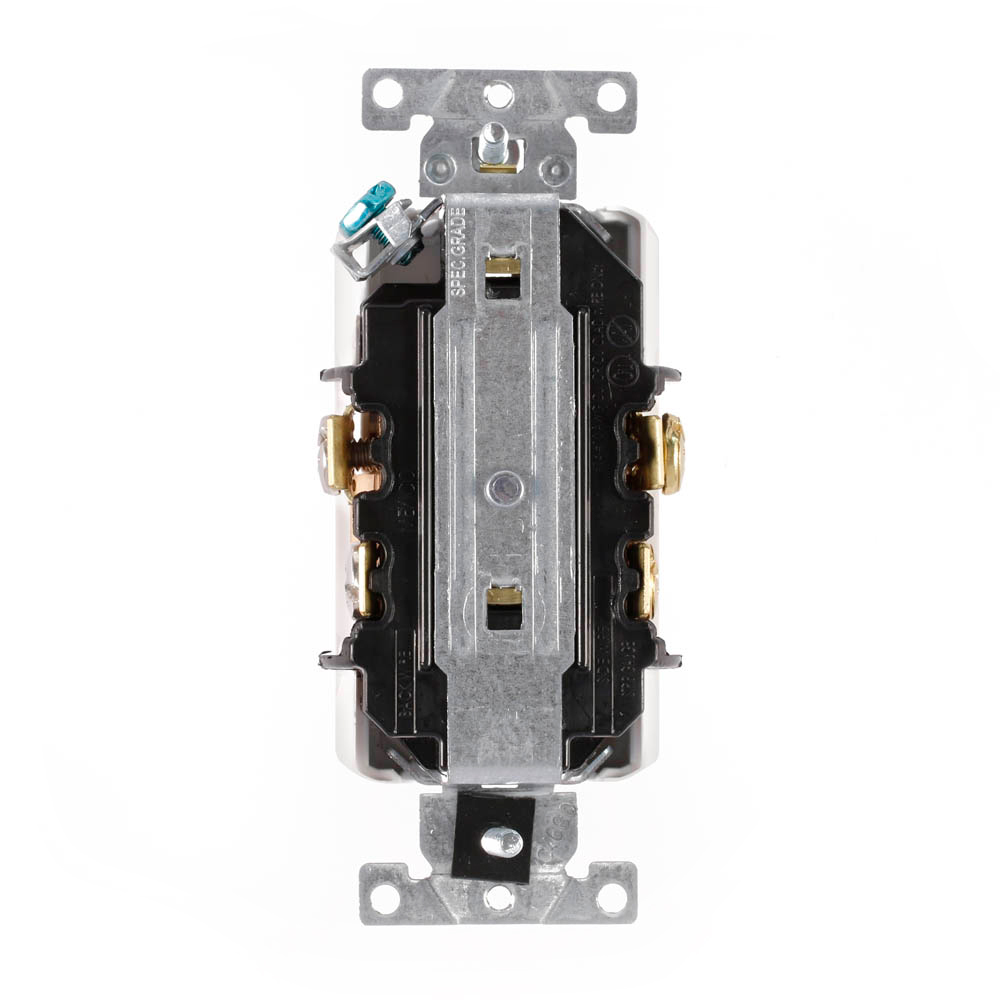

15 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding, Marked Controlled
SKU: #8125
Part: #16252-1PG
UPC: 078477706329
15 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding, Marked Controlled
SKU: #8125
Part: #16252-1PG
UPC: 078477706329
Description
15 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding, Marked Controlled
This Decora Plus Duplex Receptacle Outlet is a heavy-duty industrial specification grade device designed for reliable electrical distribution in commercial and industrial applications. It features a split-circuit design with one outlet marked "Controlled" for load management. The device supports 15 amperes at 125 volts and is suitable for back or side wiring. Its robust construction and compliance with industry standards make it ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring dependable receptacles.
Specifications
- Amperage: 15 amperes
- Voltage: 125 Volt
- Device Type: Duplex Receptacle Outlet
- Grade: Heavy-Duty Industrial Specification
- Number of Poles: 2
- Number of Wires: 3
- Grounding: Self-Grounding
- Body Material: PBT
- Face Material: PBT
- Dielectric Strength: 3000 volts
- Flammability Class: Rated V-2 Per UL 94
- Operating Temperature: -40 degrees Celsius
- Manufacturer Part #: 16252-1PG
- Country of Origin: Mexico
- UPC: 078477706329
- Product Weight: 11.0000 lbs
Features
- Split-circuit design with one outlet marked "Controlled" for automatic load control
- Self-grounding design enhances safety and installation reliability
- Back or side wire capability supports #10, 12, or 14 AWG copper or copper-clad wire
- Heavy-duty industrial specification grade ensures durability and long service life
- Smooth face for easy cleaning and aesthetic installation
- Complies with UL and Federal Specification W-C-596 for industrial receptacles
- Rated for use in demanding electrical distribution and lighting applications
