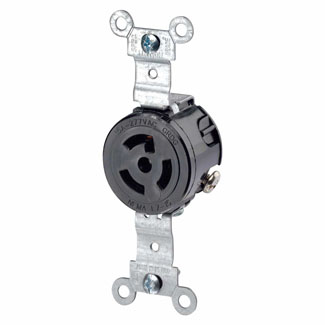

15 Amp, 277 Volt, Single Locking Receptacle, Industrial Grade
SKU: #14937
Part: #4760
UPC: 078477797068
15 Amp, 277 Volt, Single Locking Receptacle, Industrial Grade
SKU: #14937
Part: #4760
UPC: 078477797068
Description
15 Amp, 277 Volt, Single Locking Receptacle, Industrial Grade
This industrial grade locking receptacle is designed for secure electrical connections in commercial and industrial environments. It supports 15 amperes at 277 volts, featuring a NEMA L7-15R configuration with 2 poles and 3 wires. Suitable for use by electrical distributors and switchgear suppliers, this device ensures reliable grounding and side wiring for enhanced safety and performance in lighting solutions and wire and cable systems.
Specifications
- Amperage: 15 amperes
- Voltage: 277 volts
- NEMA Configuration: WD-6 (L7-15)
- Number of Poles: 2
- Number of Wires: 3
- Device Type: Locking Receptacle
- Grounding: Grounding
- Body Material: Nylon
- Face Material: Nylon
- Dielectric Withstand Voltage: 2000 volts
- Operating Temperature: -40 degrees Celsius
- Flammability Class: Rated V-2 Per UL 94
- Product Weight: 5.58 lbs
- Country of Origin: Mexico
Features
- Industrial grade construction for durability and reliability
- Side wired terminals for secure and easy installation
- Locking design to prevent accidental disconnection
- Compatible with copper or copper clad wire
- Rated for harsh environments with UL 94 V-2 flammability rating
