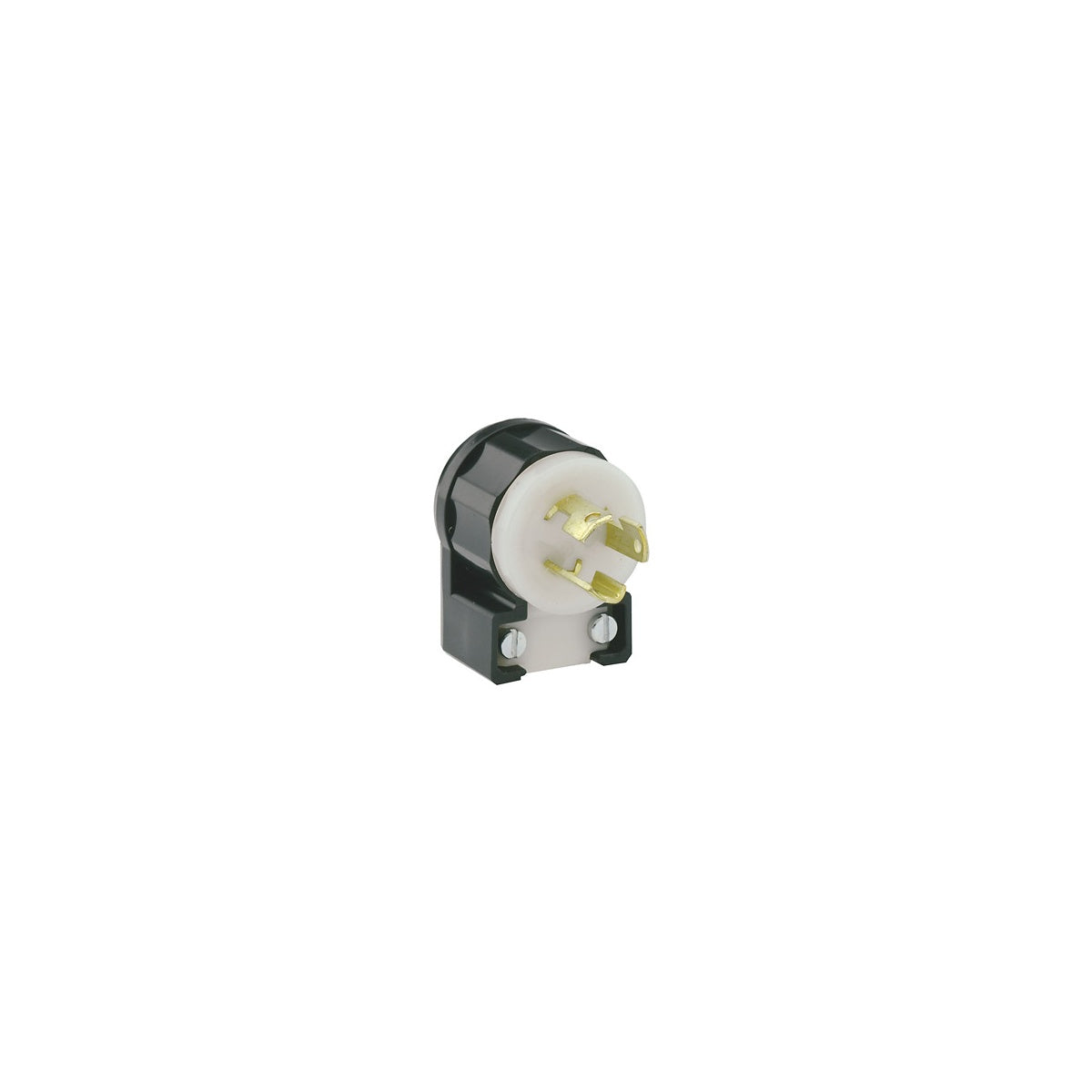

15 Amp, 277 Volt NEMA L7-15P Locking Plug – Industrial Grade Electrical Connector

This Leviton 15 Amp, 277 Volt NEMA L7-15P locking plug is designed for industrial-grade applications requiring secure electrical connections. It is suitable for dry environments and compatible with wiring configurations demanding reliable grounding and high dielectric strength. Ideal for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers seeking durable locking plugs for commercial or industrial installations.

Specifications

• Amperage: 15 amperes
• Voltage: 277 volts
• NEMA Configuration: L7-15P
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Grounding
• Blade Type: Solid Brass
• Body Material: Impact Modified Nylon
• Color: Black
• Dielectric Strength: 2000 volts
• Horsepower Rating: 2 horse power
• Operating Temperature: -40 degrees Celsius
• Flammability Class: Rated HB Or Better UL94
• Environment: Dry
• Manufacturer: Leviton
• Manufacturer Part Number: 4770-CA
• Product Weight: 0.1780 lbs
• UPC: 078477795798

Features

• Industrial grade construction for durability in commercial and industrial environments
• Impact modified nylon body ensures resistance to mechanical stress
• Solid brass blades provide reliable conductivity and corrosion resistance
• Grounding feature enhances safety in electrical installations
• Rated for use in dry environments with UL94 HB or better flammability rating
• Designed for secure locking connection to prevent accidental disconnection
• Wide operating temperature range down to -40°C for versatile applications
• Complies with NEMA L7-15P standards for compatibility and safety

Downloads & Links

• Instruction Sheet
