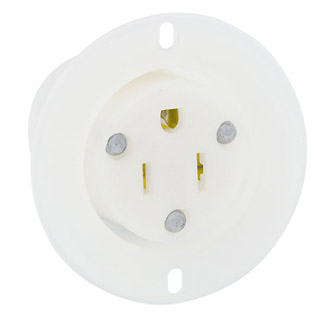

Features

• Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.

NEMA

• 5-15R

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL 498: File E13399
• UL Fed Spec WC-596: File E13393
• Warranty: Limited Lifetime Warranty Warranty

Electrical Specifications

• Amperage: 15 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Material Specifications

• Assembly Screws: Steel, Zinc Plated
• Blades/Contacts: Solid Brass
• Body Material: Super Tough Nylon
• Color: White
• Terminal Screws: Brass
• Wire Module: Nylon

Product Features

• Brand: Black and White
• Device Type: Straight Blade Flanged Inlet
• Face Material: Nylon
• Strap Material: Thermoplastic Nylon
• Termination: Back

Environmental Specifications

• Environment: Dry
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings and NEMA I.D. permanently marked on device
• Screw Terminal Torque: 10-14 in-lbs
• Terminal Accom.: 18-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Torque Range: 10-14 in-lbs
