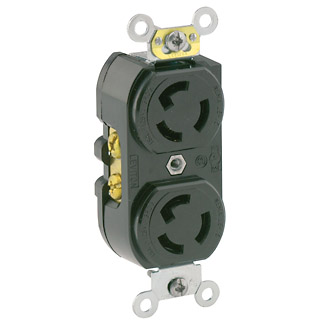

15 Amp, 125 Volt, Duplex Locking Receptacle

This Leviton 15 Amp, 125 Volt Duplex Locking Receptacle is designed for secure electrical connections in commercial and industrial applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wiring devices. The receptacle supports a common feed configuration and is self-grounding, ideal for lighting solutions, wire and cable installations, and general electrical distribution.

Specifications

• Amperage: 15 amperes
• Voltage: 125 volts
• NEMA Configuration: WD-6 (L5-15R)
• Device Type: Locking Receptacle
• Number of Poles: 2
• Number of Wires: 3
• Body Material: Nylon
• Face Material: Nylon
• Color: Black
• Grounding: Self-Grounding
• Dielectric Withstand: 2000 volts
• Operating Temperature: -40 degrees Celsius
• Flammability Class: Rated V-2 Per UL 94
• Product Weight: 12.66 lbs
• Country of Origin: Mexico
• Manufacturer Part Number: 4700

Features

• Duplex design allows two locking connections in a single device
• Common feed wiring configuration for simplified installation
• Self-grounding feature enhances electrical safety
• Durable nylon construction for body and face provides impact and heat resistance
• Rated for industrial environments with high dielectric strength and UL 94 V-2 flammability rating
