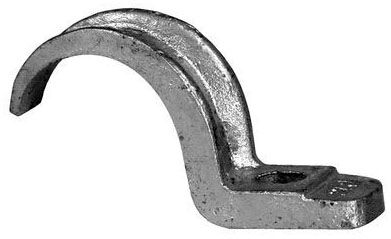

14-125G, IMC/Rigid Conduit Strap for Electrical Distributor and Lighting Solutions

The 14-125G IMC/Rigid Conduit Strap is designed for supporting rigid conduit and intermediate metal conduit (IMC) in commercial and industrial electrical installations. Manufactured by O-Z Gedney, this conduit strap provides secure fastening for wire and cable management in switchgear and lighting solutions. It is constructed from malleable iron with a hot dip galvanized finish, ensuring durability and corrosion resistance in ordinary locations.

Specifications

• Application: For Supporting Rigid Conduit And IMC
• Material: Malleable Iron
• Finish: Hot Dip Galvanized
• Length: 3.69 Inch
• Width: 0.88 Inch
• Height: 1.88 Inch
• Number of Holes: 1
• Hole/Bolt Size: 0.38 Inch
• Trade Size: 1-1/4 Inch
• Product Weight: 0.1800 lb
• Approval: CSA C22.2, Federal Specification FF-S-760, Canadian Electrical Code (CEC)

Features

• Designed specifically for supporting rigid conduit and IMC
• Constructed from durable malleable iron for strength and longevity
• Hot dip galvanized finish provides corrosion resistance for commercial and industrial environments
• Single-hole design simplifies installation
• Meets CSA and Federal Specification FF-S-760 standards for electrical fittings
