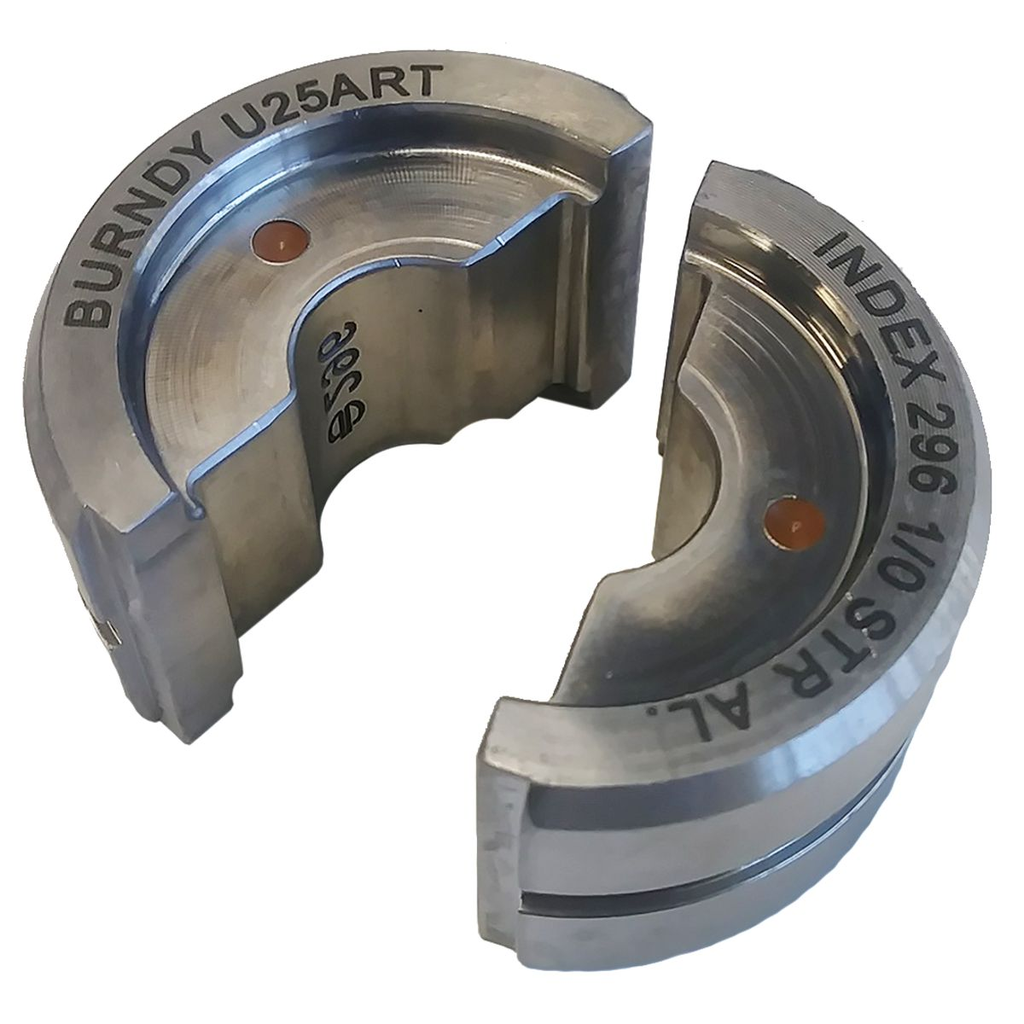

12T U Die, Tan, Index 296 – Crimping Die for Electrical Applications

The 12T U Die, Tan, Index 296 by Burndy is a precision-engineered crimping die designed for use in electrical distribution and wire and cable applications. This stainless steel die provides reliable circumferential crimping performance, suitable for use with hydraulic crimping tools and compatible with Y35, Y750, PAT750, Y46, and PAT46 tools when used with the PUADP1 adapter. It is a critical component for electrical distributors and switchgear suppliers requiring durable and accurate crimping solutions.

Specifications

• Manufacturer: Burndy
• Manufacturer Part #: U25ART
• Die Type: U Die
• Application: Crimping
• Crimp Force Capacity: 12 ton
• Die Index: 296
• Color Code: Tan
• Weight: 0.49 lb
• Width: 1.88 in
• Country of Origin: United States
• Material: Stainless Steel
• RoHS Compliance: Yes
• Compatible Tools: Use with Y35, Y750, PAT750, Y46, PAT46 (with PUADP1 Adapter)
• UPC: 781810627105

Features

• Durable stainless steel construction ensures long service life and consistent performance
• Twin U style design for effective circumferential crimping
• Color coded tan for easy identification and indexing
• Precision manufactured in the USA for quality assurance
• Compatible with a range of hydraulic crimping tools used by electrical distributors and lighting solutions providers
