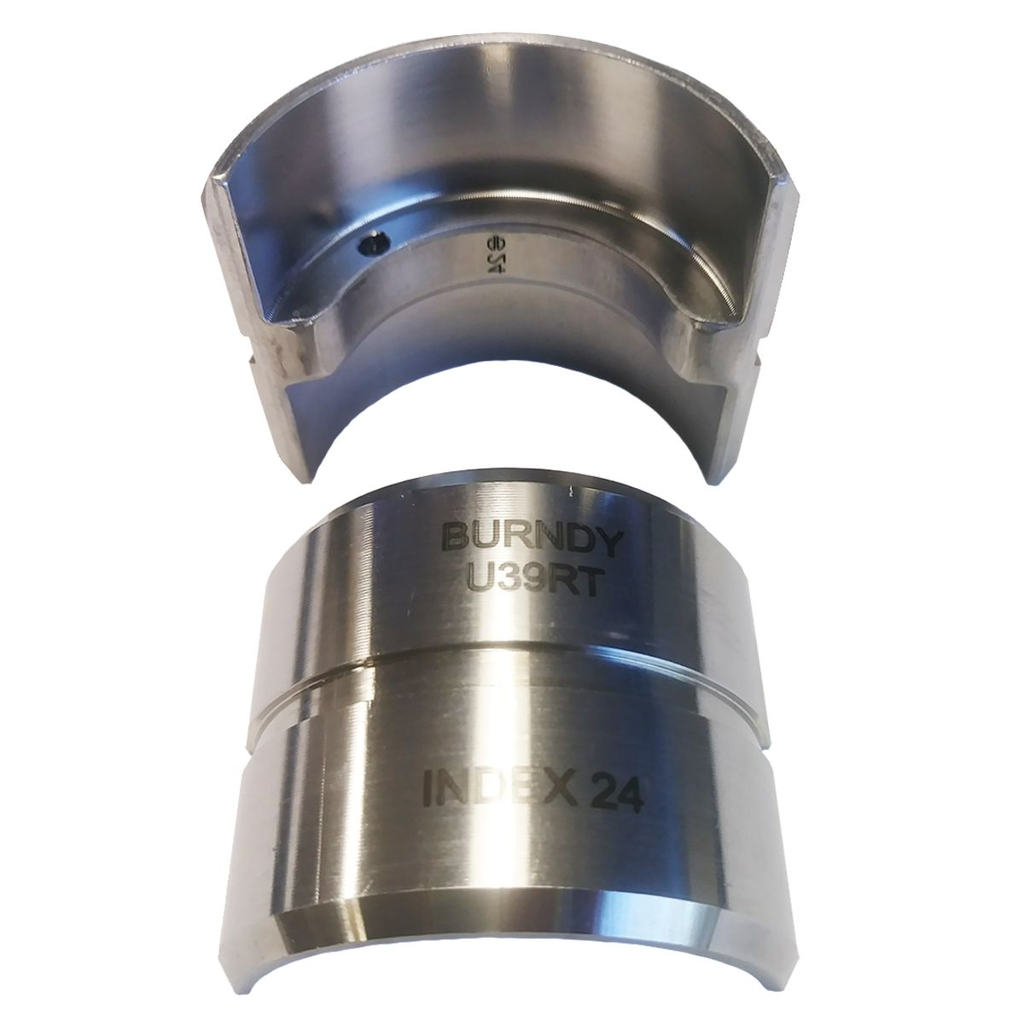

12T U Die, 750 kcmil, Black, Index 24 - Crimping Die for Electrical Applications

This 12T U Die by Burndy is designed for precise crimping applications, suitable for use in electrical distribution, wire and cable processing, and switchgear assembly. It features a non-butting twin U style that ensures a circumferential crimp on conductors up to 750 kcmil/600 Flex. The die is color-coded black and indexed 24 for easy identification and compatibility with specific crimping tools and adapters.

Specifications

• Manufacturer Part #: U39RT
• Material: Stainless Steel
• Color Coding: Black
• Die Type: U Die
• Crimping Range: 750 kcmil / 600 Flex
• Crimp Force Capacity: 12 ton
• Width: 1.38 in (35.00 mm)
• Weight: 0.26 lb
• Application: Crimping
• RoHS Compliance: Yes
• Country of Origin: United States
• Die Index: 24
• UPC: 781810627433

Features

• Durable stainless steel construction for long service life
• Non-butting twin U design for consistent circumferential crimps
• Color-coded black for quick identification
• Compatible with Y35, Y750, PAT750, Y46, and PAT46 tools using PUADP1 adapter
• Made in the USA ensuring quality manufacturing standards
