12T U Die, 1/0 Str CU, Pink, Index 12
SKU: #331894
Part: #U25RT
UPC: 781810627334
12T U Die, 1/0 Str CU, Pink, Index 12
SKU: #331894
Part: #U25RT
UPC: 781810627334
Description

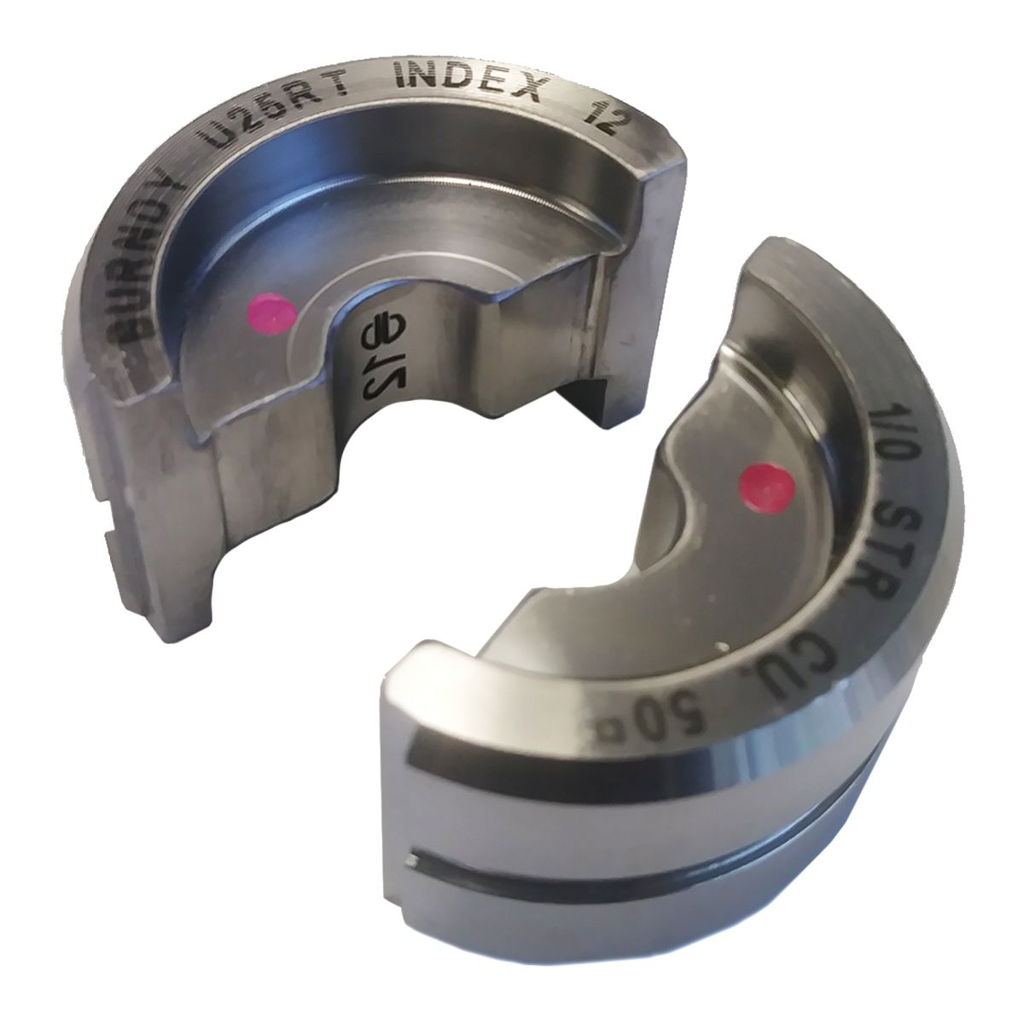

12T U Die, 1/0 Str CU, Pink, Index 12 - Crimping Die for Electrical Applications
The 12T U Die by Burndy is a precision crimping die designed for use with 1/0 stranded copper conductors. Engineered for electrical distributors and switchgear suppliers, it provides reliable crimping performance compatible with Y35, Y750, PAT750, Y46, and PAT46 tools with the PUADP1 adapter. This stainless steel die features a twin U style and circumferential crimp, optimized for wire and cable termination in industrial and commercial lighting solutions.
Specifications
- Application: Crimping
- Material: Stainless Steel
- Color Coding: Pink
- Crimping Range: 1/0 AWG
- Crimp Force Capacity: 12 ton
- Width: 1.00 in (25 mm)
- Weight: 0.45 lb
- Die Index: 12
- Standards: RoHS Compliant (EU RoHS Indicator: Yes)
- Country of Origin: United States
- Manufacturer Part #: U25RT
Features
- Durable stainless steel construction for extended service life
- Twin U style die ensures consistent circumferential crimps
- Color coded pink for easy identification and compatibility
- Designed for use with specific Burndy crimping tools and adapters
- Made in the USA, meeting quality and compliance standards
