12827, Conduit Body – Threaded Aluminum Conduit Body

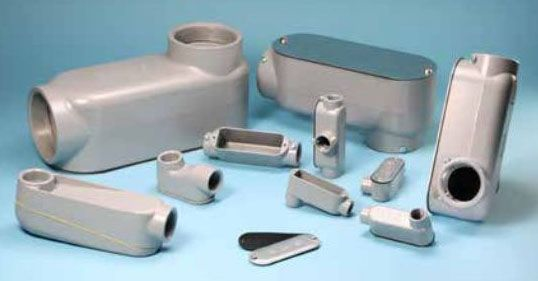

The 12827 conduit body by Mulberry Metal Products is a threaded, assembled conduit body designed for use with rigid conduit or intermediate metal conduit (IMC). It facilitates changes in conduit direction and provides access for wire pulling, splicing, and maintenance. This product is suitable for electrical distributors and switchgear suppliers requiring durable conduit solutions in wire and cable installations.

Specifications

• Material: Electrostatic Powder Coated Die-Cast Aluminum
• Type: Threaded
• Hub Size: 2-1/2 inch
• Configuration: LR
• Internal Volume: 158 cubic inches
• Maximum Wire Size: 3 #300 MCM
• Product Weight: 6.61 lbs
• Installation: Threaded
• Certification: UL Listed, CSA Approved (UL 514A and CSA C22.2 No. 18)
• Manufacturer Part Number: 12827

Features

• Die-cast from high strength, corrosion and weather resistant aluminum alloy
• Pre-assembled with steel cover and neoprene rubber gasket for secure sealing
• Smooth, tapered NPT threaded hubs for quick and reliable installation
• Combination Phillips/slotted nickel-plated screws included
• Flat back design allows easy mounting close to walls
