12807 Conduit Body – Electrical Conduit Solutions

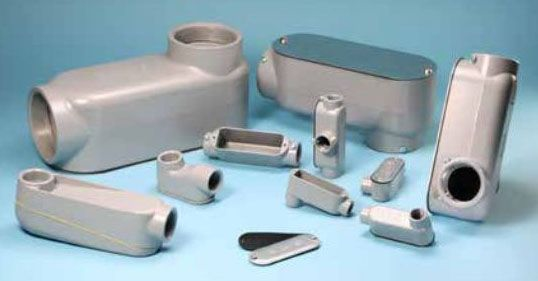

The 12807 Conduit Body by Mulberry Metal Products is a die-cast aluminum conduit body designed for use with rigid conduit and IMC. It facilitates changes in conduit direction and provides access for wire pulling, splicing, or maintenance. This product is suitable for electrical distributors and switchgear suppliers requiring durable conduit components with reliable installation features.

Specifications

• Material: Electrostatic Powder Coated Die-Cast Aluminum
• Installation: Threaded
• Configuration: LB
• Hub Size: 2-1/2 inch
• Internal Volume: 153 cubic inches
• Maximum Wire Size: 3 #300 MCM
• Product Weight: 6.11 lbs
• Standards: UL 514A, CSA C22.2 No. 18
• Certification: UL Listed, CSA Approved
• UPC: 095327128070
• Manufacturer Part #: 12807
• Dimensions: A - 12.80 in., B - 4.50 in., C - 5.30 in.

Features

• Die-cast from high strength, corrosion and weather resistant aluminum alloy
• Pre-assembled with steel cover and neoprene rubber gasket
• Smooth, tapered NPT threaded hubs for quick installation
• Combination Phillips/slotted nickel-plated screws
• Flat back design allows easy mounting close to walls
• Cubic capacity and UL listing clearly marked
