12806, Conduit Body - Aluminum Conduit Body for Electrical Distributor

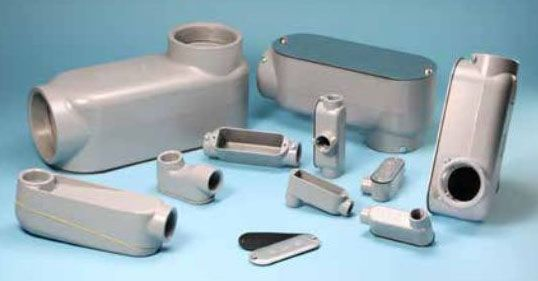

The 12806 Conduit Body by Mulberry Metal Products is a threaded, assembled conduit body designed for use with rigid conduit and intermediate metal conduit (IMC). It is used to change or correct the direction of conduit runs and provides access to conductors for wire pulling, splicing, or maintenance. This product is suitable for electrical distributors and lighting solutions requiring durable wire and cable management components.

Specifications

• Material: Electrostatic Powder Coated Die-Cast Aluminum
• Installation: Threaded
• Hub Size: 2 inch
• Configuration: LB
• Internal Volume: 71.2 cubic inches
• Maximum Wire Size: 3 #4/0 AWG
• Dimensions: Length (A) 10.04 in., Height (B) 3.13 in., Width (C) 4.24 in.
• Product Weight: 3.28 lbs
• Certification: UL Listed, CSA Approved

Features

• Die-cast from high strength, corrosion and weather resistant aluminum alloy
• Pre-assembled with steel cover and neoprene rubber gasket for secure sealing
• Smooth, tapered NPT threaded hubs for easy and reliable installation
• Combination Phillips/slotted nickel plated screws for cover attachment
• Flat back design allows easy mounting close to walls
• UL 514A and CSA C22.2 No. 18 standards compliant
