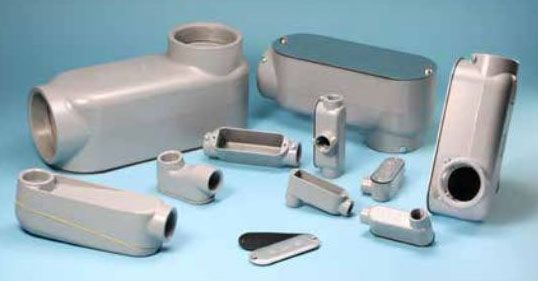

12805, Conduit Body - Threaded Aluminum Conduit Body

The 12805 Conduit Body is a pre-assembled, threaded conduit body designed for use with rigid conduit and intermediate metal conduit (IMC). Manufactured by Mulberry Metal Products, this electrical component is intended to correct or change the direction of conduit runs, providing access for wire pulling, splicing, or maintenance. It is suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring durable conduit fittings.

Specifications

• Material: Electrostatic Powder Coated Die-Cast Aluminum
• Installation: Threaded
• Hub Size: 1-1/2 inch
• Configuration: LB
• Internal Volume: 33.8 cubic inches
• Maximum Wire Size: 3 #1/0 AWG
• Dimensions: Length (A) 7.75 in., Width (B) 2.48 in., Height (C) 3.68 in.
• Product Weight: 1.91 lbs
• Standards: UL 514A and CSA C22.2 No. 18
• Certification: UL Listed, CSA Approved

Features

• Die-cast from high-strength, corrosion and weather-resistant aluminum alloy
• Pre-assembled with steel cover and neoprene rubber gasket for secure sealing
• Smooth, tapered NPT threaded hubs for quick and reliable installation
• Combination Phillips/slotted nickel-plated screws for cover retention
• Flat back design allows easy mounting close to walls
