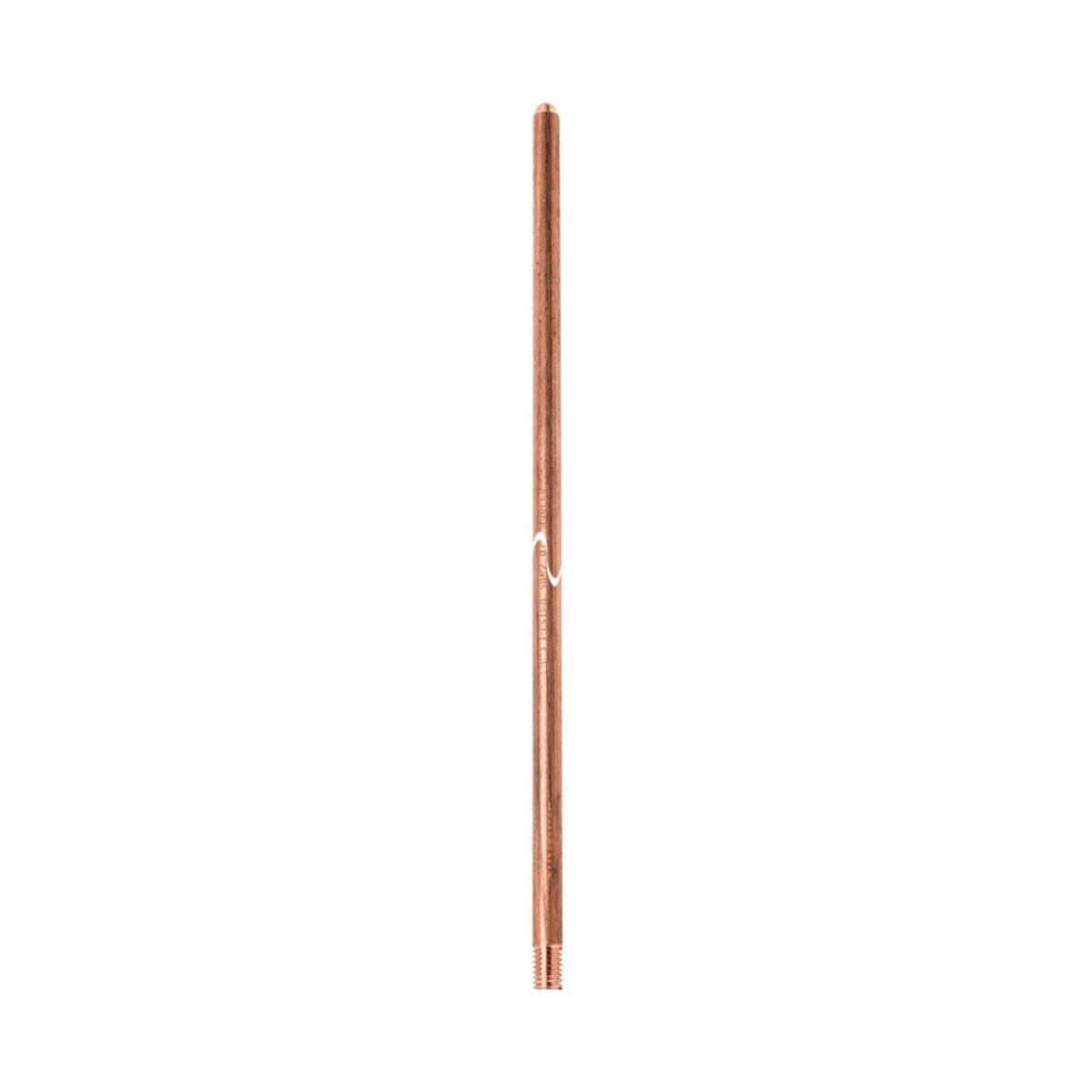

1224CUAT, Air Terminal Lightning Protection

The 1224CUAT Air Terminal is a Class II copper air terminal designed for lightning protection on structures exceeding 75 feet in height. Manufactured by Harger from highly conductive electrolytic tough pitch copper alloy 110, it provides reliable grounding and protection as part of comprehensive lightning protection systems. This product is suitable for use by electrical distributors and lighting solutions providers specializing in lightning protection components.

Specifications

• Material: Copper Alloy 110
• Class: II
• Length: 24 Inches
• Diameter: 1/2 Inch
• Thread Size: 1/2 Inch-13 UNC-2A
• Weight: 1.58 lbs
• Applicable Standards: NFPA 780, UL (Canada and US)
• Application: For use on structures greater than 75 feet in height

Features

• Constructed from electrolytic tough pitch copper with conductivity greater than 99% when annealed
• Tapered tip with rounded point for effective lightning strike capture
• Utilizes standard UNC threads for compatibility and ease of installation
• Compliant with NFPA 780 requirements for air terminal height and support
• Designed to be secured against overturning or displacement through attachment or bracing
• UL Listed for safety and performance
