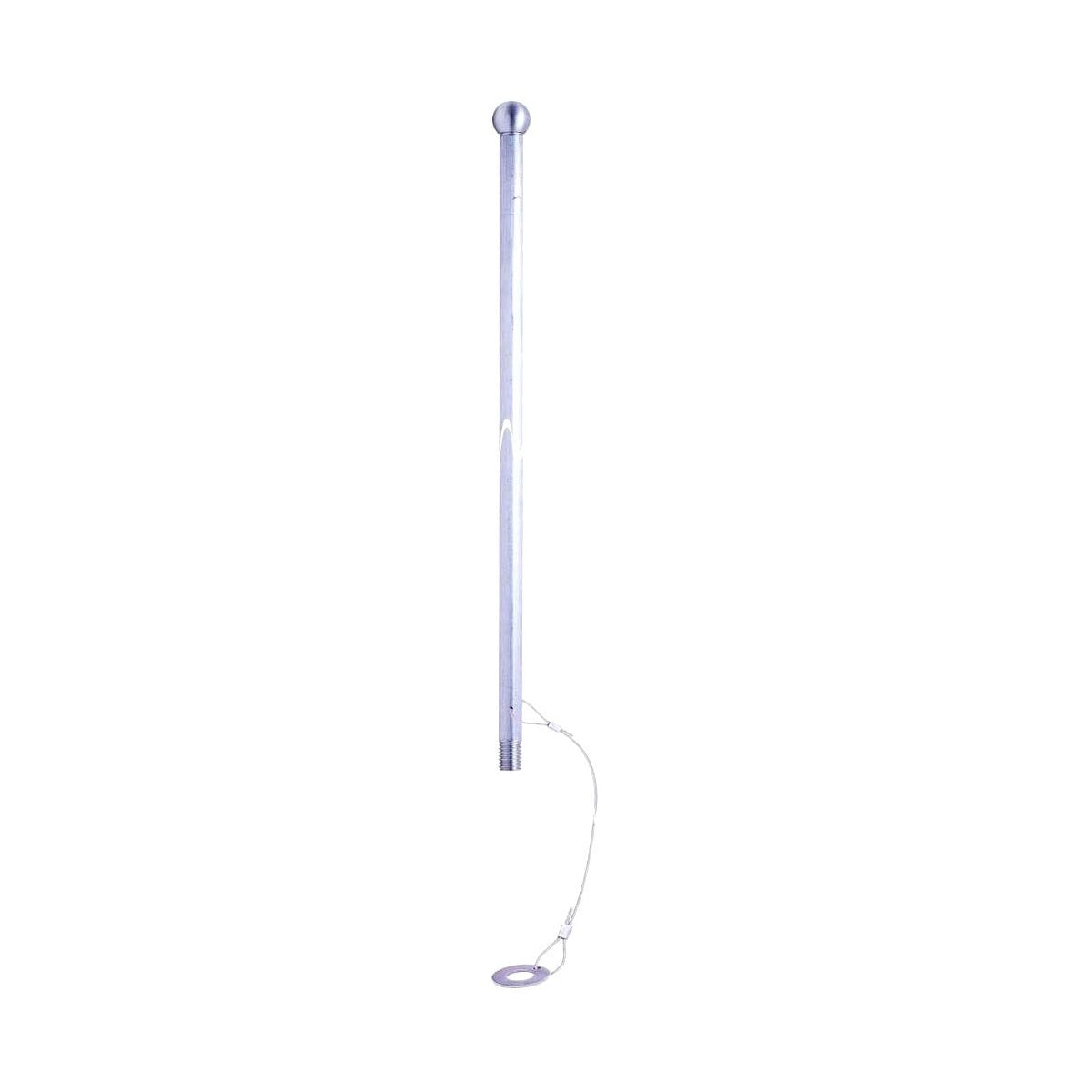

1224ASTAT-WSC36 Air Terminal Safety Tip for Lightning Protection

The 1224ASTAT-WSC36 is a Class I aluminum air terminal safety tip designed for use on structures up to 75 feet in height. Manufactured by Harger, this lightning protection component is engineered to provide reliable grounding and protection against lightning strikes. It is suitable for electrical distributors and lighting solutions requiring effective air terminal components with integrated safety features.

Specifications

• Material: Aluminum
• Diameter: 1/2 Inch
• Length: 24 Inch
• Class: I
• Weight: 0.8 lbs
• Application: For use on structures up to and including 75' in height
• Manufacturer: Harger
• Manufacturer Part #: 1224ASTAT-WSC36
• Applicable Standard: UL (Canada and US)

Features

• Safety tipped with a 3/4" sphered tip to reduce accidental falls
• Attached 36" safety cable prevents the air terminal from falling off the structure
• Utilizes standard UNC threads for secure installation
• Constructed from highly conductive aluminum for effective lightning grounding

Downloads & Links

• Specification/Technical
• Catalog
