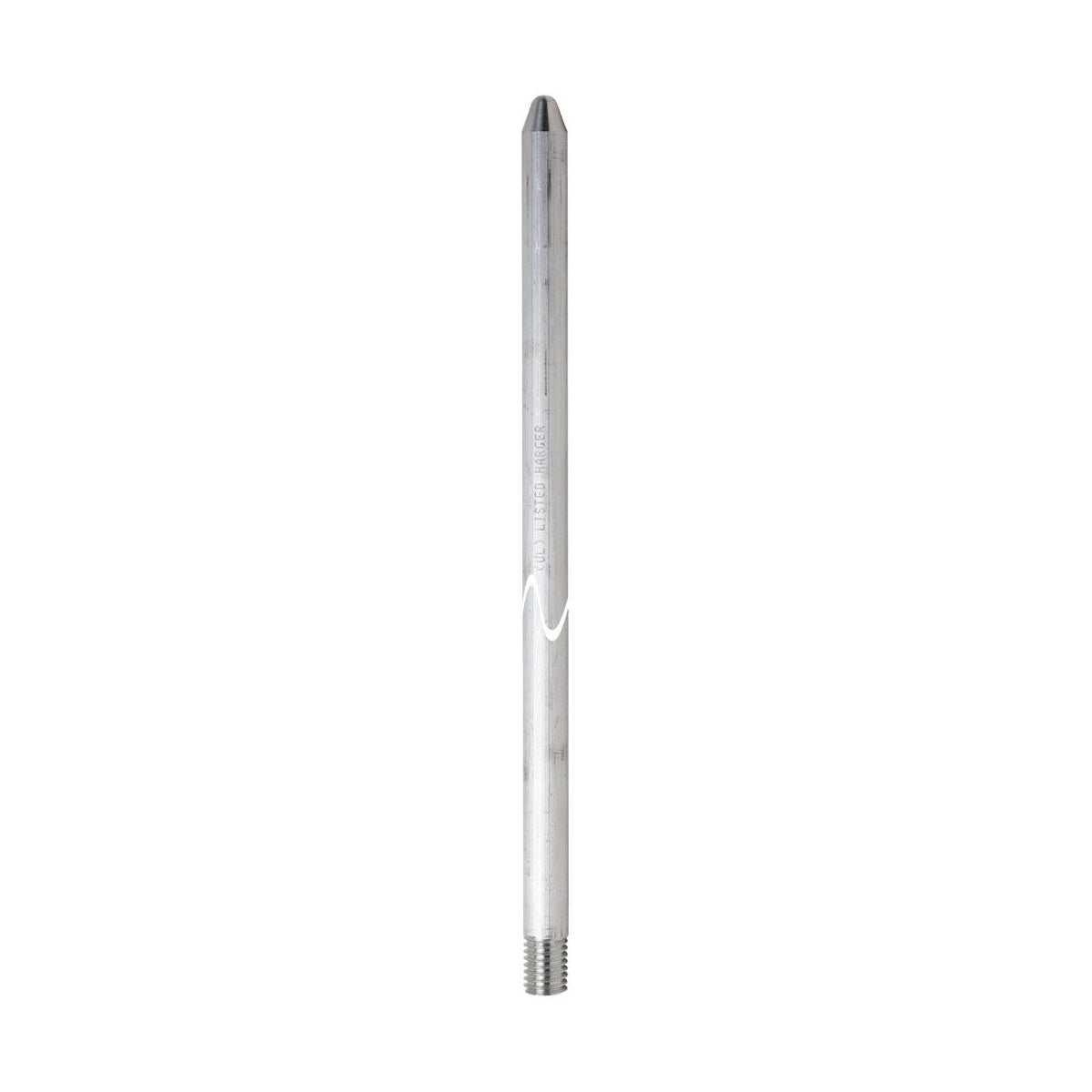

1224ALAT, Air Terminal Lightning Protection

The 1224ALAT Air Terminal by Harger is designed for use on structures up to and including 75 feet in height. This air terminal serves as a critical component in lightning protection systems, providing a highly conductive point to safely intercept lightning strikes. Suitable for electrical distributors and lighting solutions providers, it integrates with wire and cable systems and is compatible with switchgear supplier requirements.

Specifications

• Type: Standard, Tapered Tip with Rounded Point, Class I
• Overall Dimension: 1/2 Inch Diameter x 24 Inch Length
• Thread Size: 1/2 Inch-13 UNC-2A
• Material: Highly Conductive Aluminum
• Weight: 0.47 lbs
• Applicable Standards: NFPA 780, UL (Canada and US)
• Width: 0.5 in
• Height: 0.5 in
• Length: 24 in
• Manufacturer: Harger
• Manufacturer Part #: 1224ALAT
• Application: For use on structures up to and including 75' in height

Features

• Constructed from highly conductive aluminum for efficient lightning strike interception
• Standard tapered tip with rounded point design for optimal performance
• Threaded base (1/2 Inch-13 UNC-2A) for secure installation
• Meets NFPA 780 and UL standards for safety and reliability
• Lightweight design facilitates easy handling and installation
