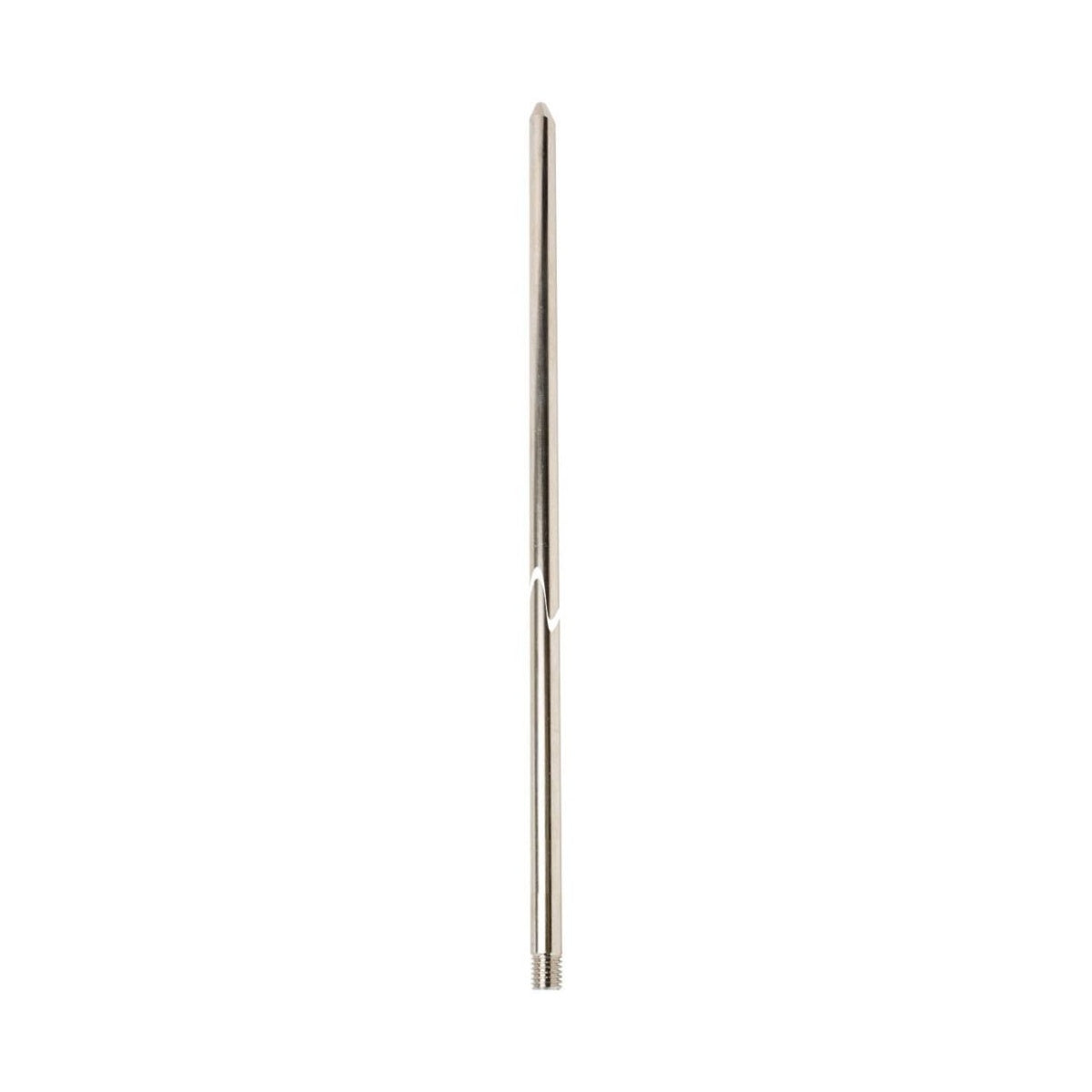

1218CUATN Air Terminal Lightning Protection

The 1218CUATN Air Terminal is a Class II lightning protection device designed for use on structures greater than 75 feet in height. Manufactured by Harger, this air terminal is constructed from nickel plated electrolytic tough pitch copper alloy 110, providing enhanced corrosion resistance and reliable conductivity. It is suitable for electrical distributors and switchgear suppliers requiring durable lightning protection components compliant with NFPA 780 standards for wire and cable grounding and lightning protection systems.

Specifications

• Material: Nickel Plated Electrolytic Tough Pitch Copper Alloy 110
• Class: II
• Diameter: 0.5 in
• Length: 18 in
• Weight: 1.16 lbs
• Application: For use on structures greater than 75' in height
• Manufacturer: Harger
• Manufacturer Part #: 1218CUATN
• Standards: NFPA 780, UL Listed (Canada and US)
• Thread Type: Standard UNC threads

Features

• Tapered tip with rounded point for effective lightning strike interception
• Nickel plating for enhanced corrosion protection in outdoor environments
• High conductivity greater than 99% when annealed
• Designed to be secured against overturning or displacement according to NFPA 780
• Compatible with extension rods and couplers for longer air terminal configurations
