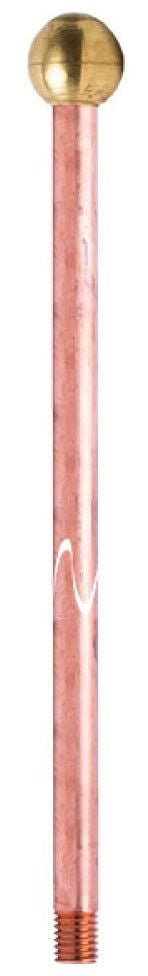

1218CSTAT Air Terminal – Copper Safety Tipped Air Terminal

The 1218CSTAT is a Class II copper safety tipped air terminal designed for lightning protection on structures greater than 75 feet in height. Manufactured by Harger, it is constructed from electrolytic tough pitch copper alloy 110 and features a rounded safety tip to reduce injury risk. This air terminal is suitable for use by electrical distributors and switchgear suppliers as part of comprehensive lightning protection and grounding systems.

Specifications

• Material: Copper (Electrolytic tough pitch copper alloy 110)
• Length: 18 inches
• Diameter: 1/2 inch
• Tip Diameter: 3/4 inch (rounded safety tip)
• Class: II
• Weight: 1.26 lbs
• Thread Type: Standard UNC threads
• Application: For use on structures greater than 75 feet in height
• Manufacturer: Harger
• Manufacturer Part Number: 1218CSTAT
• UL Listed (Canada and US)

Features

• Rounded 3/4 inch diameter safety tip minimizes personnel injuries from accidental falls
• Constructed from durable copper alloy for reliable lightning conduction
• Compatible with flexible adapters for enhanced installation safety
• Standard UNC threaded connection for easy mounting
