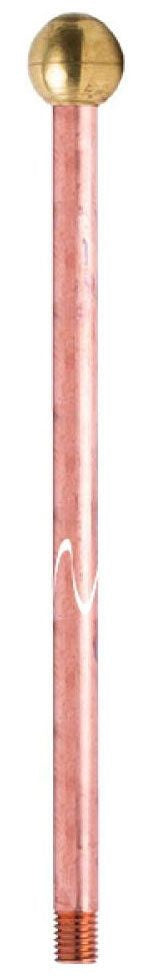

1216CSTAT Air Terminal - Copper Safety Tipped Lightning Protection

The 1216CSTAT is a copper safety tipped air terminal designed for lightning protection on structures greater than 75 feet in height. Manufactured by Harger, this Class II air terminal features a rounded safety tip to minimize personnel injuries and is suitable for use with flexible adapters. It is a reliable component for electrical distributors and switchgear suppliers providing lighting solutions and grounding systems.

Specifications

• Material: Copper (Electrolytic Tough Pitch Copper Alloy 110)
• Diameter: 1/2 Inch
• Length: 16 Inches
• Tip Diameter: 3/4 Inch Rounded Safety Tip
• Class: II
• Weight: 1.07 lbs
• Thread Type: Standard UNC Threads
• Applicable Standards: UL Listed (Canada and US)

Features

• Safety tipped with a 3/4" sphered tip to reduce accidental falls and enhance personnel safety
• Designed for use on tall structures, ensuring effective lightning protection
• Compatible with flexible adapters for added safety and installation flexibility
• Constructed from durable copper alloy for reliable conductivity and corrosion resistance
