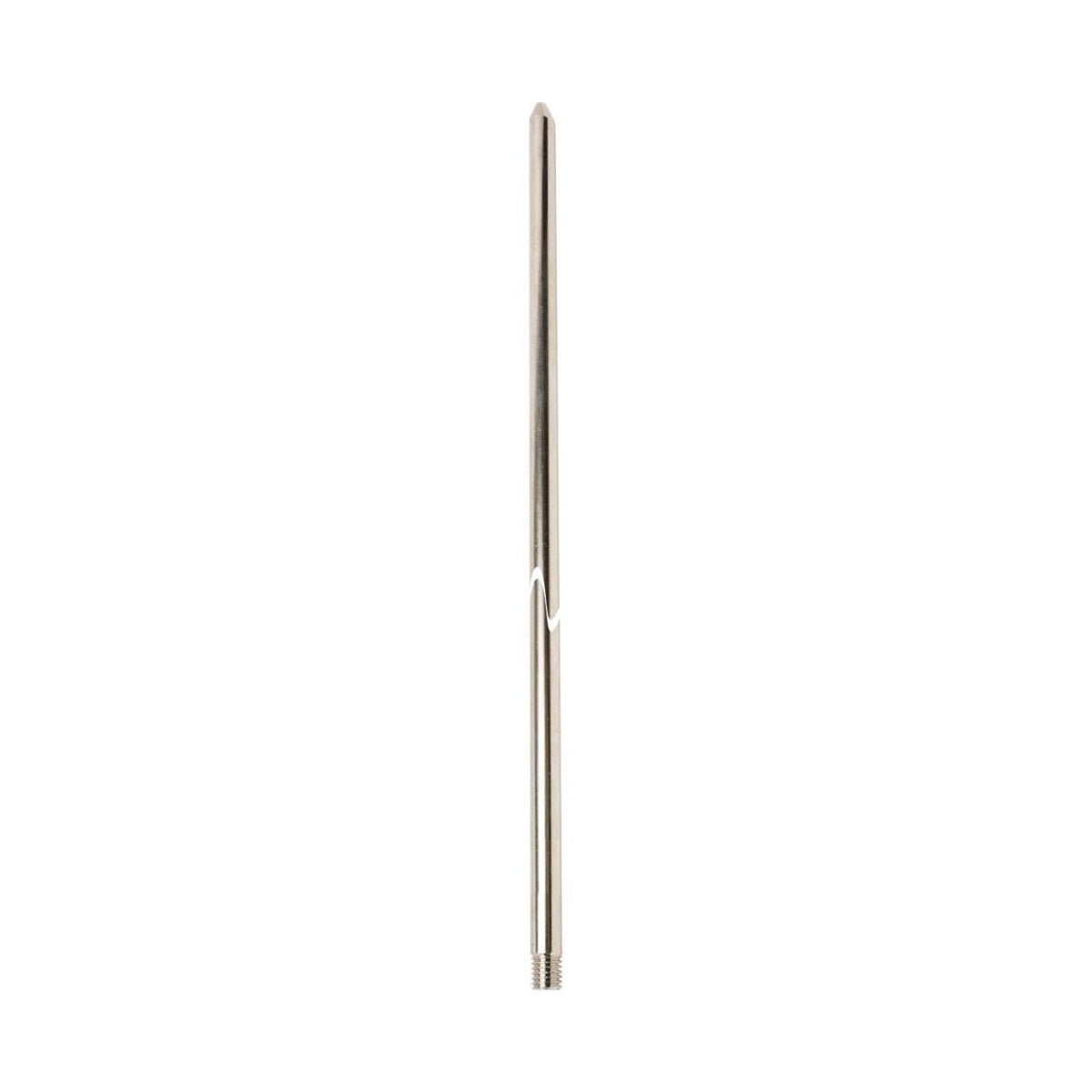

1212CUATN Air Terminal Lightning Protection

The 1212CUATN is a Class II nickel plated air terminal designed for lightning protection on structures greater than 75 feet in height. Manufactured by Harger, this air terminal is made from electrolytic tough pitch copper alloy 110 with a nickel plating for enhanced corrosion resistance. It features a tapered tip with a rounded point and utilizes standard UNC threads for secure attachment. This product is suitable for applications requiring reliable lightning protection components, distributed by electrical distributors and switchgear suppliers specializing in grounding and lightning protection systems.

Specifications

• Type: Tapered Tip with Rounded Point, Class II
• Overall Dimension: 1/2 Inch Diameter x 12 Inch Length
• Material: Nickel Plated 110 Copper Alloy
• Weight: 0.79 lbs
• Application: For use on structures greater than 75' in height
• Standards: NFPA 780, UL (Canada and US) Listed
• Manufacturer: Harger
• Manufacturer Part #: 1212CUATN

Features

• Nickel plating provides enhanced corrosion protection
• Manufactured from highly conductive electrolytic tough pitch copper alloy 110
• Conductivity greater than 99% when annealed
• Standard UNC threads for easy and secure installation
• Complies with NFPA 780 air terminal height and support requirements

Downloads & Links

• Catalog
• Specification/Technical
