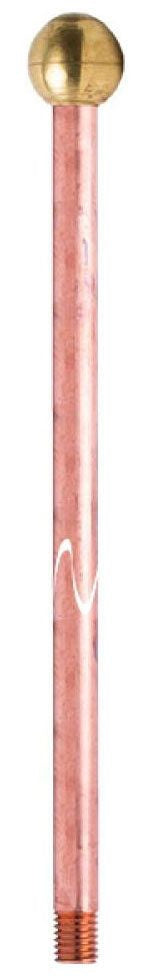

1212CSTAT, Air Terminal - Copper Safety Tipped Air Terminal

The 1212CSTAT Air Terminal is a Class II copper safety tipped air terminal designed for lightning protection on structures greater than 75 feet in height. Manufactured by Harger, this air terminal features a rounded 3/4-inch diameter safety tip to minimize personnel injuries caused by accidental falls. It is constructed from electrolytic tough pitch copper alloy 110 and utilizes standard UNC threads, making it suitable for use with flexible adapters in electrical distributor and lighting solutions applications.

Specifications

• Material: Copper (Electrolytic tough pitch copper alloy 110)
• Class: II
• Overall Dimensions: 1/2 inch Diameter x 12 inch Length
• Tip Diameter: 3/4 inch
• Weight: 1.0 lb
• Thread Type: Standard UNC threads
• Application: For use on structures greater than 75 feet in height
• Certification: UL Listed (Canada and US)

Features

• Rounded safety tip reduces risk of injury from accidental falls
• Compatible with flexible adapters for enhanced installation safety
• Durable copper construction ensures reliable grounding and lightning protection
• Standard sizing and threading for ease of integration with switchgear and wire and cable systems
