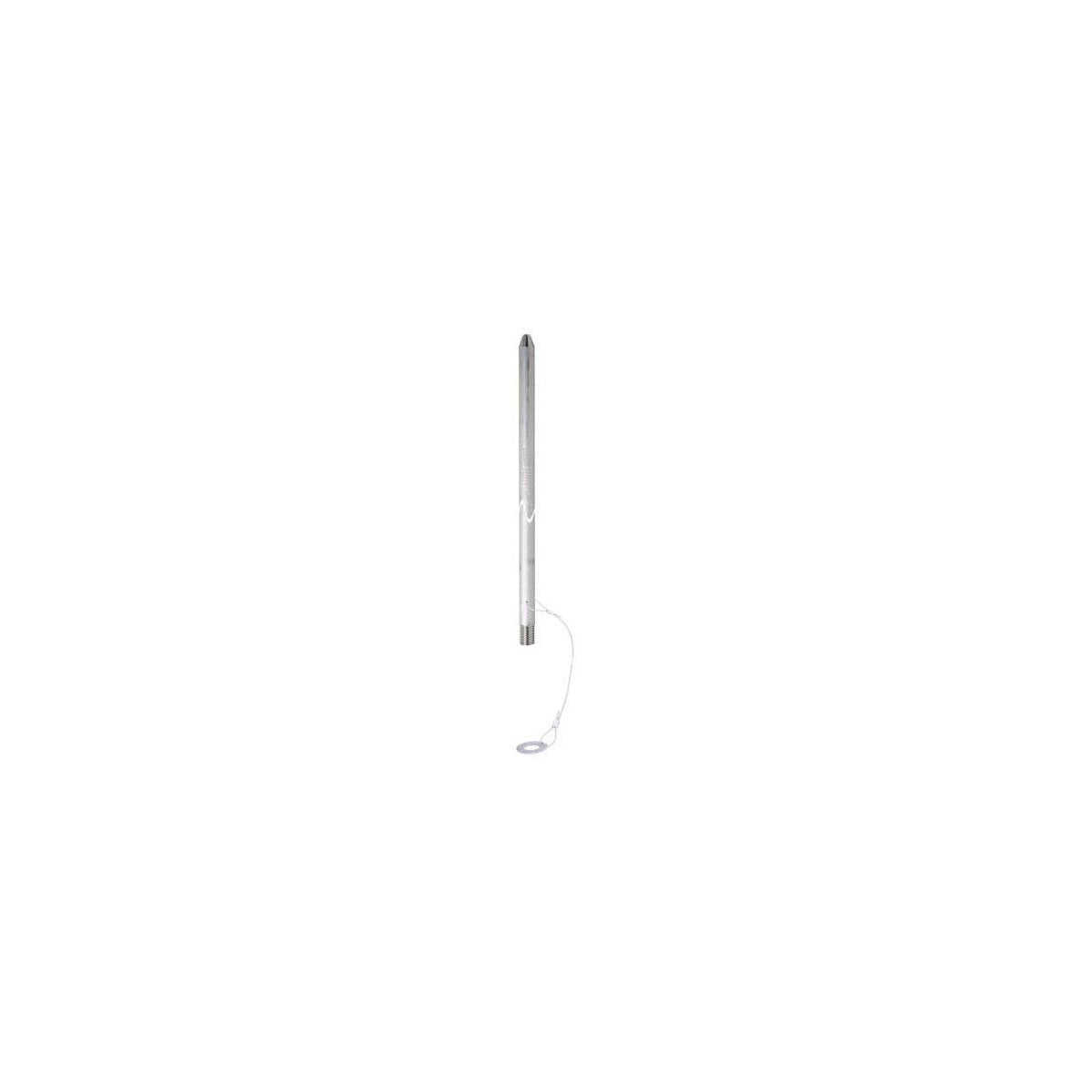

1212ALAT-WSC36 Air Terminal Lightning Protection

The 1212ALAT-WSC36 Air Terminal is designed for use on structures greater than 75 feet in height, providing reliable lightning protection. Manufactured by Harger, this aluminum air terminal is a key component in lightning protection systems, suitable for electrical distributors and switchgear suppliers requiring durable and UL-listed components. It includes a 36-inch stainless steel safety cable and flat stainless steel washer for secure installation and safety compliance.

Specifications

• Material: Aluminum
• Diameter: 1/2 Inch
• Length: 12 Inch
• Thread Size: 1/2 Inch-13 UNC-2A
• Class: I
• Product Weight: 0.34 lbs
• Includes: 36 Inch Stainless Steel Safety Cable, Flat Stainless Steel Washer
• Applicable Standard: UL (Canada and US)

Features

• Safety cable prevents air terminal from falling off structure if detached
• UL listed for Canada and US compliance
• Compact design with 1/2 inch diameter for easy integration
• Durable aluminum construction suitable for outdoor lightning protection
