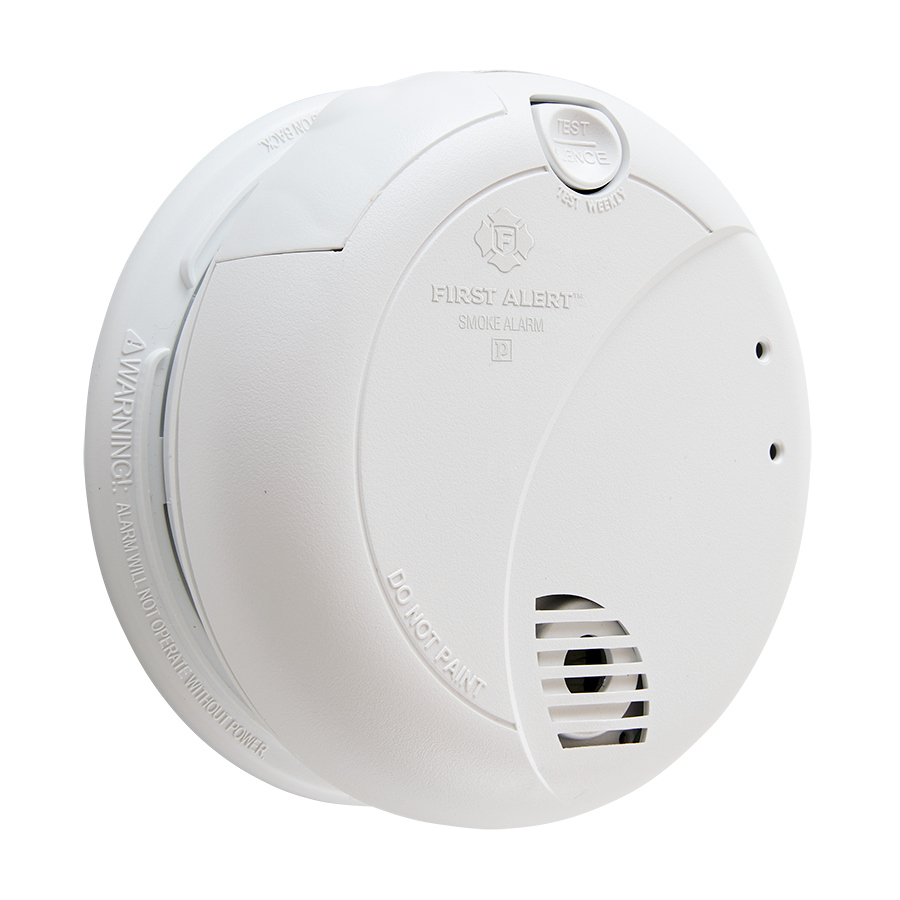

120V AC/DC Photo Smoke Alarm – Photoelectric Smoke Detector

The BRK 120V AC/DC Photo Smoke Alarm model 7010B is designed for residential and institutional applications, including sleeping rooms in hospitals, hotels, motels, dormitories, and multi-family dwellings. This hardwired smoke alarm with battery back-up meets code requirements where photoelectric smoke sensors are mandated. It is suitable for electrical distributors and lighting solutions providers seeking reliable smoke detection devices compatible with wire and cable systems and switchgear installations.

Specifications

• Operating Voltage: 120V AC 60Hz with 9V battery backup
• Alarm Dimensions: 5.0‚Äù Diameter x 2.1‚Äù Height
• Weight: 8.4 oz
• Audio Alarm: 85 dB at 10 feet
• Temperature Range: 40¬∞F (4¬∞C) to 100¬∞F (38¬∞C)
• Humidity Range: 10% to 95% relative humidity (RH)
• Interconnections: Up to 18 units (maximum 12 smoke alarms)
• Smoke Sensor: Photoelectric
• Listing: UL217 Standard
• Color: White

Features

• Photoelectric smoke sensing chamber with Optipath 360 technology for 360-degree direct access
• 9V battery backup ensures operation during power outages
• Silence feature temporarily silences nuisance alarms
• Latching alarm indicator identifies the unit that initiated the alarm
• Quick-connect wiring harness for easy and cost-effective installation
• Gasketless base and mounting bracket allow secure, true alignment over a wide rotation range
• Two locking features provide tamper resistance by locking battery drawer and/or alarm to base, ideal for apartments, dormitories, and hotels
• Visual LED indicators for AC power (constant green), DC power (intermittent red), local alarm (rapid red flashing), and remote alarm
• Full function test button simulates smoke condition to verify all alarm functions

Downloads & Links

• Spec Sheet
• Architect and Engineering Specs
• Listing Card
• User Manuals - English Version (Original as in Box)
