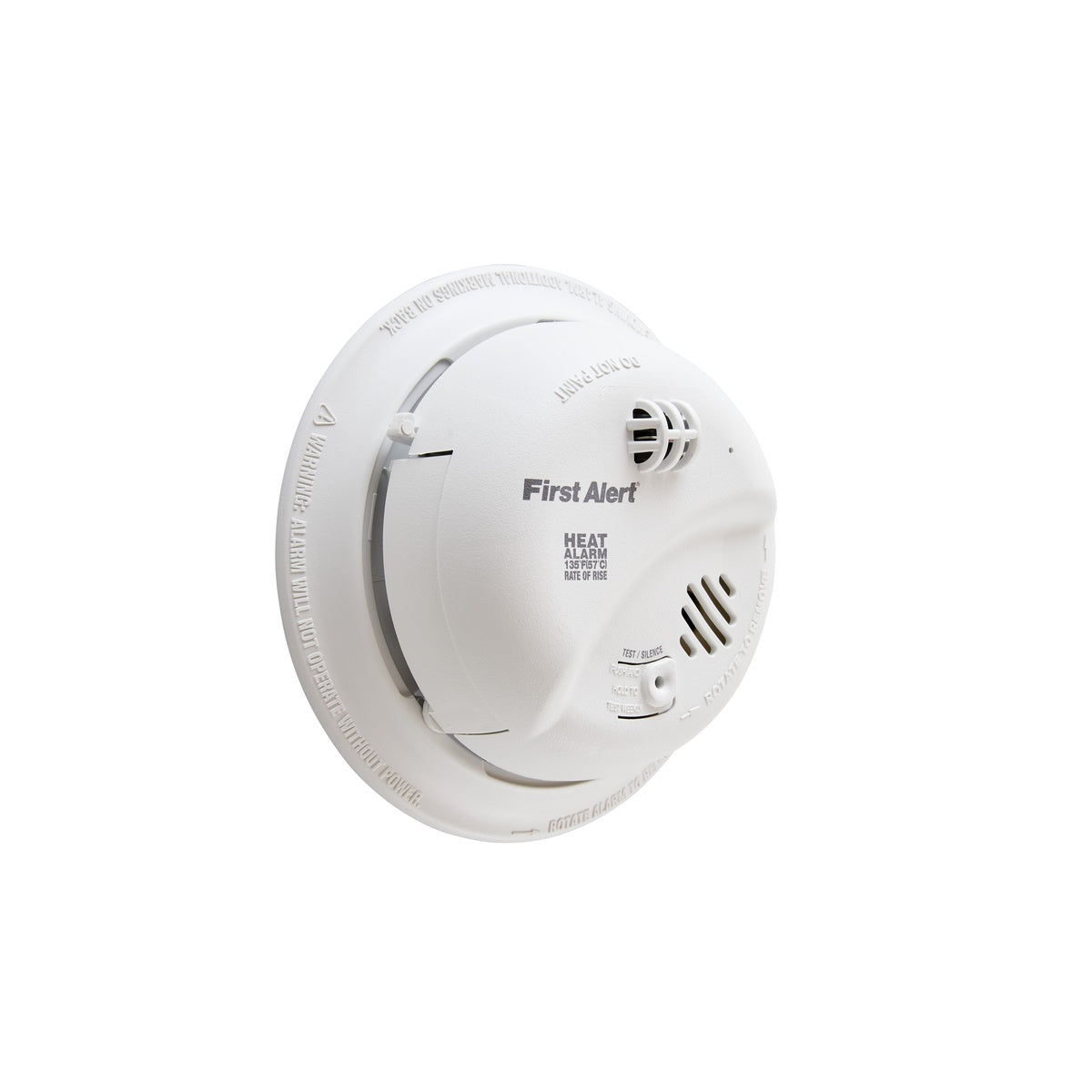

120V AC/DC 135F w/Rate-of-Rise Heat Alarm – Residential Heat Alarm

The 120V AC/DC 135F w/Rate-of-Rise Heat Alarm by BRK is designed for residential fire safety applications, offering advanced rate-of-rise technology typically found in commercial and industrial alarms at an economical cost. This heat alarm is intended to supplement smoke alarms in areas where smoke detectors are unsuitable, such as garages, kitchens, utility rooms, and attics. It provides early warning of fire by detecting a fixed temperature of 135°F or a rapid increase in temperature, making it a reliable choice for electrical distributors and lighting solutions providers focusing on wire and cable safety and switchgear supplier networks.

Specifications

• Voltage: 120V AC/DC
• Temperature Rating: 135¬∞F (57¬∞C) Fixed
• Rate-of-Rise Detection: 15¬∞F (8.3¬∞C) per minute
• Color: White
• Product Weight: 0.67 lbs (0.6727 lbs)
• Manufacturer Part #: HD6135FB
• Audible Alarm: 85 dB
• Power Source: Hardwired with battery backup
• Spacing: Maximum 50 ft apart on smooth ceilings
• Maximum Distance to Wall or Partition: 25 ft

Features

• Advanced rate-of-rise technology for faster fire detection prior to reaching fixed temperature
• Supplemental heat alarm designed for use in areas unsuitable for smoke alarms
• Interconnectable with compatible First Alert and BRK smoke, heat, and CO alarms for enhanced safety
• Battery backup ensures operation during power outages
• Test/silence button for easy alarm testing and temporary silencing
• Locking features to prevent unauthorized removal of battery or alarm unit
• Complies with UL Standard 539 and FCC Part 15 Class B digital device requirements
• Designed for residential use only; not suitable for marine, RV, or commercial applications
