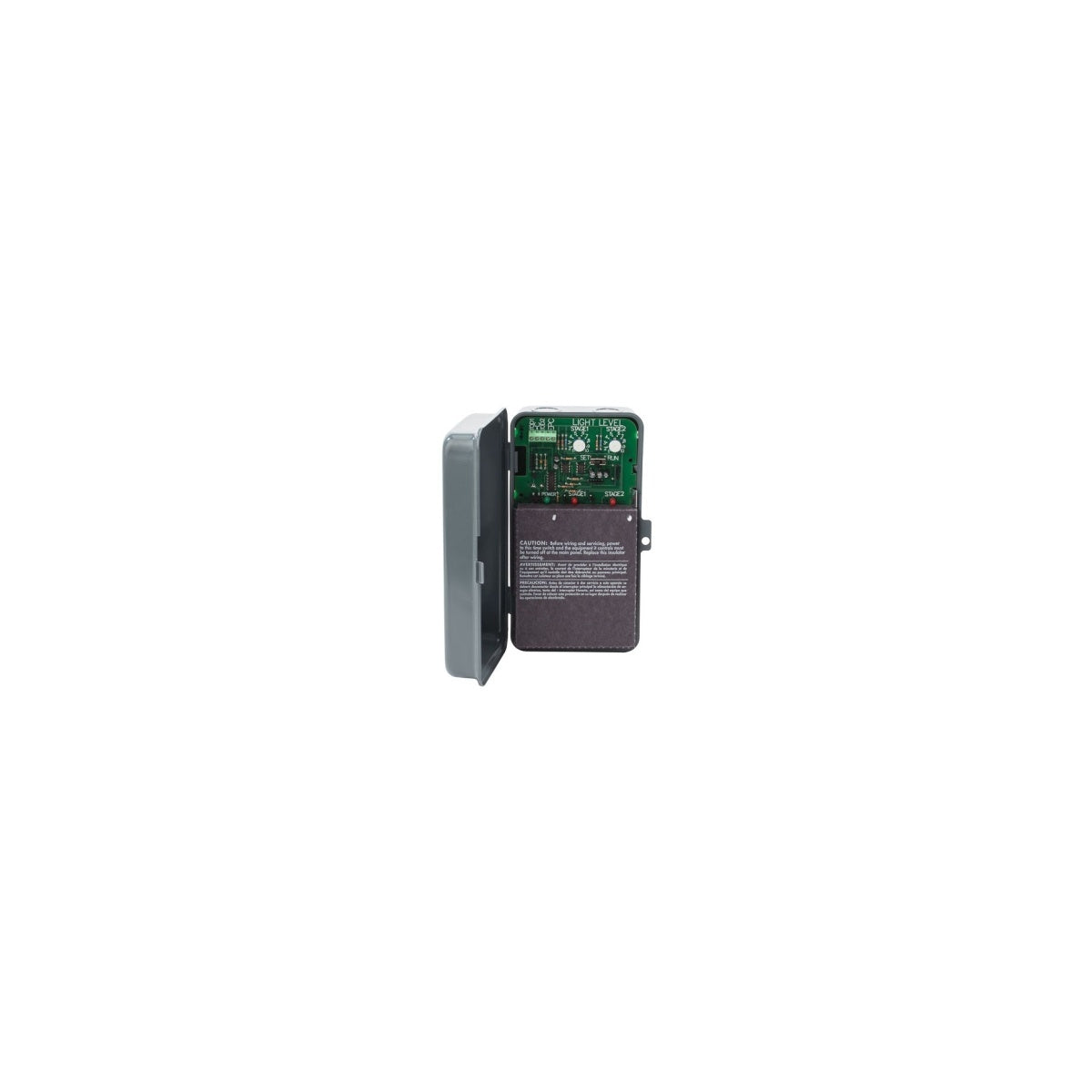

120/240/277V 20A SPDT Outdoor Lighting Controller by NSI Industries

The 120/240/277V 20A SPDT Outdoor Lighting Controller (Model LC200) from NSI Industries is designed for precise control of two separate outdoor lighting zones. Ideal for electrical distributors and switchgear suppliers, this controller integrates an electronic light sensor to manage lighting circuits based on ambient light levels. It is well suited for applications such as convenience stores, parking structures, large canopies, and building perimeters, providing efficient lighting solutions for varied outdoor environments.

Specifications

• Input Voltage: 120/240/277 VAC, 50/60 Hz
• Contact Rating: 20A Resistive at 120/240 VAC, 12A at 277 VAC
• Number of Poles: 1
• Action: SPDT (Single Pole Double Throw)
• Mounting: Screw Mount
• Enclosure: NEMA 1 Metal Indoor with Lockable Hasp
• Operating Temperature: -40 to +140 °F
• Dimensions (L x W x H): 9.7 in x 5.85 in x 4.3 in
• Power Consumption: 5 VA Max
• Initiation: Contact
• Base: Screw
• UPC: 786261821119

Features

• Dual outputs with independent turn-ON light level adjustment from 2 to 100 footcandles for two lighting zones
• Includes a single electronic light sensor (Model EPC-1) that can be mounted up to 1000 feet from the controller
• Supports two independent Time-of-Day inputs for remote override via dry-contact closure
• Built-in 30-second delay on start-up to prevent false triggering from transient light sources such as lightning or headlights
• Power-on status indicator (green LED) and load status indicators (red LEDs) for each channel
• Designed for use with resistive, ballast, tungsten, pilot duty, and electronic ballast (LED) lighting loads
• Listed UL916 compliant for lighting control equipment
