12 watt LED Direct Wire Downlight - LED Lighting Solutions

This 12 watt LED direct wire downlight by Satco is designed for indoor ceiling applications, providing efficient and reliable lighting for commercial and residential spaces. Suitable for electrical distributors and switchgear suppliers, it offers a warm white color temperature and dimmable functionality, making it adaptable to various lighting needs. The integrated remote driver and edge-lit design optimize installation and performance.

Specifications

• Wattage: 12W
• Voltage: 120V
• Lumen Output: 850 lumens
• Color Temperature: 3000 kelvins (Warm White)
• Beam Angle: 108¬∞
• CRI: 90
• Rated Life: 50,000 hours
• Dimmable: Yes
• Fixture Type: Round
• Dimensions: 6.75 in. diameter x 0.94 in. height
• Material: Aluminum
• Lens Material: Poly Methyl Methacrylate
• Lens Color: Frost
• Operating Temperature: -20¬∞C to +45¬∞C
• Indoor/Outdoor Use: Indoor
• Finish: White
• Weight: 1.12 lbs
• Incandescent Equivalent: 75 watts
• Safety Listing: cETLus
• UL Application: Ceiling
• Energy Star Certified: Yes
• RoHS Compliant: Yes
• FCC Compliant: Yes
• Location Rating: Wet
• Manufacturer Part #: S11603
• Country of Origin: China

Features

• Integrated junction box for direct wire installation
• Edge-lit design for uniform light distribution

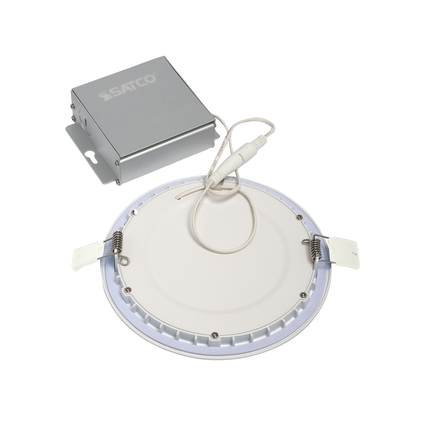

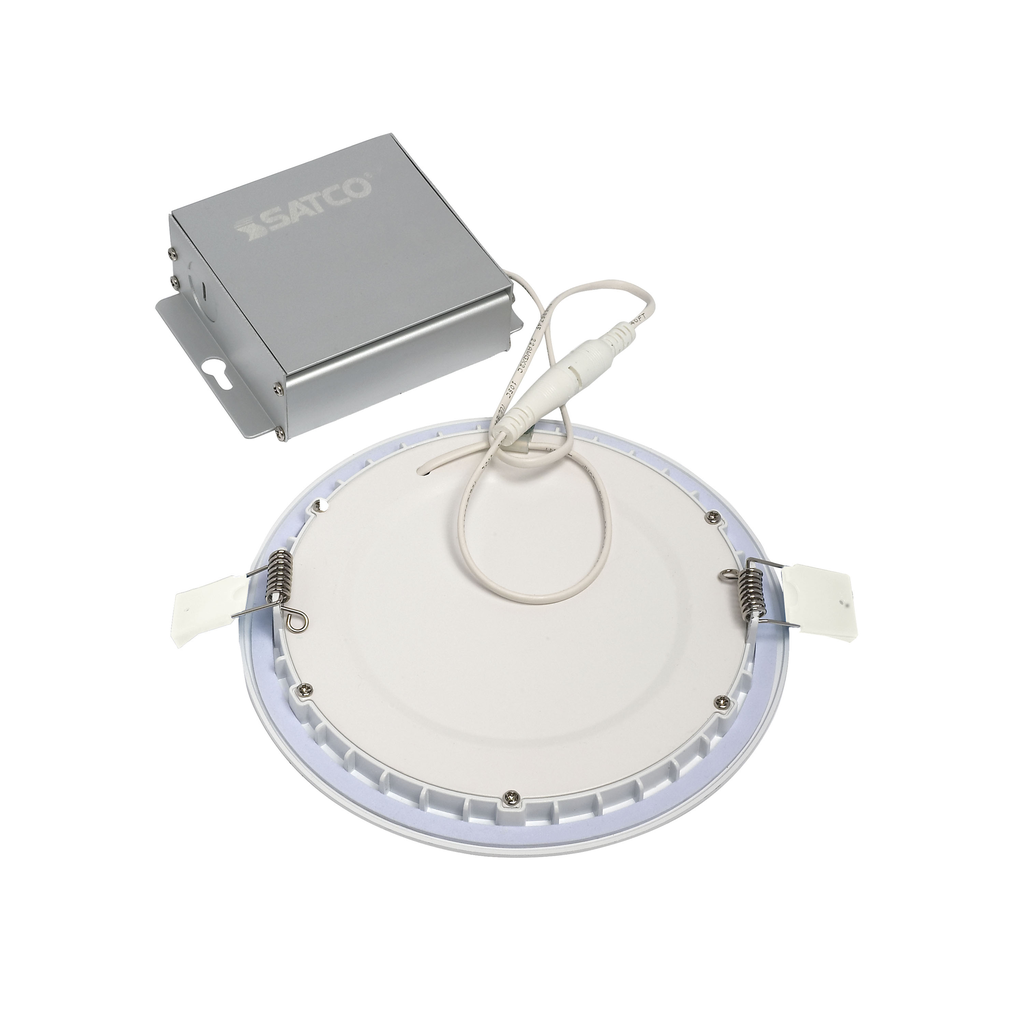

• Remote driver for simplified wiring and maintenance
• High color rendering index (CRI 90) for accurate color representation
• Compatible with dimming controls for adjustable lighting levels
• Energy-efficient LED technology reducing power consumption
• Long rated life of 50,000 hours minimizes replacement frequency
• Complies with California Title 24 energy efficiency standards
• Wet location rated for versatile indoor applications
