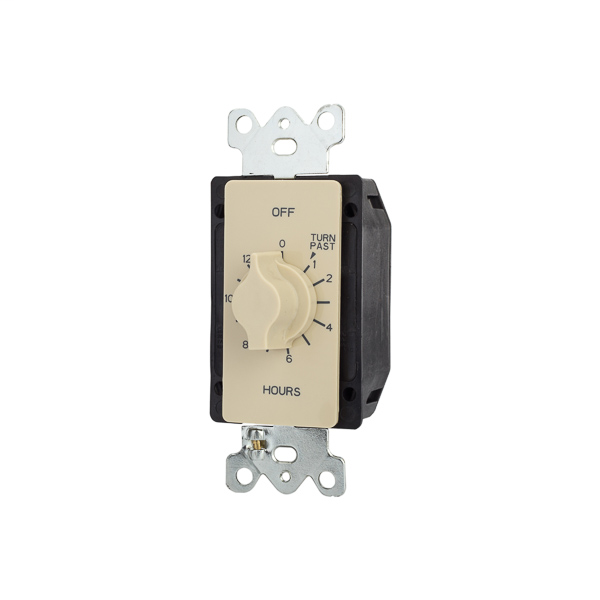

12 Hour Timer 125-277V SPDT Ivory - Springwound In-Wall Timer

This 12 Hour Timer by NSI Industries is a springwound auto-off in-wall timer designed for controlling electrical loads in residential and commercial applications. It is suitable for use with whole house fans, indoor and outdoor lighting, bathroom fans and lights, and self-storage facilities. The timer operates on 125-277 VAC at 50-60 Hz and features SPDT (Single Pole Double Throw) contacts, making it adaptable for various wiring configurations. Its compact design fits a single gang wall plate, making it an ideal component for electrical distributors and switchgear suppliers focusing on lighting solutions and wire and cable installations.

Specifications

• Application: NSI
• Action: SPDT
• Base: Wall Plate
• Mounting: Single Gang Wall Plate
• Enclosure: Single Gang Wall Plate
• Frequency: 50-60 hertz
• Contact Rating: 125-250-277 VAC
• Number of Poles: 1
• Frequency Rating: 50-60 Hz
• Operating Temperature: 32-122 °F
• Environmental Conditions: 32-122 °F
• Product Weight: 0.4000 lbs
• Manufacturer Part #: A512H

Features

• Variable Timing: Twist knob for time ON setting up to 12 hours
• Springwound Auto-Off Mechanism
• Easy Set: No adjustments required, just wire and go
• Easy Wiring: No neutral wire required, suitable for retrofit installations
• Switch Type: SPDT "2 in 1" contacts with SPST wiring option
• Color: Ivory
• Fits standard or decorator style wall plates (wall plate not included)
• Suitable for use as single or in multi-gang electrical boxes without de-rating

Downloads & Links

• Spec Sheet
• Catalog Page
• Operating Manual
• Product Advertisement
• LI-678_revF_SpringwoundTimer_110317.pdf
