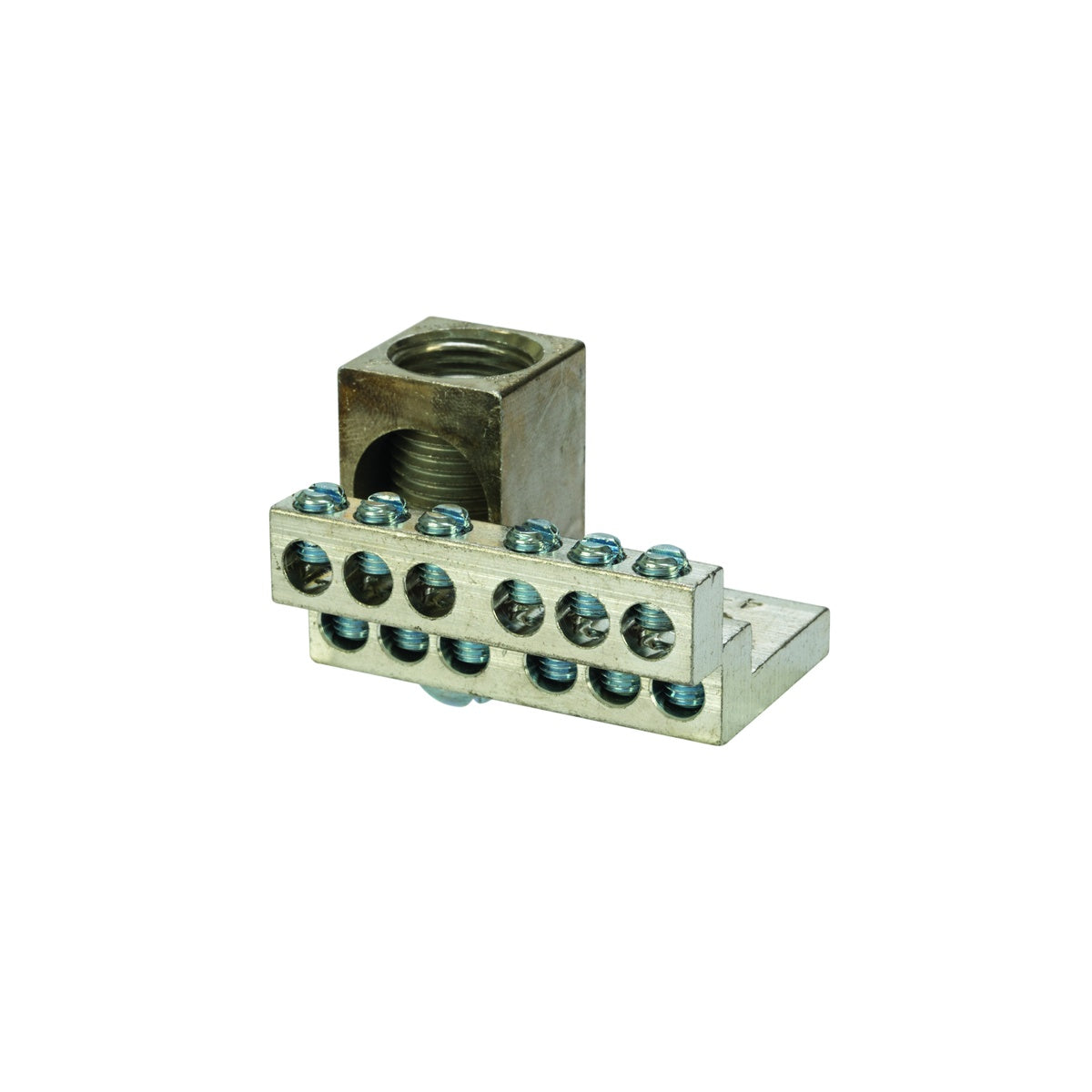

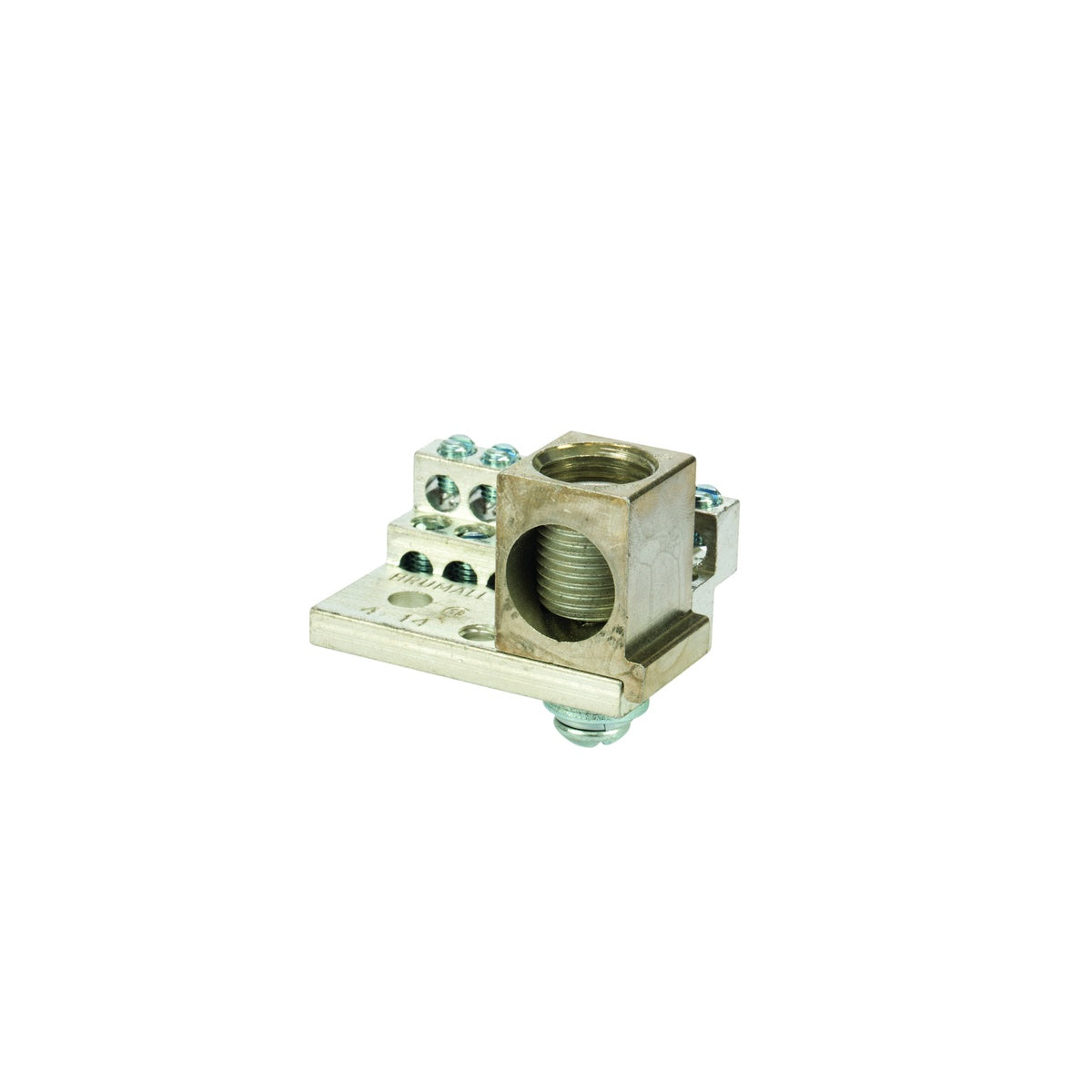

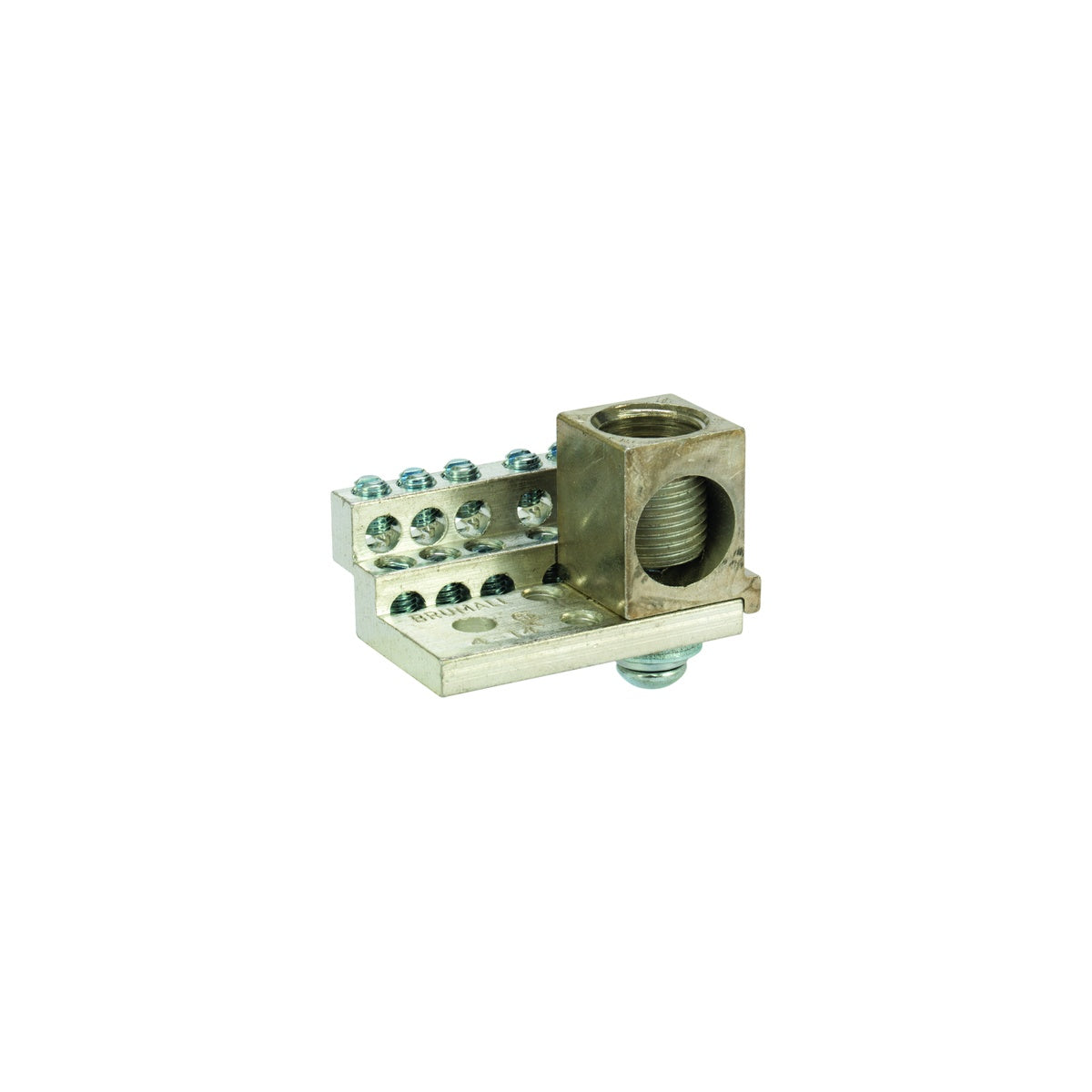

12 Crct Stked Neut W Main – Stacked Neutral Bar for Electrical Wire Termination

This 12 Circuit Stacked Neutral Bar with Main Lug is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and switchgear suppliers. It supports 225A current and accommodates wire and cable sizes from 4-14 AWG for circuits and 350 MCM to 6 AWG for the main lug. Manufactured by NSI Industries, this component is made from high-strength 6061T-6 aluminum alloy, ensuring durability and reliable performance in lighting solutions and electrical distribution systems.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 1012M
• Application: Wire Termination
• Current Rating: 225A
• Conductor Size: (12) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
• Material: 6061T-6 Aluminum Alloy
• Conductor Material: Aluminum
• Dimensions: Length 2.193 in, Height 1.375 in, Width 1.5 in
• Weight: 0.1880 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Stacked neutral assembly design minimizes width for compact installation
• One-piece construction for superior mechanical performance
• Supports 12 circuits with wire holes stacked for space efficiency
• Includes a 350 MCM main lug for high-capacity main connections
• Constructed from high strength 6061T-6 aluminum alloy for durability
